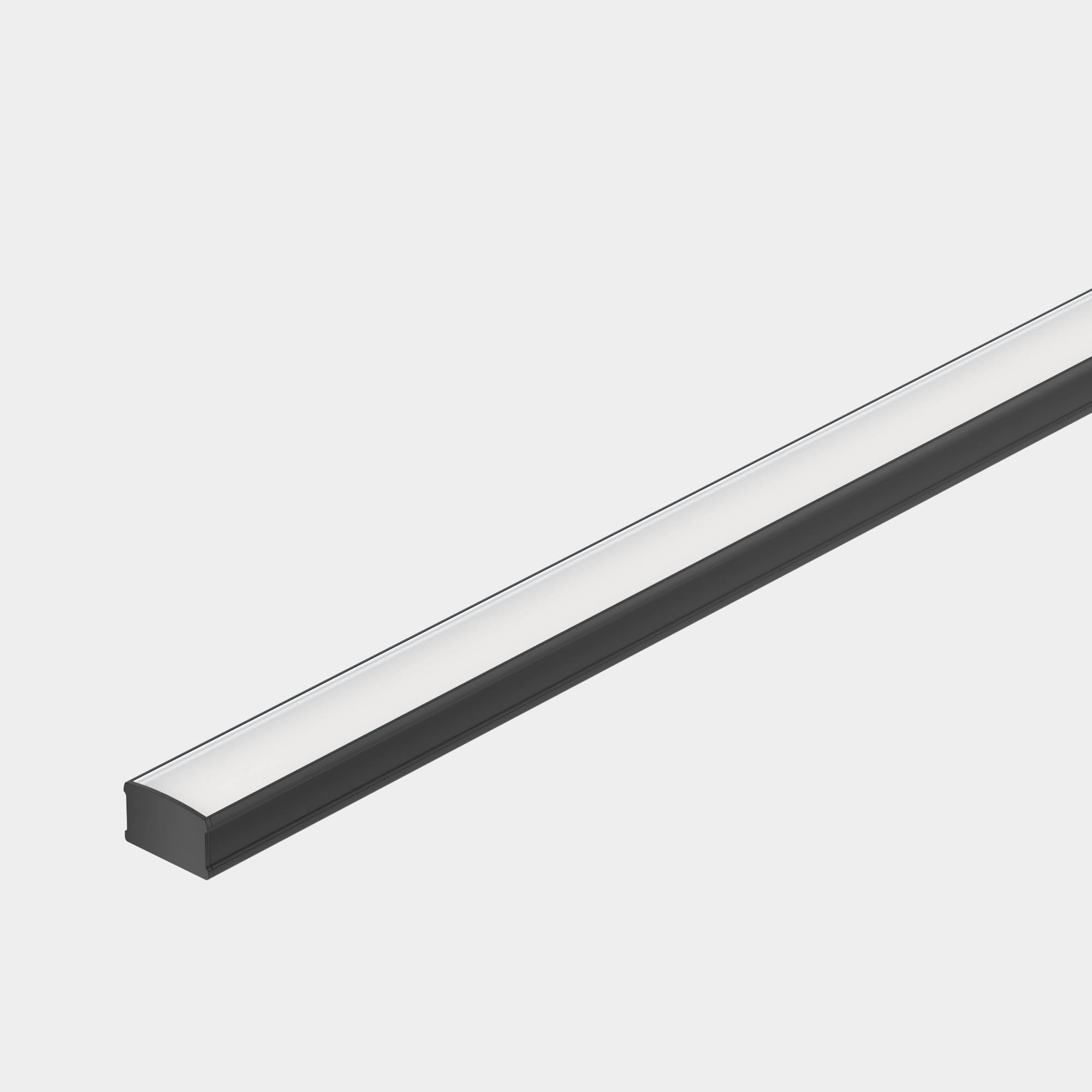

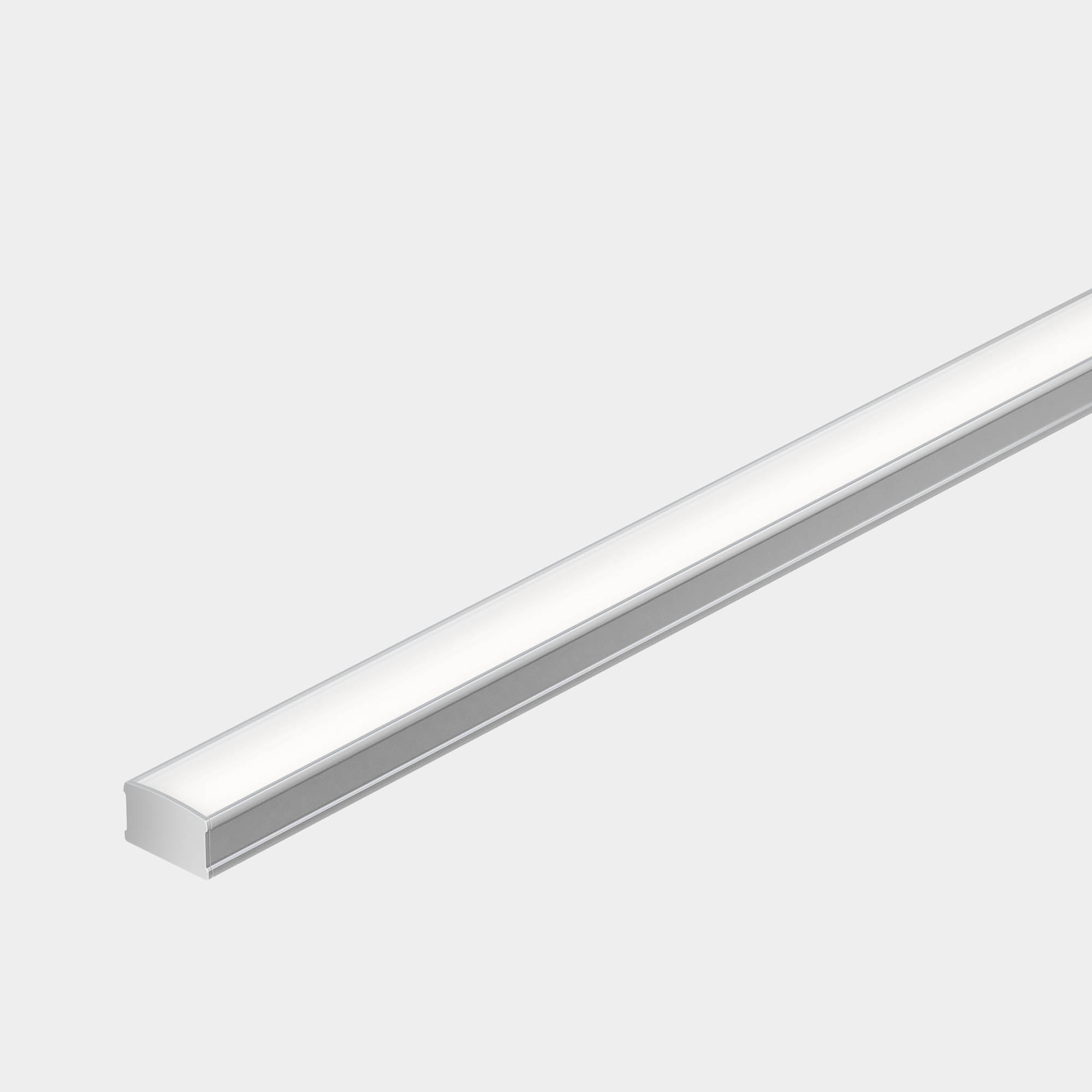

Kendo XL Surface Wet - Dynamic Color

Kendo XL Surface Wet – Dynamic Color

Surface Mount Wet Location Linear 24V System

Overview

Specifications

24VDC Class 2 and IP68 rated for wet locations, fixtures made to order up to 144”. Fixtures can be linked up to 30’ depending on output
Suitable for surface mount, direct view, outdoor, wet, and accent lighting applications
Dot free even illumination with frosted lens
Proprietary strong bond solder method handles up to 50 lbs of pull force on wire leads and connectors.
Average Life (L70): 50,000hrs
3 year warranty
Warm Dim follows the incandescent dimming curve and is compatible with MLV, ELV, and Incandescent dimmers.
Tunable White allows individual control of CCT and output, can be paired with Vintage Dim power supply for warm dim effect
RGB offers balanced output across the color gamut and a true white with RGBW
Smart Pixel allows for infinite color combinations with cascading and chasing effects

CCT: 22K - 32K, 22K - 46K, RGB40K
CRI: 98
Output / ft: 126 lm/ft, 157 lm/ft, 158 lm/ft, 191 lm/ft, 231 lm/ft, 260 lm/ft, 262 lm/ft, 508 lm/ft
Mounting: Surface
Type: Linear Fixture
Input Voltage: Low Voltage
Color: Pixel, RGB/RGBW, Tunable White, Warm Dim
Wattage / ft: 10.1 W/ft, 4.0 W/ft, 4.5 W/ft, 5.7 W/ft, 7.3 W/ft, 7.6 W/ft, 8.3 W/ft
Rating: IP68
Lens Aperture: 0.62 inch
Size: 0.83 in
Height: 0.51 in
Lens: Clear, Frosted
Operating Temperature: -15°F to 125°F
Sustainability: Declare, JA8/Title 24, RoHS/Reach
Made In: Made in America
Warranty: 3 Years
Product Number: KXLW
