Luminii

Linear Luminaires

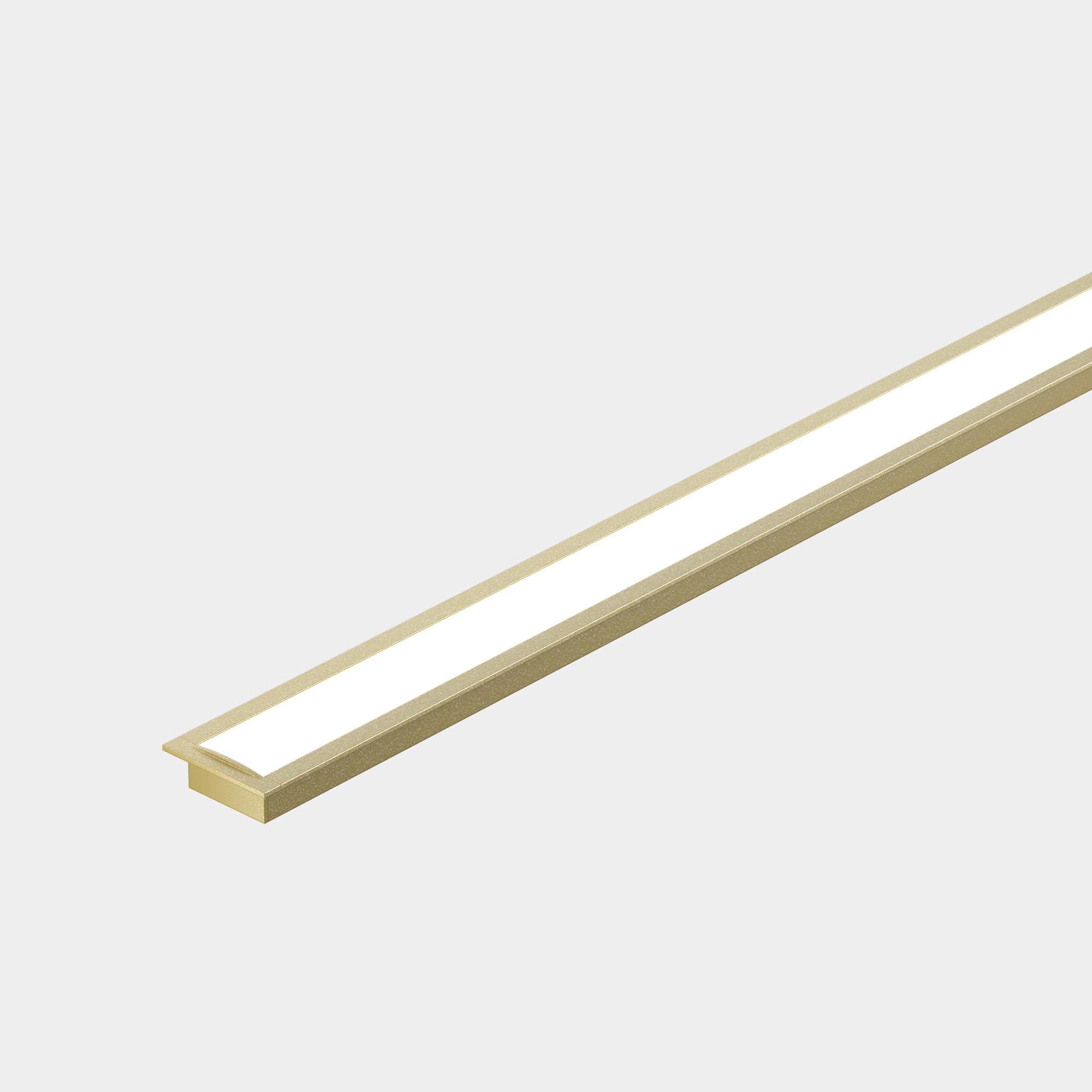

Kendo L Recessed – Static White

Recessed Linear 24V System

Damp
Overview
Specifications
  • 24VDC Class 2 fixtures made to order up to 144 inches. Fixtures can be linked up to 16 feet depending on output
  • Suitable for undercabinet, millwork ground recessed, and ceiling recessed applications
  • Approved for closet/storage space installation per NEC 410.16(A)(3) and 410.16(C)(5)
  • Dot free even illumination achievable in SOHD & VHO with frosted lens
  • Dims with minimal color shift Class 2 listed for damp locations
  • Proprietary strong bond solder method handles up to 50lbs of torque on wire leads and connectors
  • Vibrant colors with R9 values up to 98
  • Single micro binned LEDs +/- 30 CCT
  • CCT: 1900K, 2200K, 2400K, 2500K, 2700K, 3000K, 3500K, 4000K, 4100K
  • CRI: 98
  • Output / ft: 216 lm/ft, 298 lm/ft, 398 lm/ft, 543 lm/ft, 639 lm/ft, 809 lm/ft
  • Mounting: Recessed
  • Input Voltage: Line Voltage
  • Color: Static White
  • Wattage / ft: 1.9 W/ft, 2.8 W/ft, 3.5 W/ft, 6.5 W/ft, 7.3 W/ft, 7.5 W/ft
  • Lens Aperture: 0.62 inch
  • Operating Temperature: 122 F
  • Sustainability: Declare, JA8/Title 24, RoHS/Reach
  • Made In: Made in America
  • Warranty: 5 Years
  • Product Number: KRL
Specsheets
Install Guides
IES Files
Revit Files
Cross Reference Guide
DWG CAD
Kendo L Recessed Static White Spec
9.55 MB
PDF
Kendo rl Instructions
609.86 KB
PDF
KL-48-30K-LL72VHO-HF.IES
1.61 KB
IES
KL-48-30K-LL72VHO-F.IES
1.6 KB
IES
KL-C LL72VHO (40 SECTIONS)_IESNA2002.IES
6.7 KB
IES
Lighting Luminii Kendo L Recessed (2).rfa
532 KB
RFA
LuMinii Cross Reference LuMinii Optic Arts
2.6 MB
PDF
KRL 2D Dimensions.dwg
287.1 KB
DWG
