Luminii

Linear Luminaires

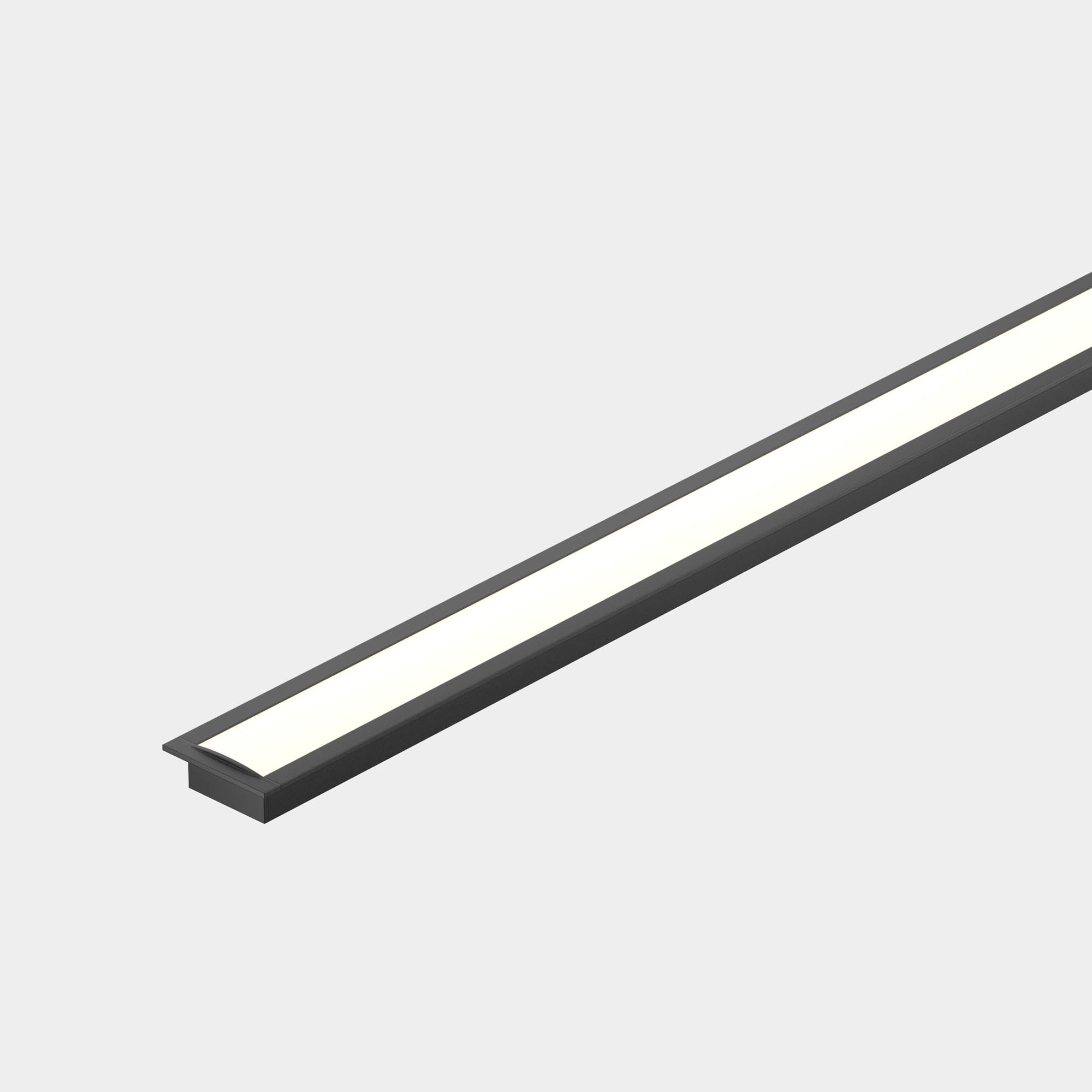

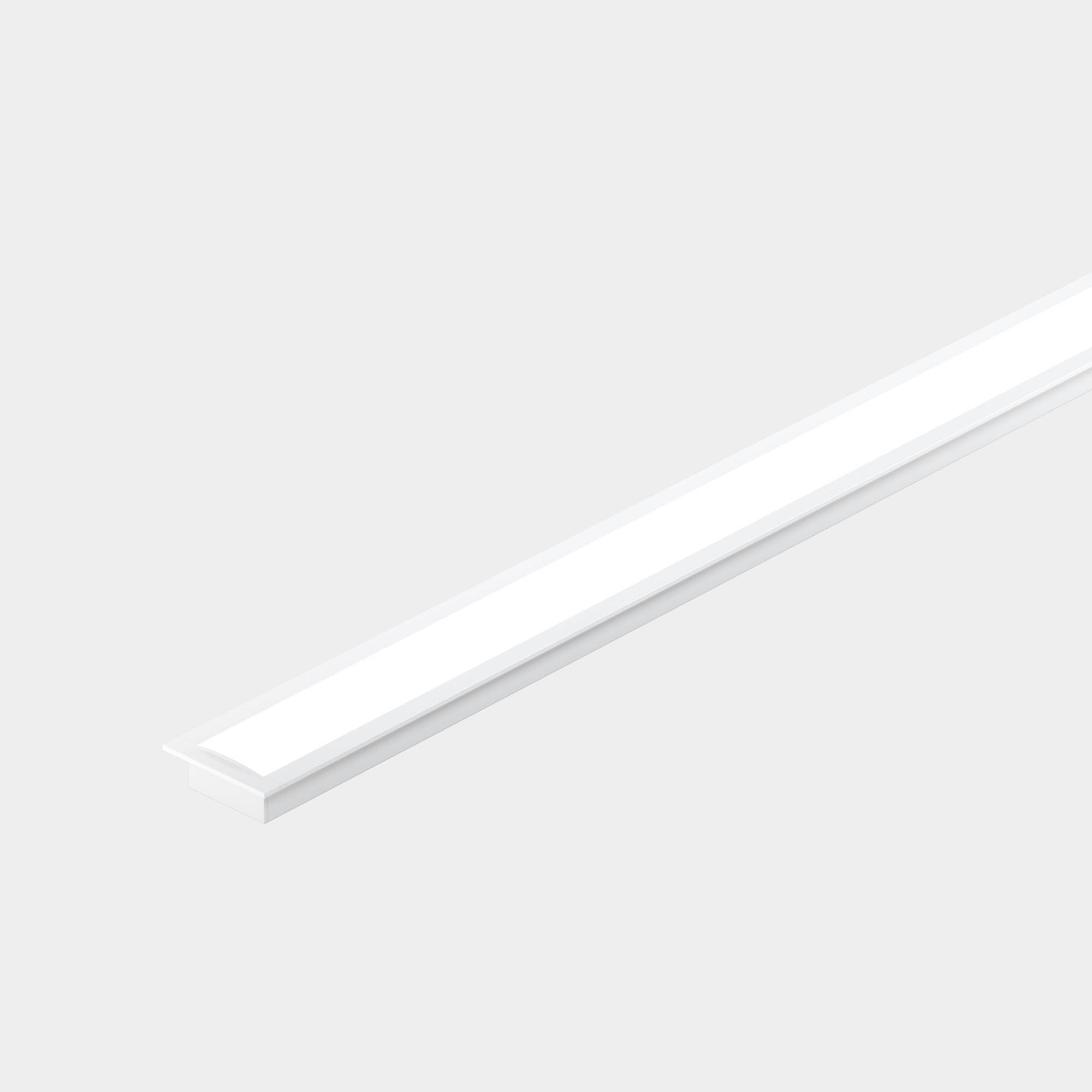

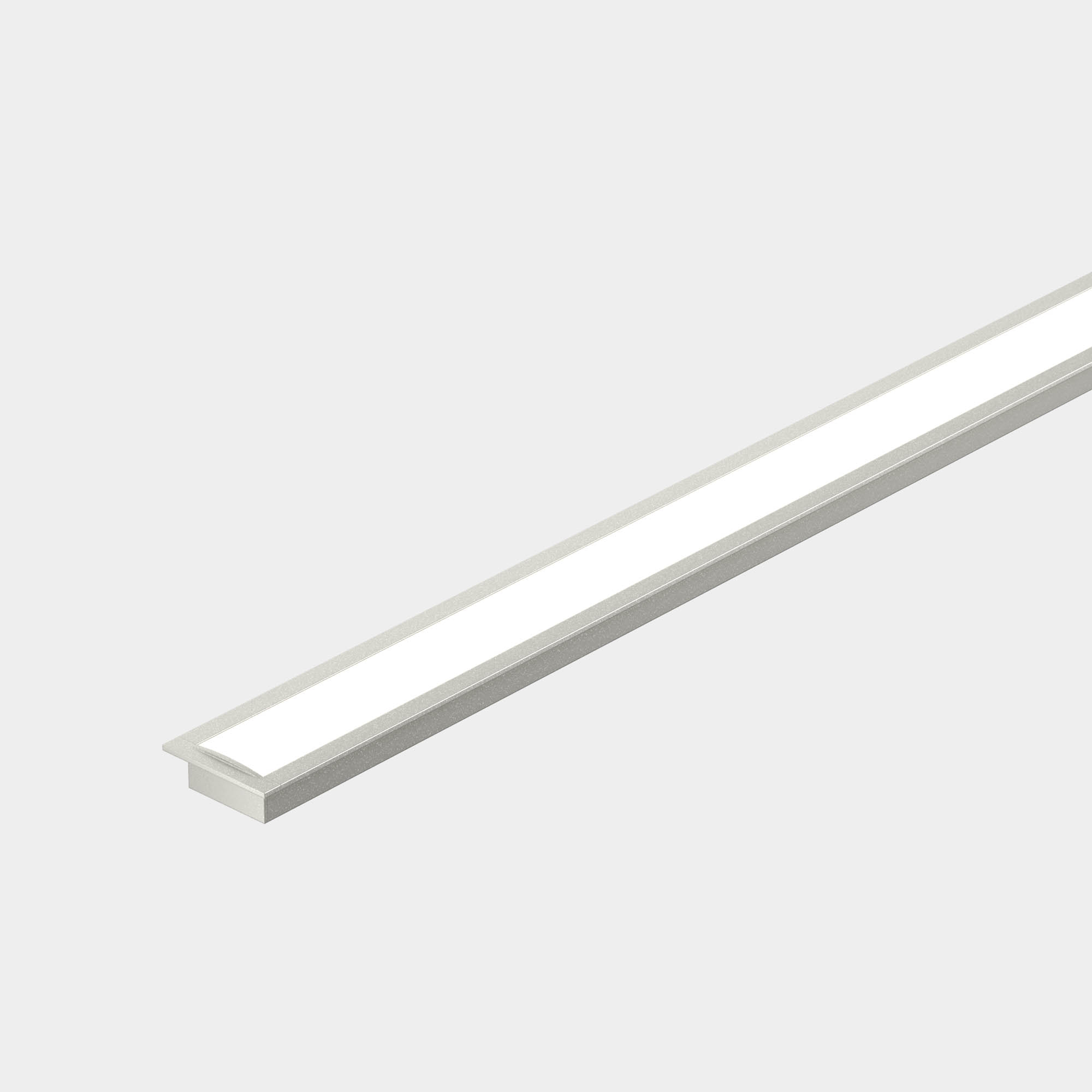

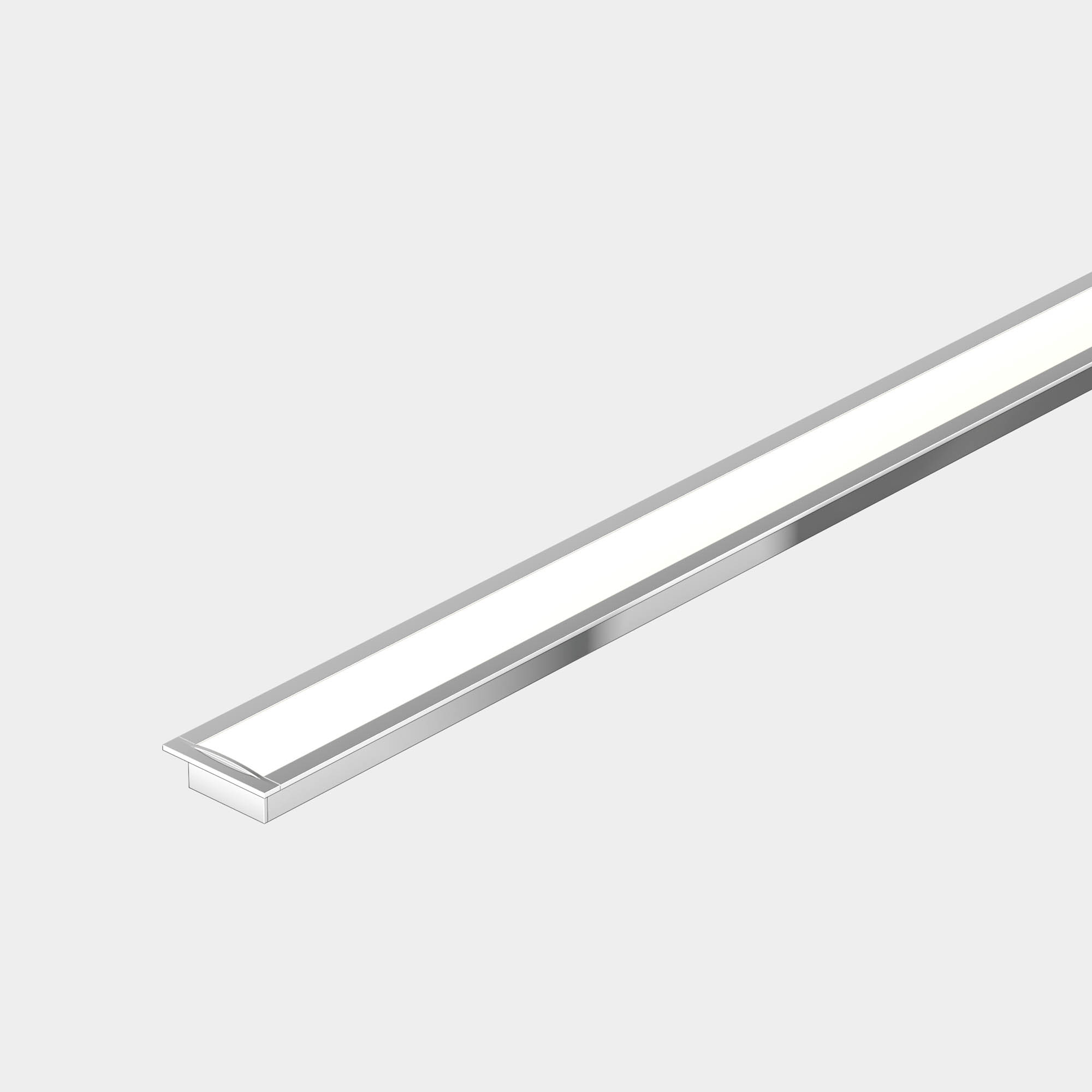

Kendo L Recessed – Dynamic Color

Recessed Linear 24V System

Warm DimTunable WhitePixelRGB/RGBWDamp
Overview
Specifications
  • Efficacy up to 10 lm/w – a 57% increase over the standard RL model
  • 24VDC Class 2 fixtures made to order up to 144 inches. Fixtures can be linked up to 55 feet depending on output
  • Suitable for undercabinet, millwork ground recessed, and ceiling recessed applications
  • Approved for closet/storage space installation per NEC 410.16(A)(3) and 410.16(C)(5)
  • Single micro binned LEDs +/- 30 CCT
  • Dims with minimal color shift
  • Class 2 listed for damp locations
  • Proprietary strong bond solder method handles up to 50lbs of torque on wire leads and connectors
  • CCT: 1900K, 2700K, 2900K, 3500K, 4400K, 6500K
  • CRI: 98
  • Output / ft: 137 lm/ft, 171 lm/ft, 172 lm/ft, 208 lm/ft, 251 lm/ft, 283 lm/ft, 285 lm/ft, 553 lm/ft
  • Mounting: Recessed
  • Input Voltage: Line Voltage
  • Color: Pixel, RGB/RGBW, Tunable White, Warm Dim
  • Wattage / ft: 4.0 W/ft, 4.5 W/ft, 5.4 W/ft, 5.7 W/ft, 7.3 W/ft, 7.6 W/ft, 8.3 W/ft
  • Lens Aperture: 0.62 inch
  • Operating Temperature: 122 F

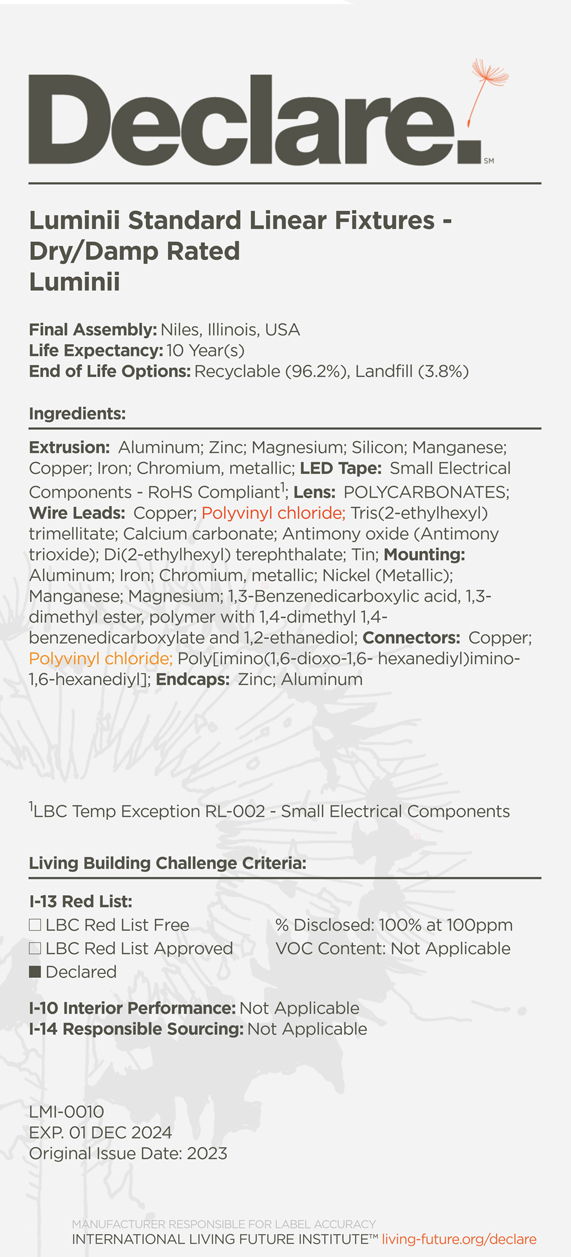

  • Sustainability: Declare, JA8/Title 24, RoHS/Reach
  • Made In: Made in America
  • Warranty: 5 Years
  • Product Number: KRL
Specsheets
Install Guides
Revit Files
Cross Reference Guide
DWG CAD
Kendo L Recessed Dynamic Color Spec
9.52 MB
PDF
Kendo rl Instructions
609.86 KB
PDF
Lighting Luminii Kendo L Recessed (2).rfa
532 KB
RFA
LuMinii Cross Reference LuMinii Optic Arts
2.6 MB
PDF
KRL 2D Dimensions.dwg
287.1 KB
DWG
