Clareo Surface - Dynamic Color - Luminii

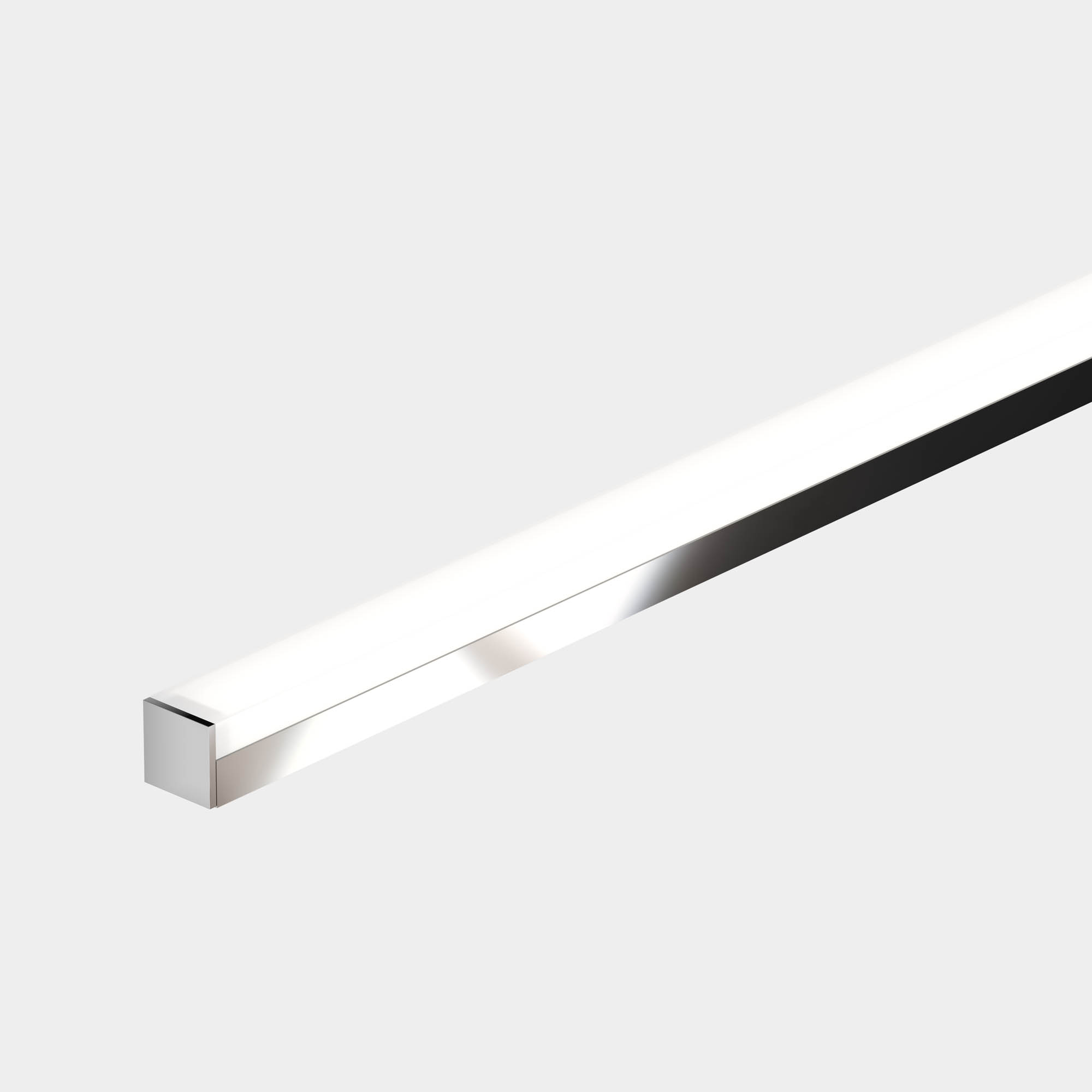

Clareo Surface – Dynamic Color

Surface Mount Linear 24V System

Warm Dim

Tunable White

RGB/RGBW

Damp

Overview

Specifications

24VDC Class 2 fixtures made to order up to 144”. Fixtures can be linked up to 48’ depending on output
Suitable for undercabinet, millwork recessed, and surface mount applications
Approved for closet/storage space installation per NEC 410.16(A) (3) and 410.16(C)(5)
Class 2 listed for damp locations
Dot free even illumination
High Color Quality options offer premium quality and vibrant colors with R9 values up to 97
High Efficacy options offer best in class output and efficacy with over 725 lm/ft and up to 91 lm/W
Proprietary strong bond solder method handles up to 50 lbs of pull force on wire leads and connectors
5 Year warranty

CCT: 1900K, 2700K, 2900K, 3500K, 4400K, 6500K
CRI: 98
Output / ft: 110 lm/ft, 137 lm/ft, 138 lm/ft, 166 lm/ft, 201 lm/ft, 226 lm/ft, 228 lm/ft, 442 lm/ft, 559 lm/ft
Mounting: Surface, T-Grid
Input Voltage: Line Voltage
Color: Pixel, RGB/RGBW, Tunable White, Warm Dim
Wattage / ft: 4.0 W/ft, 4.5 W/ft, 5.4 W/ft, 5.7 W/ft, 7.3 W/ft, 7.6 W/ft, 8.3 W/ft, 9.4 W/ft
Lens Aperture: 0.77 inch
Operating Temperature: 122 F

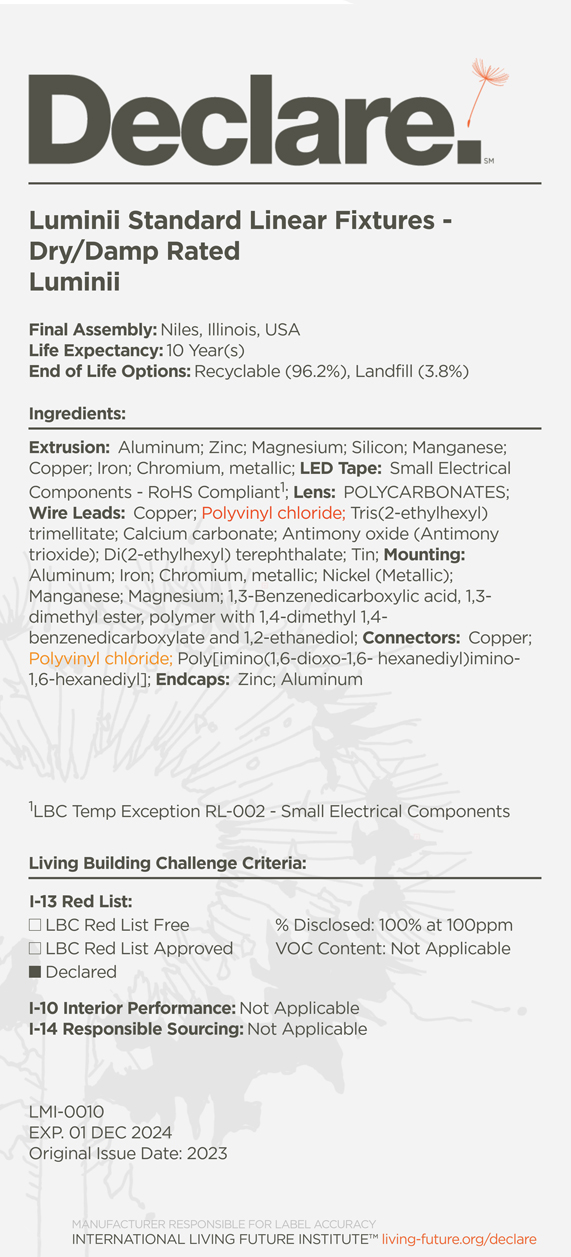

Sustainability: Declare, JA8/Title 24, RoHS/Reach
Made In: Made in America
Warranty: 7 years
Product Number: CLS

JA8/Title 24

RoHS/Reach

Clareo Surface Dynamic Color Spec

9.49 MB

PDF

CL SUR Instructions

649 KB

PDF

Lighting Luminii Clareo Surface.rfa

1016 KB

RFA

LuMinii Cross Reference LuMinii Optic Arts

2.6 MB

PDF

Teava Suspended 2D Dimensions.dwg

655.79 KB

DWG
