Luminii

Linear Luminaires

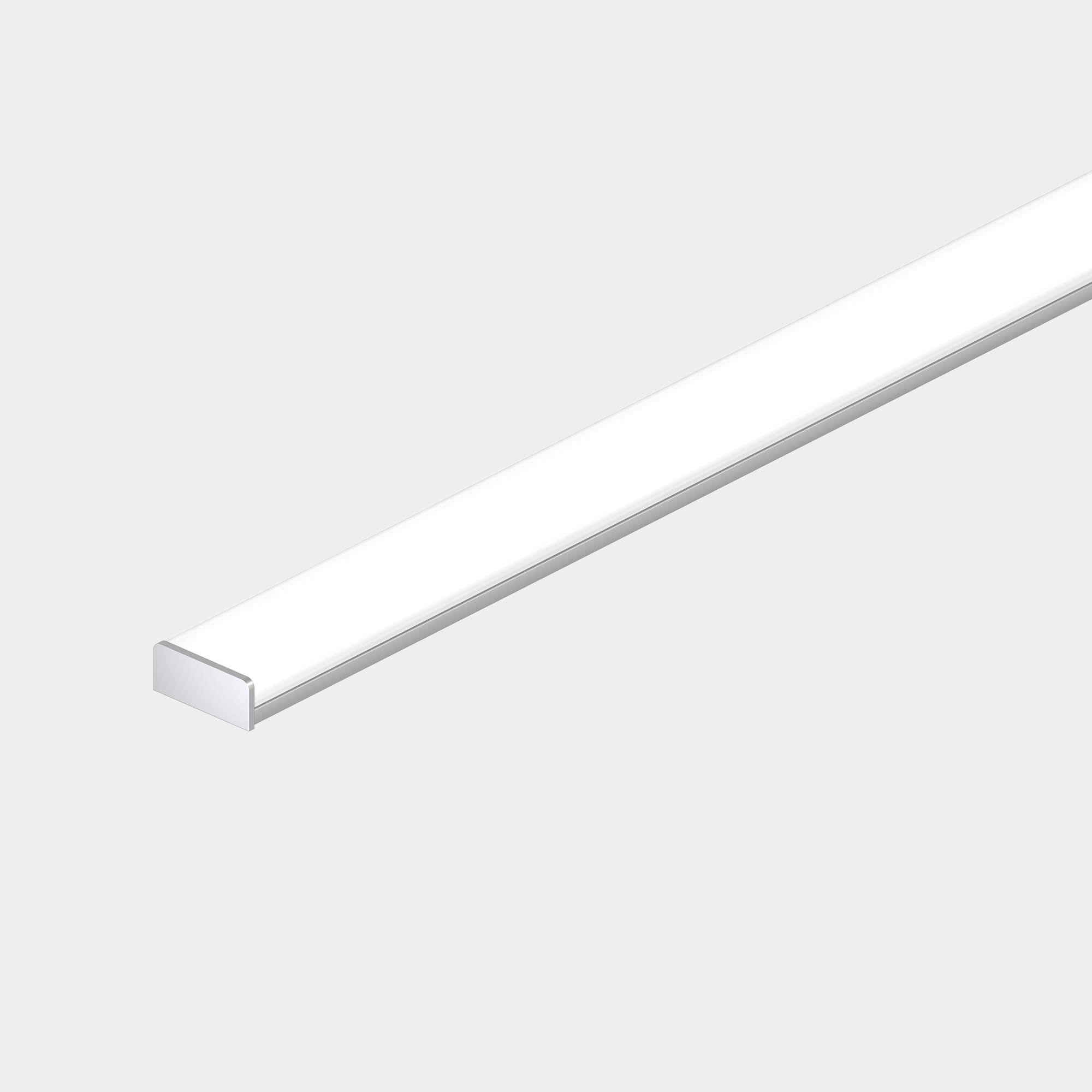

Bara Surface – Static White

Surface Mount Linear 24V System

Damp
Overview
Specifications
  • 24VDC Class 2 fixtures made to order up to 144”. Fixtures can be linked up to 40’ depending on output
  • Suitable for undercabinet, surface mount, and direct view applications
  • Approved for closet/storage space installation per NEC 410.16(A) (3) and 410.16(C)(5) on outputs 5.7 W/ft or less
  • Class 2 listed for damp locations
  • Dot free even illumination with frosted lens
  • Average Life (L70): 50,000hrs
  • High Color Quality options offer premium quality and vibrant colors with R9 values up to 97
  • High Efficacy options offer best in class output and efficacy with over 690 lm/ft and up to 77 lm/W
  • Proprietary strong bond solder method handles up to 50 lbs of pull force on wire leads and connectors
  • 7 Year warranty
  • CCT: 1900K, 2200K, 2400K, 2500K, 2700K, 3000K, 3500K, 4000K, 4100K
  • CRI: 98
  • Type: Linear Fixture
  • Output / ft: 159 lm/ft, 258 lm/ft, 313 lm/ft, 617 lm/ft, 693 lm/ft
  • Input Voltage: Low Voltage
  • Color: Static White
  • Wattage / ft: 2.8 W/ft, 4.8 W/ft, 6.0 W/ft, 7.5 W/ft, 9.6 W/ft
  • Rating: Damp
  • Accessories: Blade Louver, Glare Shield
  • Lens Aperture: 0.93 inch
  • Size: 0.93 in
  • Height: 0.40 in
  • Lens: Asymmetric, Batwing, Frosted, Medium, Narrow Beam
  • Operating Temperature: -5°F to 125°F

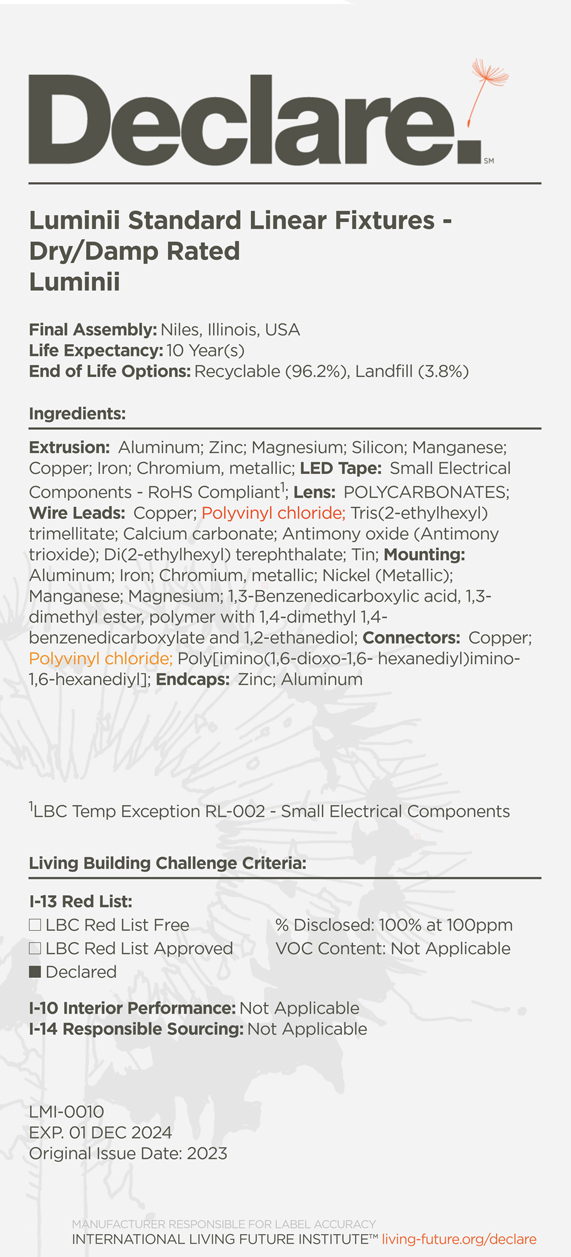

  • Sustainability: Declare, JA8/Title 24, RoHS/Reach
  • Made In: Made in America
  • Warranty: 7 years
  • Product Number: Bar
Learn more
Specsheets
Install Guides
IES Files
Revit Files
Bara Surface Static White Specsheet
4.18 MB
PDF
Bara Install Guide
1.31 MB
PDF
BAR-48-72VHO-30K-AS.ies
14.93 KB
IES
BAR-48-72VHO-30K-F.ies
1.62 KB
IES
BAR-48-72VHO-30K-BW.ies
15.15 KB
IES
BAR-48-72VHO-30K-M.ies
15.08 KB
IES
BAR-48-72VHO-30K-N.ies
15.16 KB
IES
Lighting Luminii Bara Static White.rfa
760 KB
RFA
