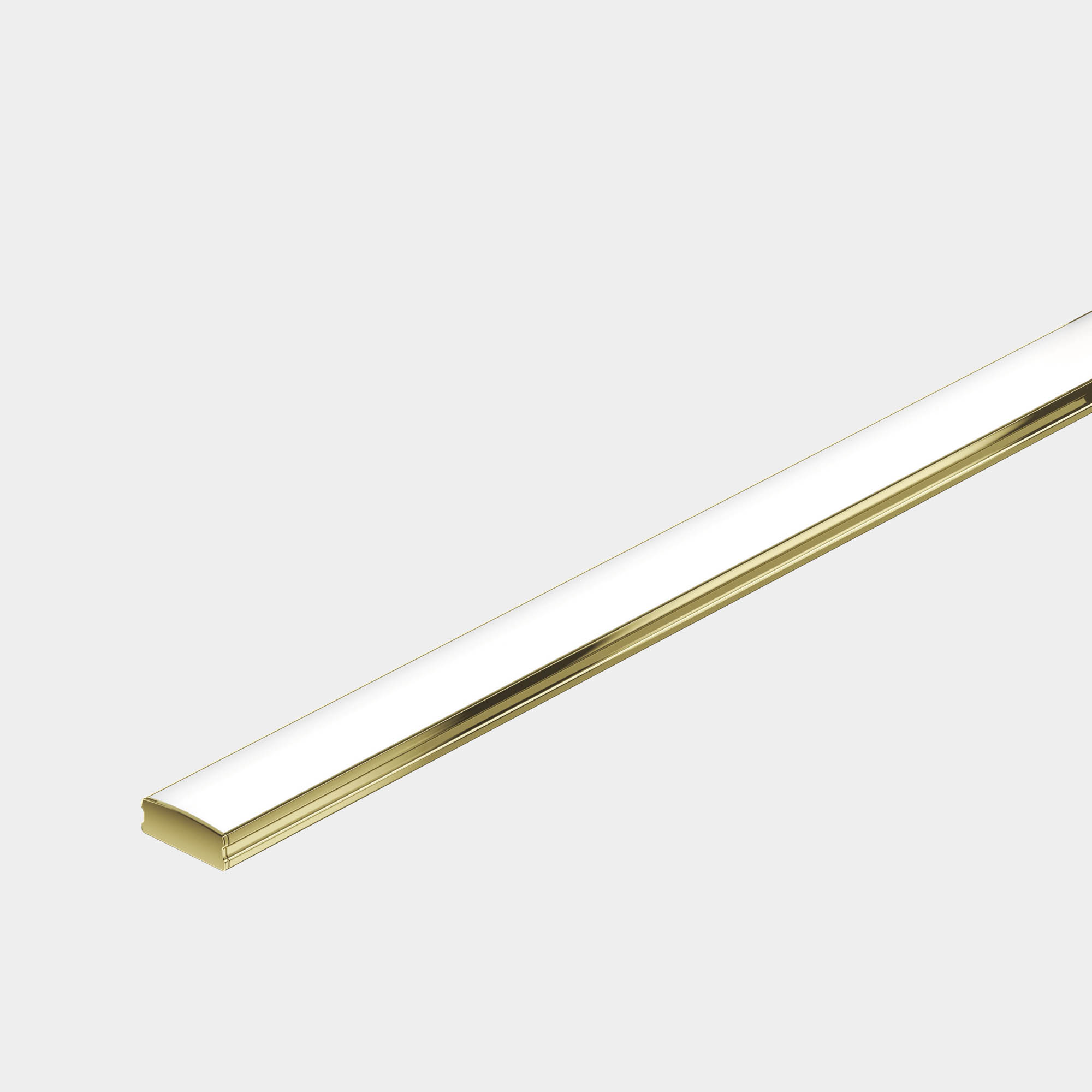

Kendo L Surface - Static White

Kendo L Surface – Static White

Surface Mount Linear 24V System

Overview

Specifications

24VDC Class 2 fixtures made to order up to 144”. Fixtures can be linked up to 48’ depending on output
Suitable for undercabinet, millwork, surface mount, direct view, cove, architectural reveals
Approved for closet/storage space installation per NEC 410.16(A) (3) and 410.16(C)(5) on outputs 5.7W/ft or less
Class 2 listed for damp locations
Dot free even illumination with frosted lens
High Color Quality options offer premium quality and vibrant colors with R9 values up to 97
High Efficacy options offer best in class output and efficacy with over 800 lm/ft and up to 114 lm/W
Proprietary strong bond solder method handles up to 50 lbs of pull force on wire leads and connectors
Average Life (L70): 50,000hrs
7 year warranty

CCT: 2200K, 2400K, 2500K, 2700K, 3000K, 3500K, 4000K, 4100K
CRI: 98
Output / ft: 216 lm/ft, 298 lm/ft, 398 lm/ft, 543 lm/ft, 639 lm/ft, 678 lm/ft, 809 lm/ft
Mounting: Surface
Type: Linear Fixture
Input Voltage: Low Voltage
Color: Static White
Wattage / ft: 1.9 W/ft, 2.8 W/ft, 3.5 W/ft, 6.5 W/ft, 7.3 W/ft, 7.5 W/ft, 9.4 W/ft
Rating: Damp
Lens Aperture: 0.62 inch
Size: 0.83 in
Height: 0.30 in
Lens: Clear, Frosted, Half Frosted
Operating Temperature: -5°F to 125°F
Sustainability: Declare, JA8/Title 24, RoHS/Reach
Made In: Made in America
Warranty: 7 years
Product Number: KL
