Linii Static White

Linii – Static White

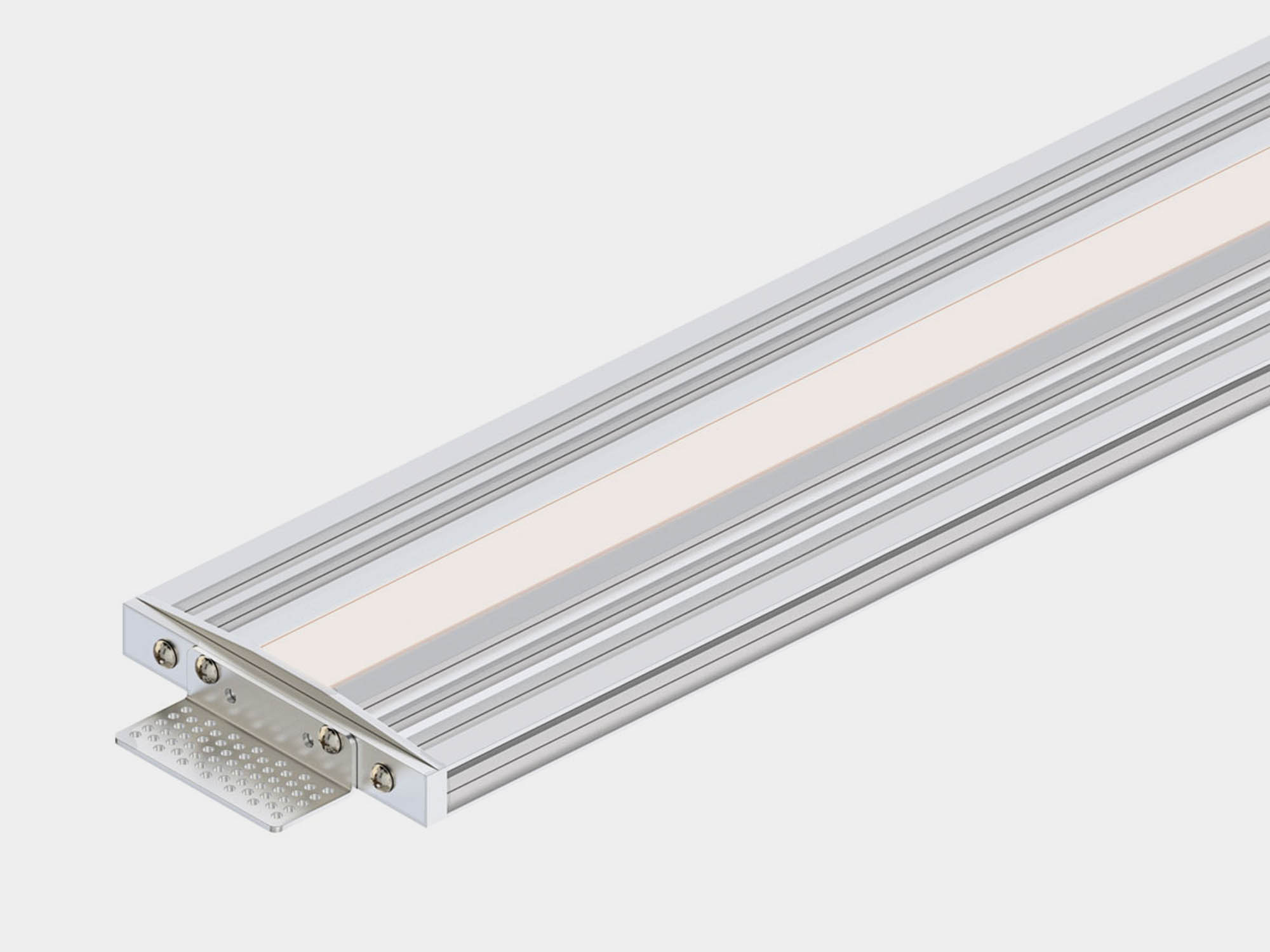

Trimless Mud-In Linear 24V System

Overview

Specifications

24VDC Class 2 fixtures made to order up to 144”.Fixtures can be linked up to 48’ depending on output
Available with plenum rated wire leads or with integral junction box for splice connection
Class 2 listed for damp locations
Dot free even illumination
Proprietary strong bond solder method handles up to 50 lbs of pull force on wire leads and connectors
Approved for closet/storage space installation per NEC 410.16(A) (3) and 410.16(C)(5) on outputs 5.7W/ft or less
High Color Quality options offer premium quality and vibrant colors with R9 values up to 97
High Efficacy options offer best in class output and efficacy with over 625 lm/ft and up to 79 lm/W
Average Life (L70): 50,000hrs
7 year warranty

CCT: 1900K, 2200K, 2400K, 2500K, 2700K, 3000K, 3500K, 4000K, 4100K
CRI: 98
Output / ft: 149 lm/ft, 153 lm/ft, 206 lm/ft, 248 lm/ft, 275 lm/ft, 302 lm/ft, 441 lm/ft, 559 lm/ft, 628 lm/ft
Mounting: Recessed
Input Voltage: Low Voltage
Wattage / ft: 1.9 W/ft, 2.8 W/ft, 3.5 W/ft, 4.8 W/ft, 6 W/ft, 6.5 W/ft, 7.5 W/ft, 9.6 W/ft
Lens Aperture: 0.90 inch
Operating Temperature: -5°F to 125°F
Made In: Made in America
Warranty: 7 years
Type: Linear Fixture
Color: Static White
Rating: Damp
Size: 3.10 in, 4.40 in
Height: 0.55 in
Lens: Frosted, Frosted Silicone
Sustainability: Declare, JA8/Title 24, RoHS/Reach
Product Number: LIN
