Luminii

Downlights

Leto 1 Single

Flanged Single Adjustable Downlight

Overview
Specifications

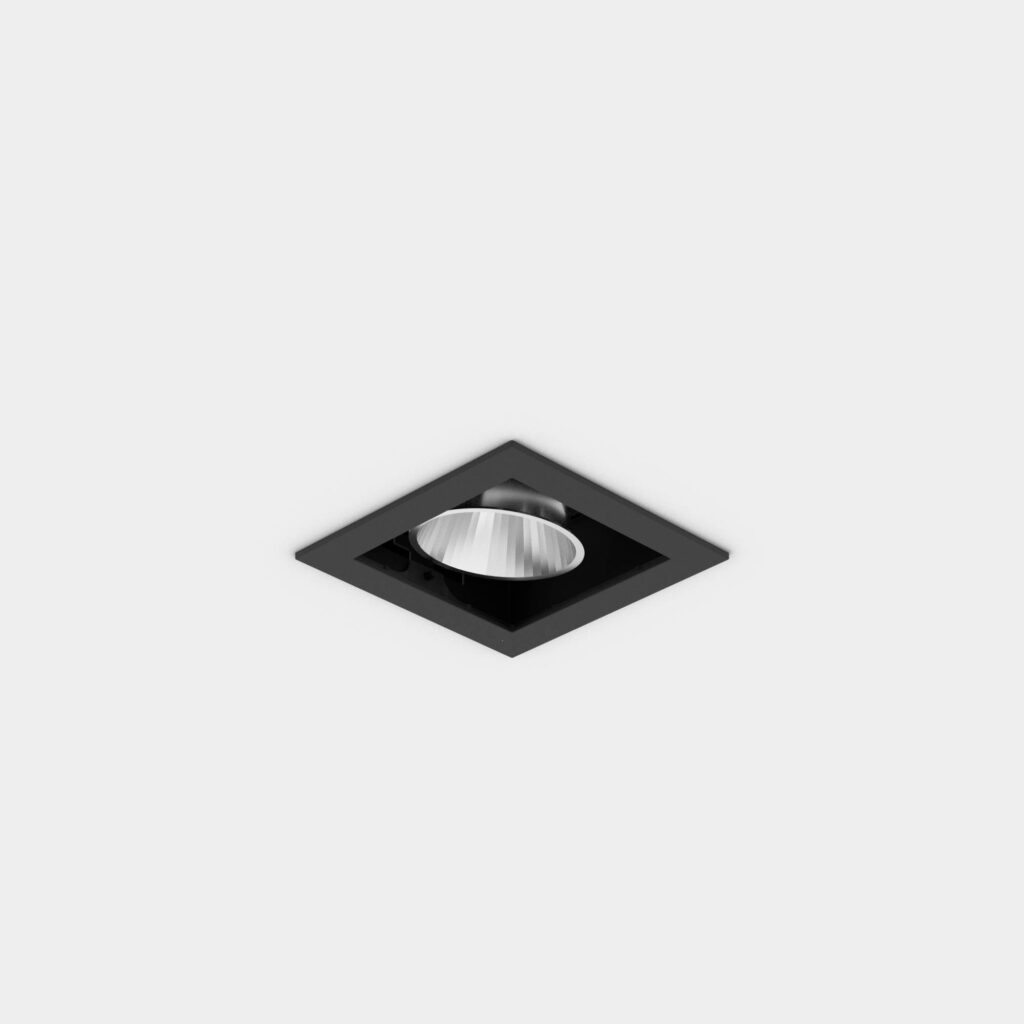

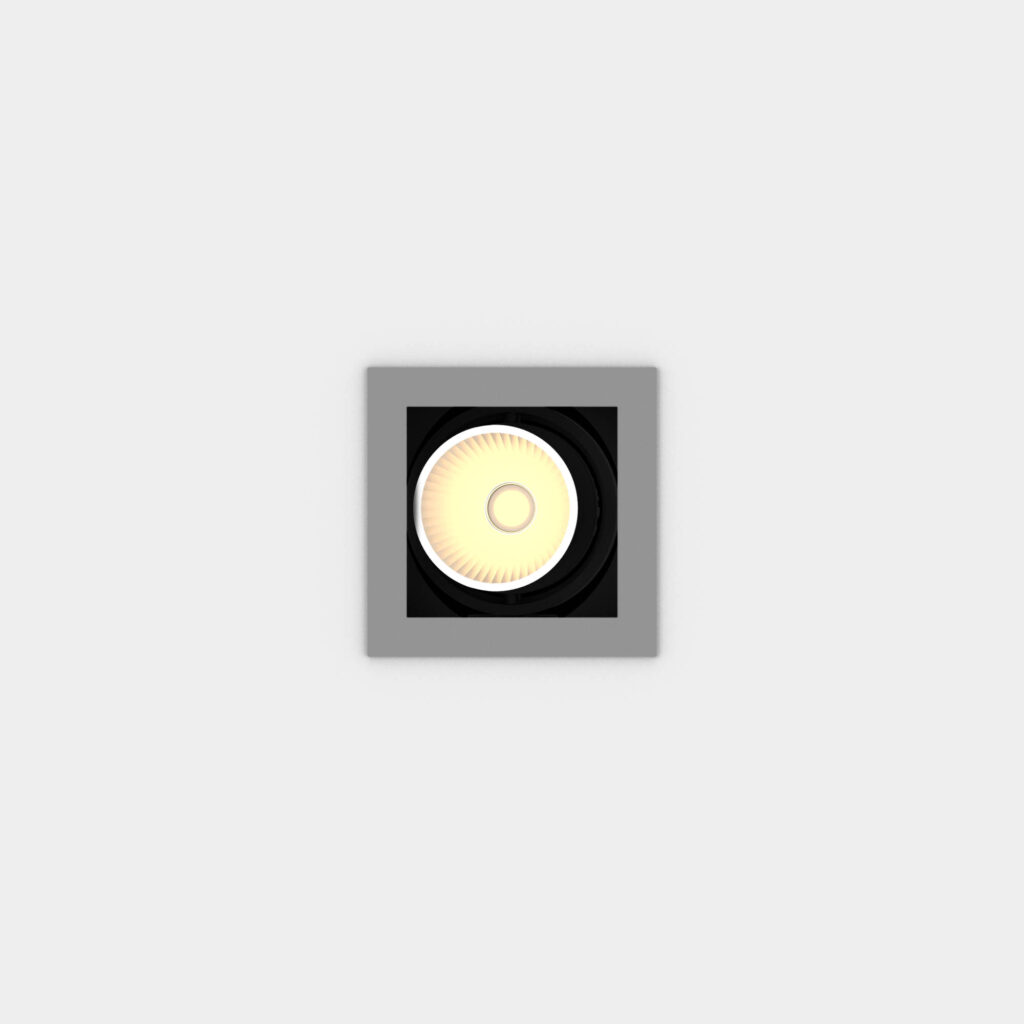

The LETO 1 Single is a square recessed LED fixture. Designed to be architecturally pleasing, it is fully adjustable to 30°. It can be used as a general light application, or to highlight specific design areas, or can do both using the LETO 1 double and triple option.

  • CCT: 2500K, 2700K, 3000K, 3500K, 4000K, 6500K
  • CRI: 90+
  • Output: 1000 lm, 1500 lm, 2000 lm, 3000 lm, 700 lm
  • Function: Adjustable
  • Aperture Size: 3.7 inch
  • Shape: Square
  • Optics: 18°, 30°, 45°, 60°
  • Wattage: 12.1 W, 16.4 W, 24.9 W, 31.8 W, 8.2 W
  • Dimming Protocol: 0-10 V, DALI, DMX, Phase
  • Trim: Trimmed
  • Sustainability: RoHS/Reach
  • Made In: Made in Canada, Made in Canada with Imported Parts
  • Warranty: 5 Years
  • Product Number: 670
Specsheets
Install Guides
IES Files
Leto 1 Single Specsheet
833.99 KB
PDF
Leto 1 Single Installation
689.02 KB
PDF
670-A90-645-35-10-00.ies
97.76 KB
IES
670-A90-630-35-07-00.ies
96.85 KB
IES
670-A90-618-35-20-00.ies
98.44 KB
IES
670-A90-645-35-15-00.ies
98.57 KB
IES
670-A90-618-35-30-00.ies
97.43 KB
IES
670-A90-645-35-30-00.ies
99.61 KB
IES
670-A90-660-35-07-00.ies
102.33 KB
IES
670-A90-645-35-07-00.ies
97.35 KB
IES
670-A90-630-35-15-00.ies
104.6 KB
IES
670-A90-660-35-20-00.ies
101.54 KB
IES
670-A90-630-35-10-00.ies
97.42 KB
IES
670-A90-660-35-30-00.ies
103.83 KB
IES
670-A90-660-35-15-00.ies
105.88 KB
IES
670-A90-630-35-20-00.ies
98.32 KB
IES
670-A90-630-35-30-00.ies
101.42 KB
IES
670-A90-618-35-07-00.ies
96.36 KB
IES
670-A90-618-35-15-00.ies
97.67 KB
IES
670-A90-660-35-10-00.ies
102.14 KB
IES
670-A90-618-35-10-00.ies
97.25 KB
IES
670-A90-645-35-20-00.ies
101.13 KB
IES
