Luminii

Bendable

Kurba Max

Field Bendable 24V System

Warm DimTunable WhiteIP68
Overview
Specifications

Kurba Max is a dot free direct view, highly versatile, energy efficient and flexible LED strip suitable for outdoor wet locations capable of horizontal/side bends and vertical/top bends with a 8”in bending radius. The silicone material offers excellent heat, weather, UV, and solvent resistance and has a special coating to repel dust and dirt accumulation.

  • CCT: 2200K, 2700K, 3000K, 3500K, 4000K, 18K - 30K, 22K - 57K
  • CRI: 80+
  • Type: Bendable
  • Output / ft: 160 lm/ft, 167 lm/ft, 204 lm/ft, 208 lm/ft, 335 lm/ft, 396 lm/ft, 437 lm/ft, 536 lm/ft
  • Mounting: Recessed, Surface
  • Bend Type: Horizontal, Vertical
  • Input Voltage: Low Voltage
  • Color: Static White, Warm Dim, Tunable White
  • Wattage / ft: 3.6 W/ft, 5 W/ft
  • Rating: IP68
  • Lens Aperture: 0.87 inch
  • Size: 0.87 in
  • Height: 0.87 in
  • Lens: Silicone Frosted
  • Operating Temperature: -40°F to 113°F, -40°F to 131°F

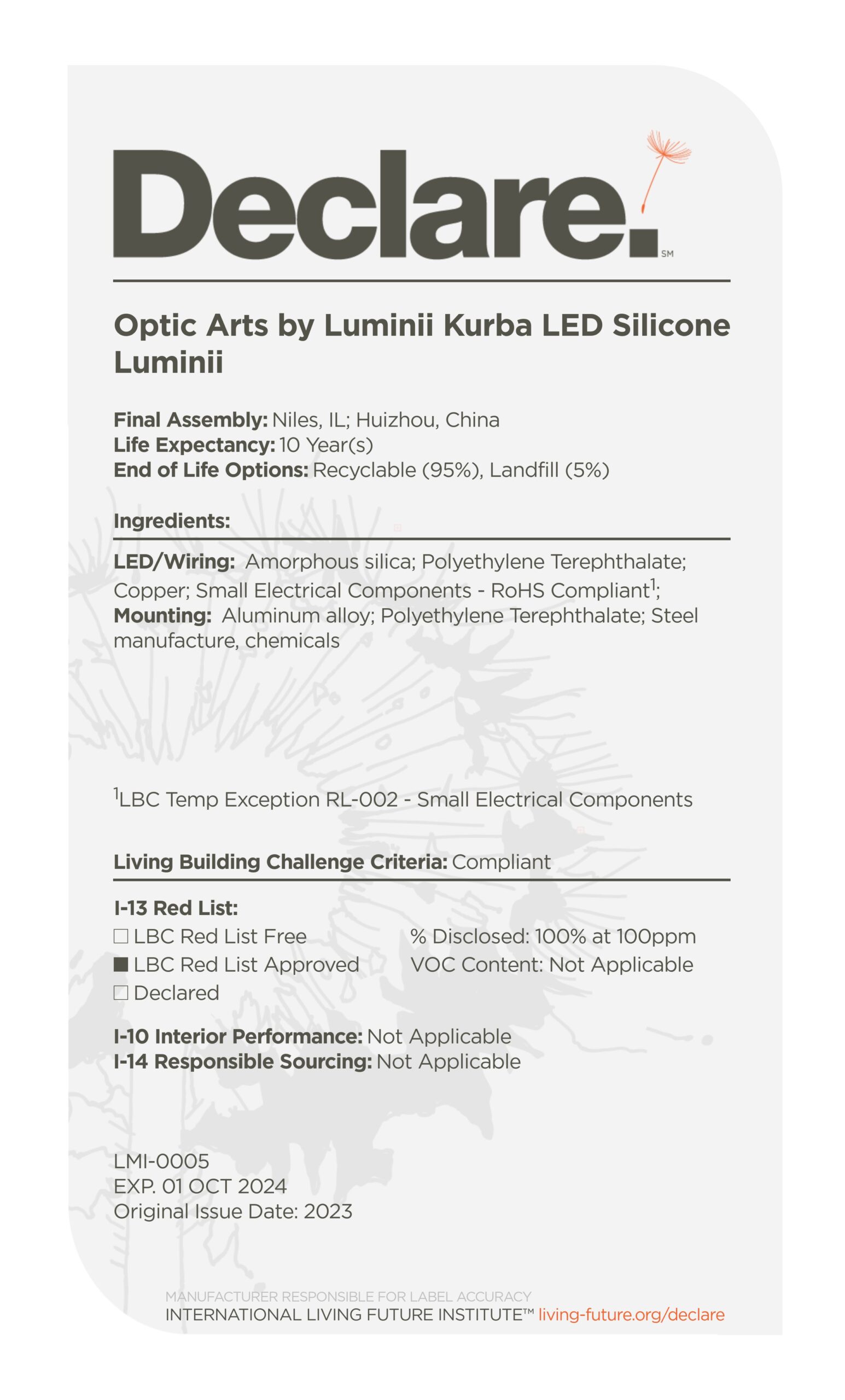

  • Sustainability: Declare, JA8/Title 24, RoHS/Reach
  • Warranty: 3 Years
  • Product Number: KBX
Learn more
Specsheets
Install Guides
Cross Reference Guide
IES Files
Kurba Max V H Static White Specsheet
2.04 MB
PDF
Kurba Max V H Dynamic Color Specsheet
2.35 MB
PDF
Kurba Tunable White Install Guide
1.96 MB
PDF
Kurba Static White Warm Dim Install Guide
2.04 MB
PDF
Kurba Cross Reference
298.07 KB
PDF
Kurba Max IES.zip
6.37 KB
ZIP
