Luminii

Bendable

Kurba Large Sauna

Field Bendable 24V System

IP67
Overview
Specifications

Kurba Large is a dot free direct view, highly versatile, energy efficient and flexible LED strip suitable for Sauna and Spa locations capable of horizontal/side bends and vertical/top bends with a 6”in bending radius. The silicone material offers excellent heat, weather, UV, and solvent resistance and is self cleaning which repels dust and dirt accumulation.

  • CCT: 2200K, 2400K, 2700K, 3000K, 3500K, 4000K
  • CRI: 80+
  • Type: Bendable
  • Output / ft: 89 lm/ft, 98 lm/ft
  • Mounting: Recessed, Surface
  • Bend Type: Horizontal, Vertical
  • Input Voltage: Low Voltage
  • Color: Static White
  • Wattage / ft: 1.8 W/ft
  • Rating: IP67
  • Lens Aperture: 0.63 inch
  • Size: 0.63 in
  • Height: 0.67 in
  • Lens: Silicone Frosted
  • Operating Temperature: -40°F to 194°F

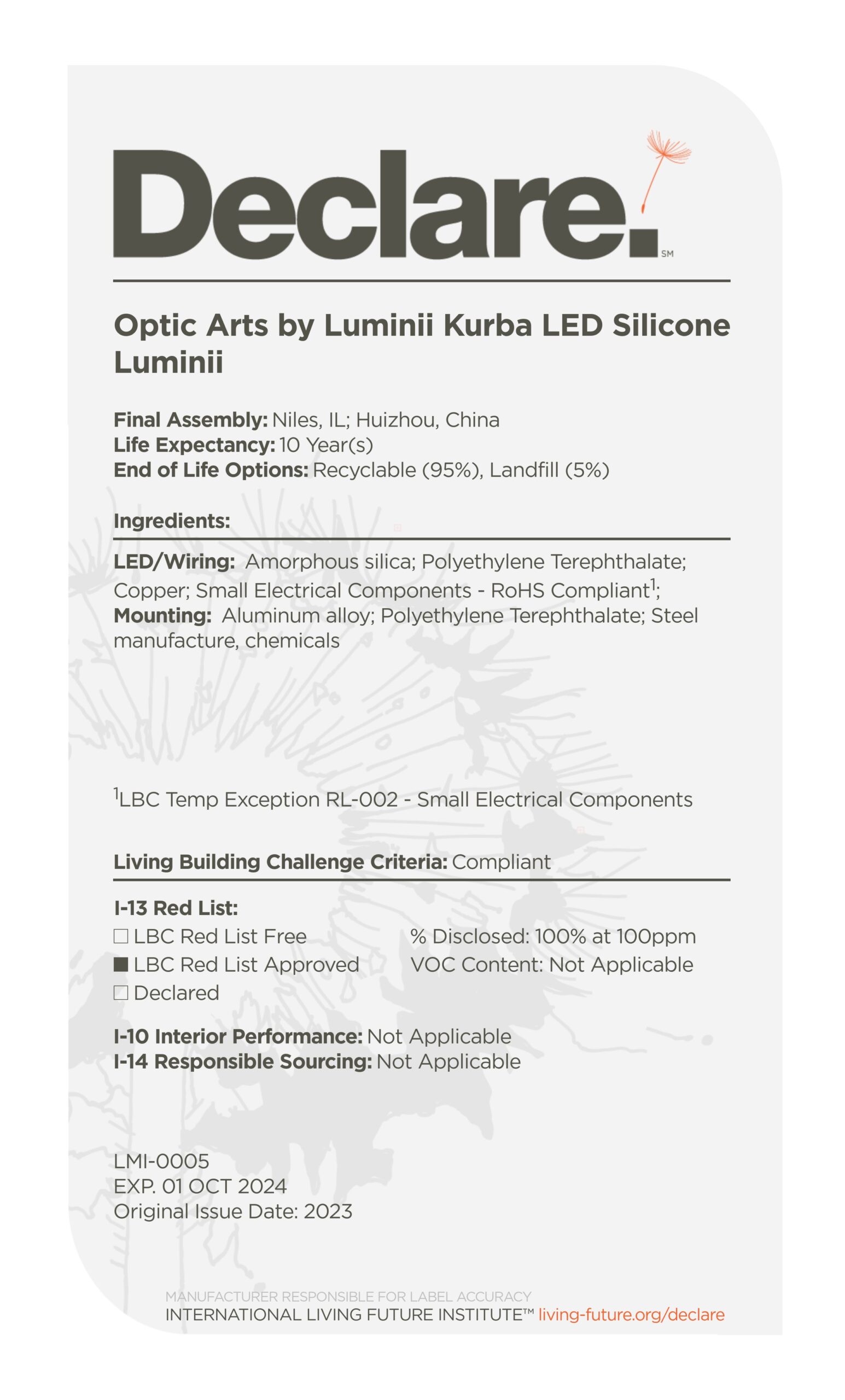

  • Sustainability: Declare, JA8/Title 24, RoHS/Reach
  • Warranty: 3 Years
  • Product Number: KBL
Learn more
Specsheets
Install Guides
Cross Reference Guide
IES Files
Kurba Large V H Sauna Static White Specsheet
PDF
Kurba Static White Warm Dim Install Guide
2.04 MB
PDF
Kurba Cross Reference
298.07 KB
PDF
Kurba Large Sauna IES.zip
2.79 KB
ZIP
