Knife Edge - Static White

Knife Edge – Static White

Mud-In Linear 24V System

Overview

Specifications

The Luminii Knife Edge system produces an elegant, seamless sharp-edged architectural feature with uniform lighting on adjacent surfaces.
Accepts 5/8” thick drywall on its underside.architectural reveals, accent lighting and surface mount applications
Create a soft diffused illumination, color tuning or an asymmetrical forward distribution by selecting the desired beam control offering.
Integrated asymmetric light engine or soft perimeter glow
Factory cut to length
Factory built precision Inside and Outside Corners
Painted Eggshell RAL 9010 with primer to accept field painting
Average Life (L70): 50,000hrs
7 year warranty

CCT: 1900K, 2200K, 2400K, 2500K, 2700K, 3000K, 3500K, 4000K
CRI: 98
Output / ft: 146 lm/ft, 150 lm/ft, 202 lm/ft, 243 lm/ft, 270 lm/ft, 296 lm/ft, 433 lm/ft, 548 lm/ft
Mounting: Cove, Surface
Type: Linear Fixture
Input Voltage: Low Voltage
Color: Static White
Wattage / ft: 1.9 W/ft, 2.8 W/ft, 3.5 W/ft, 4.8 W/ft, 6.0 W/ft, 6.5 W/ft, 7.5 W/ft
Lens Aperture: 0.50 inch
Size: 5.10 in
Height: 2.52 in
Lens: Frosted
Operating Temperature: -5°F to 125°F

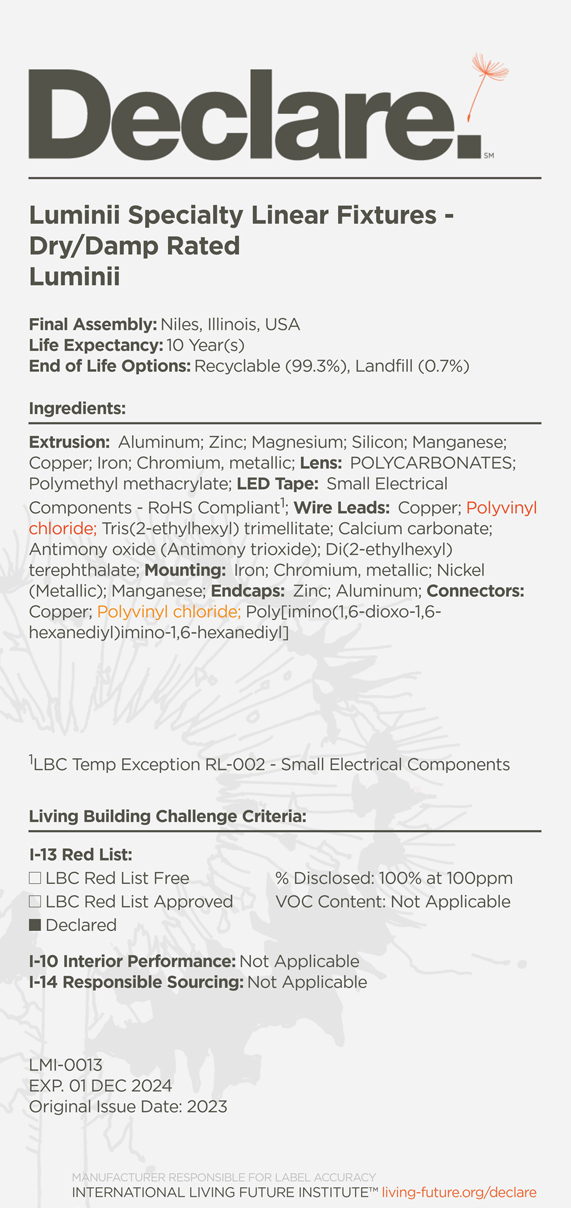

Sustainability: Declare, JA8/Title 24, RoHS/Reach
Made In: Made in America
Warranty: 7 years
Product Number: KE
