Kendo 45M Wet - Static White - Luminii

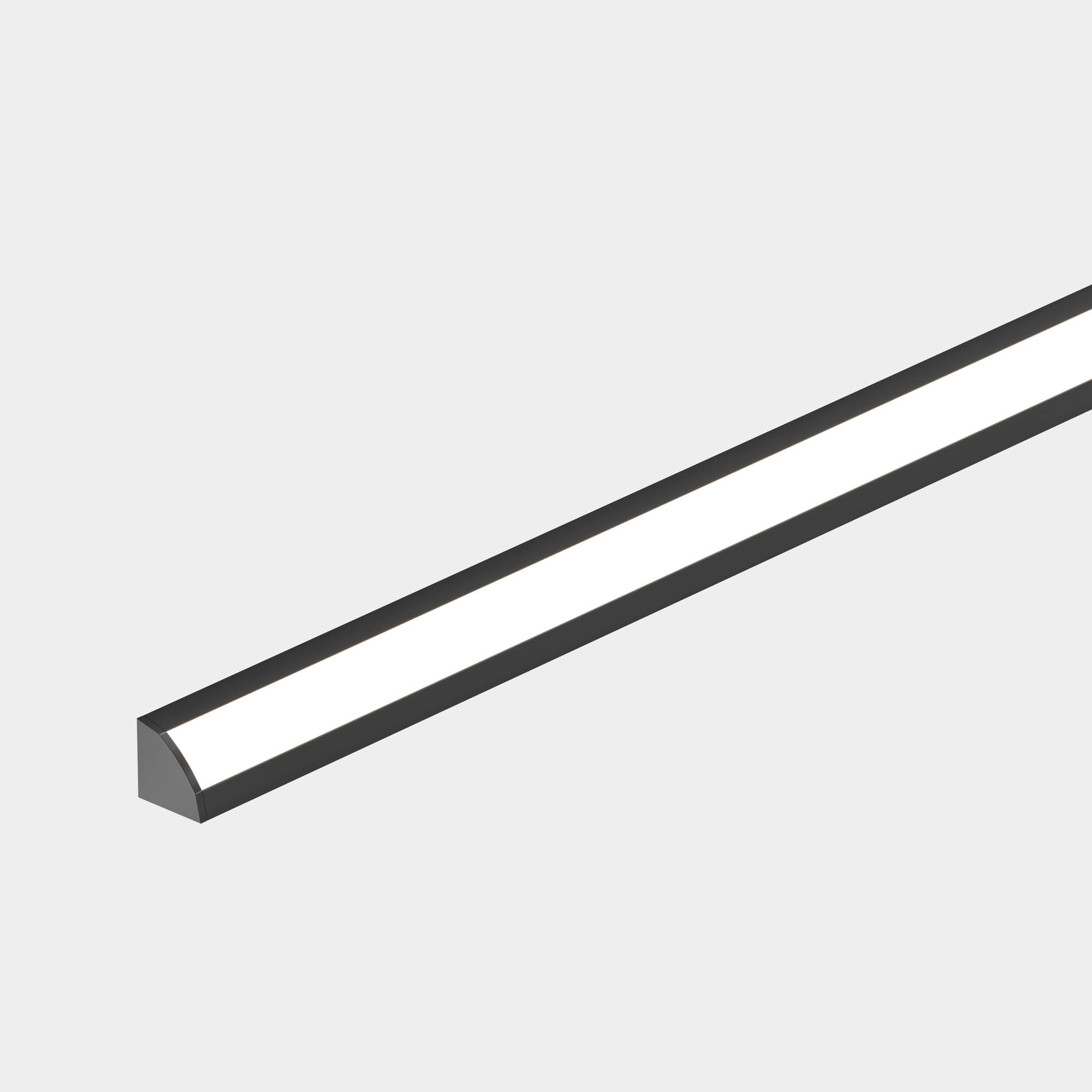

Kendo 45M Wet – Static White

Surface Mount Wet Location Linear 24V System

Overview

Specifications

24VDC Class 2 and IP68 rated for wet locations, fixtures made to order up to 128”.Fixtures can be linked up to 48’ depending on output
Suitable for undercabinet, millwork recessed, and surface mount applications
Dot free even illumination with frosted lens
High Color Quality options offer premium quality and vibrant colors with R9 values up to 97
High Efficacy options offer best in class output and efficacy with over 590 lm/ft and over 80 lm/W
Proprietary strong bond solder method handles up to 50 lbs of pull force on wire leads and connectors
3 Year warranty

CCT: 2700K, 3000K, 3500K, 4000K, 4100K
CRI: 95+
Output / ft: 159 lm/ft, 163 lm/ft, 220 lm/ft, 265 lm/ft, 294 lm/ft, 323 lm/ft, 472 lm/ft, 597 lm/ft
Mounting: Surface
Input Voltage: Line Voltage
Color: Static White
Wattage / ft: 1.9 W/ft, 2.8 W/ft, 3.5 W/ft, 4.8 W/ft, 6.0 W/ft, 6.5 W/ft, 7.5 W/ft
Rating: IP68
Lens Aperture: - 0.5 inch
Operating Temperature: 113 F, 122 F
Sustainability: Declare, JA8/Title 24, RoHS/Reach
Made In: Made in America
Warranty: 3 Years
Product Number: K45MW

JA8/Title 24

RoHS/Reach

Kendo 45M Wet Static White Spec

2.02 MB

PDF

Kendo 45M INSTALL

608.34 KB

PDF

KMW-48-30K-LL72VHO-G.IES

6.64 KB

IES

KMW-48-30K-LL72VHO-C.IES

1.62 KB

IES

KENDO M WET - FROSTED - LL72-VHO-30K_IES.IES

3.38 KB

IES

Lighting Luminii Kendo 45M Static White Array.rfa

532 KB

RFA

LuMinii Cross Reference LuMinii Optic Arts

2.6 MB

PDF
