Luminii

Linear Luminaires

Bosca Wet – Static White

Surface Mount Wet Location Linear 24V System

IP68
Overview
Specifications
  •  24VDC Class 2 and IP68 rated for wet locations, fixtures made to order up to 144”. Fixtures can be linked up to 48’ depending on output
  •  Suitable for undercabinet, millwork recessed, and surface mount applications
  •  Dot free even illumination with frosted lens
  •  High Color Quality options offer premium quality and vibrant colors with R9 values up to 97
  •  High Efficacy options offer best in class output and efficacy with over 450 lm/ft and over 60 lm/W
  •  Proprietary strong bond solder method handles up to 50 lbs of pull force on wire leads and connectors
  •  3 Year warranty
  • CCT: 2700K, 3000K, 3500K, 4000K
  • CRI: 95+
  • Output / ft: 125 lm/ft, 129 lm/ft, 174 lm/ft, 209 lm/ft, 232 lm/ft, 254 lm/ft, 372 lm/ft, 471 lm/ft
  • Mounting: Surface
  • Input Voltage: Line Voltage
  • Color: Static White
  • Wattage / ft: 1.9 W/ft, 2.8 W/ft, 3.5 W/ft, 4.8 W/ft, 6.0 W/ft, 6.5 W/ft, 7.5 W/ft
  • Rating: IP68
  • Lens Aperture: 0.37 inch
  • Operating Temperature: 122 F

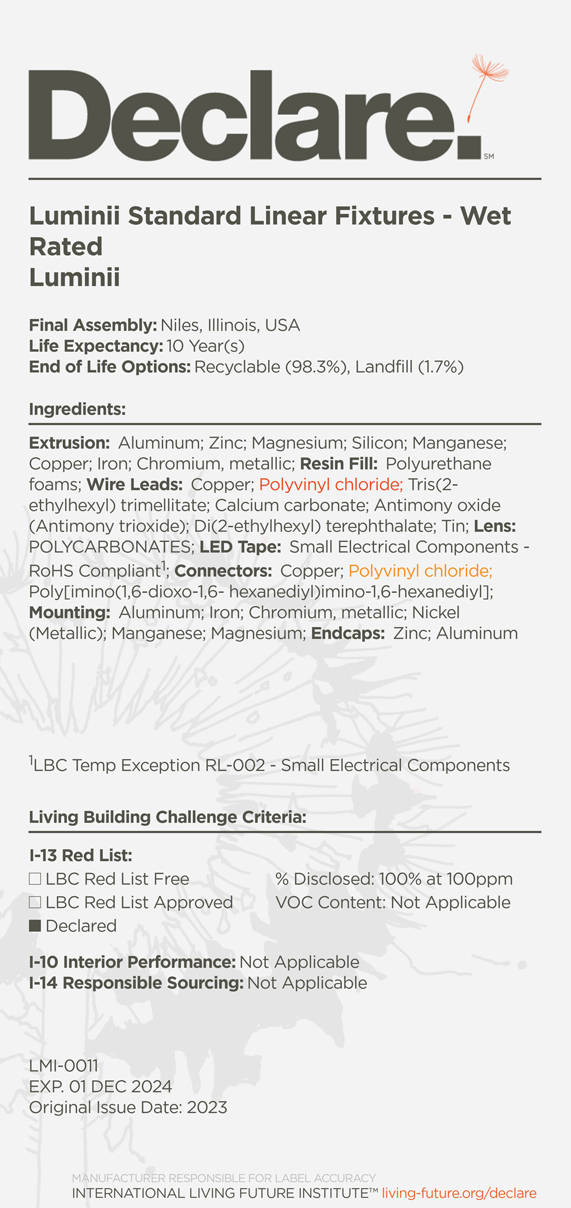

  • Sustainability: Declare, JA8/Title 24, RoHS/Reach
  • Made In: Made in America
  • Warranty: 3 Years
  • Product Number: BOS
Specsheets
Install Guides
IES Files
Revit Files
Cross Reference Guide
Bosca Wet Static White Spec
9.47 MB
PDF
Bosca Wet Instructions
799.37 KB
PDF
BOSW-48-30K-LL72VHO-G.IES
6.77 KB
IES
BOSW-48-30K-LL72VHO-F.IES
1.61 KB
IES
Lighting Luminii Bosca static white wet Array.rfa
540 KB
RFA
LuMinii Cross Reference LuMinii Optic Arts
2.6 MB
PDF
