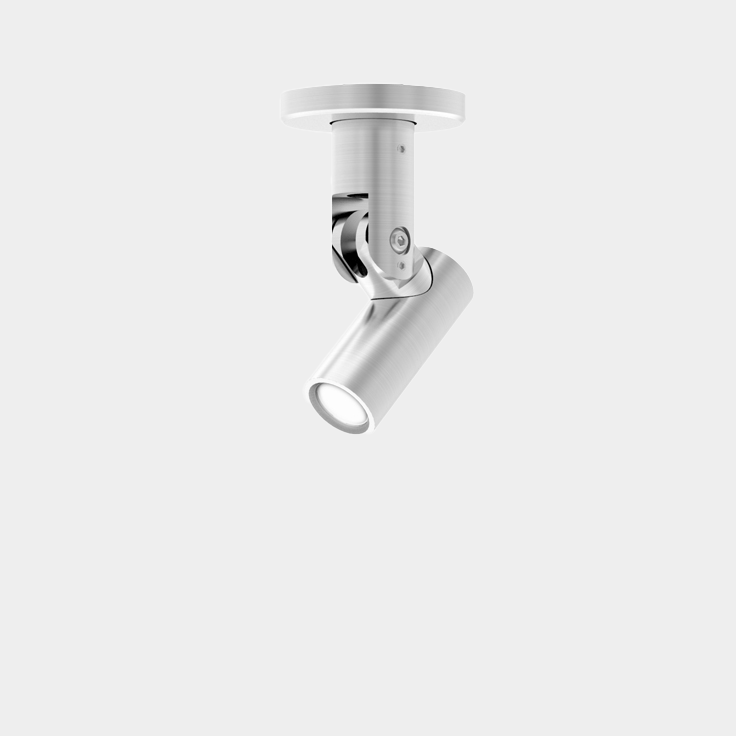

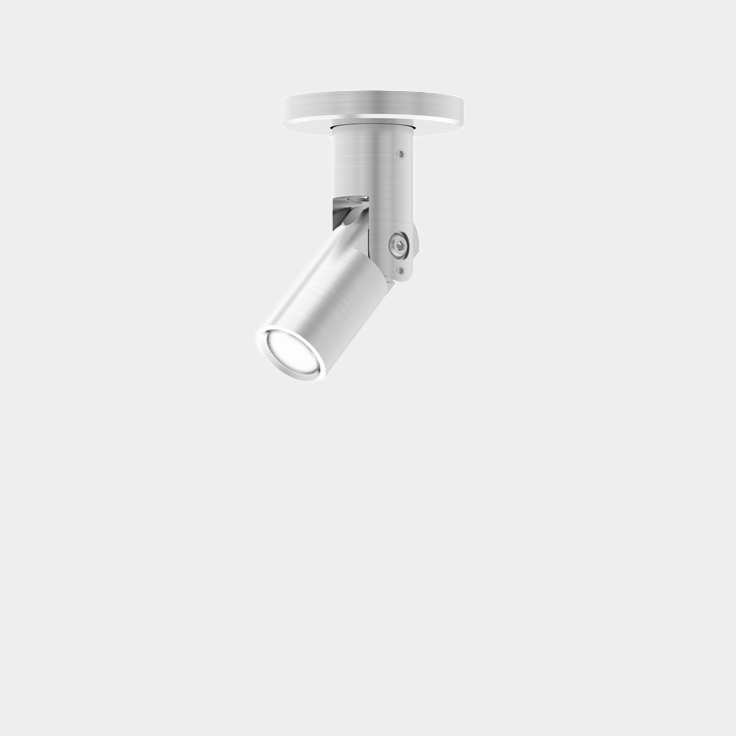

Atto T Jack is a Constant Current single source LED spotlight that is machined from aerospace grade aluminium 6063-T6 and comes as standard in white, black and brushed aluminium along with three premium brass finishes. It has four site-changeable optics for flexible beam distribution and is fully adjustable with lockable 360° pan and 180° tilt. The narrow beam in our 1.12W 102lm module has a peak intensity of 794cd. A snoot and accessory holder is available separately.The luminaire is compatible with our Minipoint system that enables a plug and play setup where luminaires can be swapped to suit changing lighting requirements.

TECHNICAL

IP RATING: IP20
MATERIAL: Machined AL 6063-T6 | Machined Brass
FINISH: Brushed Aluminium | White RAL9010 | Matte Black Anodised | Rubbed Bronze* | Polished Brass* | Brushed Brass *
MOUNTING: Minipoints
CUT OUT: ø18mm (0.71″) minipoint
CEILING THICKNESS:30mm (1.18″) max
PAN: 360˚
TILT: 180˚
WEIGHT: 18g | 0.04lb
WATTAGE: 1.12W
FORWARD VOLTAGE: 3.2V
DRIVE CURRENT: 350mA
SUPPLY TYPE: Constant Current
DRIVER LOCATION: Remote
DIMMING: DALI | 0-10V | 1-10V
WARRANTY: 5 Years
LISTING CONFORMITY: ETL USA & Canada, UKCA, CE Europe

*Premium finishes

OPTICAL

NOMINAL LUMEN OUTPUT: 102lm
DELIVERED LUMEN OUTPUT: 94lm
COLOUR TEMPERATURE: 2700K | 3000K
CRI: 95 TYP
TM-30: RF: 93 RG: 99
BEAM ANGLES: 16 | 23 | 45 | 90
ACCESSORIES: Snoots
