Linear Luminaires

New

Krest Wash

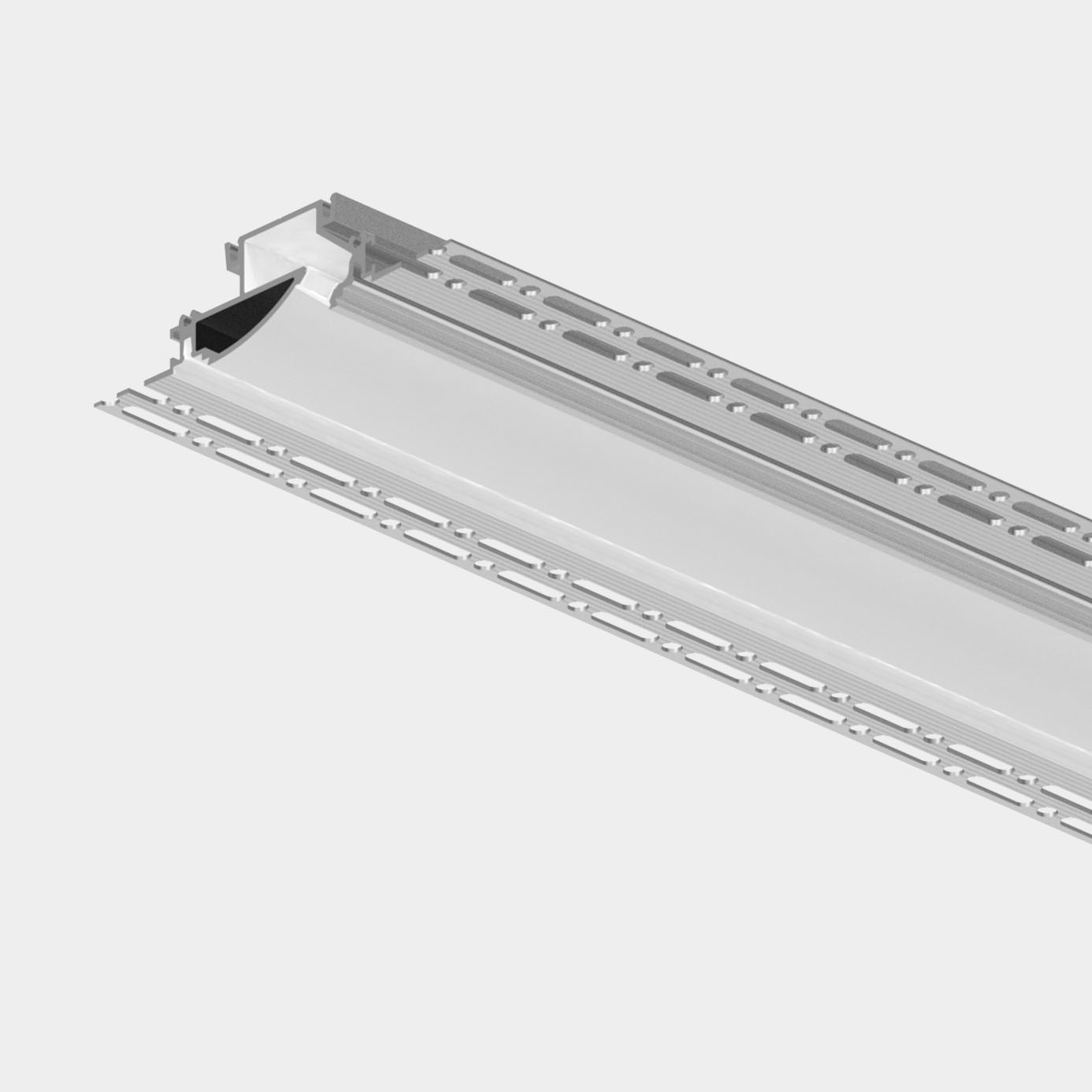

Mud-in Wall Wash Linear Luminaire

Warm DimTunable WhitePixelRGB/RGBWDamp
Overview
Specifications

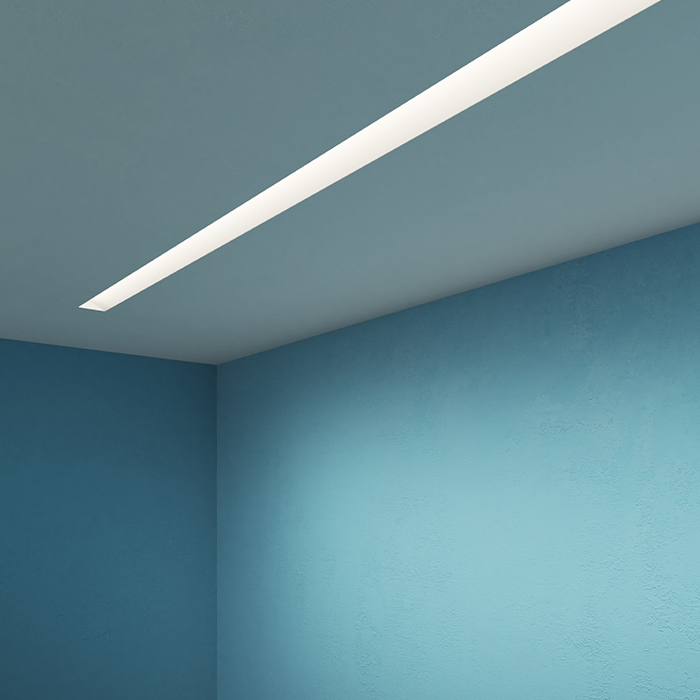

Krest Wash is a recessed mud-in wall wash system designed to deliver uniform vertical illumination with exceptional consistency and control. Its integrated optical geometry eliminates common issues such as hot spots, glare, and shadow lines near the ceiling, creating a smooth, even wash across the entire wall surface. As part of the Krest system, Wash is specified as a complete solution—streamlining design, simplifying installation, and ensuring predictable performance across applications. It is powered by Luminii’s LineLED platform, offering a range of outputs and color temperatures with reliable, high-quality light.

  • Output Per: 377.2 lm/m, 115 lm/ft, 452.6 lm/m, 138 lm/ft, 455.9 lm/m, 139 lm/ft, 482.2 lm/m, 147 lm/ft, 518.2 lm/m, 158 lm/ft, 583.8 lm/m, 178 lm/ft, 616.8 lm/m, 188 lm/ft, 642.9 lm/m, 196 lm/ft, 649.4 lm/m, 198 lm/ft, 767.5 lm/m, 234 lm/ft, 829.8 lm/m, 253 lm/ft, 849.7 lm/m, 259 lm/ft, 866.1 lm/m, 264 lm/ft, 1030.2 lm/m, 314 lm/ft, 1036.5 lm/m, 316 lm/ft, 1230.3 lm/m, 375 lm/ft, 1361.2 lm/m, 415 lm/ft, 1371 lm/m, 418 lm/ft, 1633.8 lm/m, 498 lm/ft, 1686.4 lm/m, 514 lm/ft, 190.3 lm/m, 58 lm/ft, 2030.3 lm/m, 619 lm/ft, 210 lm/m, 64 lm/ft, 249.3 lm/m, 76 lm/ft, 278.8 lm/m, 85 lm/ft, 311.6 lm/m 95 lm/ft
  • Mounting: Conduit, Mud-In
  • Type: Linear Fixture
  • Input Voltage: Low Voltage
  • CCT: 1800K, 1800K-2400K, 1800K-2700K, 1800K-3000K, 2200K, 2400K, 2700K, 2700K-6500K, 3000K, 3500K, 4000K, 4100K, RGB3000K
  • Color: Pixel, RGB/RGBW, Static White, Tunable White, Warm Dim
  • CRI: 98
  • Wattage Per: 3.3 W/m, 1 W/ft, 32.8 W/m, 10 W/ft, 6.7 W/m, 2 W/ft, 9.8 W/m, 3 W/ft, 13.1 W/m, 4 W/ft, 16.4 W/m, 5 W/ft, 19.7 W/m, 6 W/ft, 23 W/m, 7 W/ft, 26.3 W/m, 8 W/ft, 29.5 W/m 9 W/ft
  • Rating: Damp
  • Lens Aperture: 0.61 inch
  • Lens: Frosted Lens
  • Operating Temperature: -4°F to 104°F, -4°F to 113°F, -20-50 C, -4°F to 122°F, -4°F to 95°F
  • Sustainability: Declare, JA8/Title 24, RoHS/Reach
  • Warranty: 7 years
  • Finishes: White
  • US Made: BAA, BABA, Made in U.S.A
  • Product Number: KREST-WASH
Available tools: Power Consumption Compatibility Tool
Specsheets
Install Guides
Cross Reference Guide
DWG CAD
IES Files
Krest Wash System Static White Specsheet
6.37 MB
PDF
Krest Wash System Dynamic Color Specsheet
7.39 MB
PDF
Mini CONNECTOR Instructions
352.6 KB
PDF
Krest Wash Installation Guide
5.01 MB
PDF
Luminii Cross Reference Luminii Optic Arts
PDF
Krest Wash 2D Dimensions
1.5 MB
DWG
KREST-WASH-H1-STR-48-VC72VHO-30K-F-GDS-WH
15.12 KB
IES
