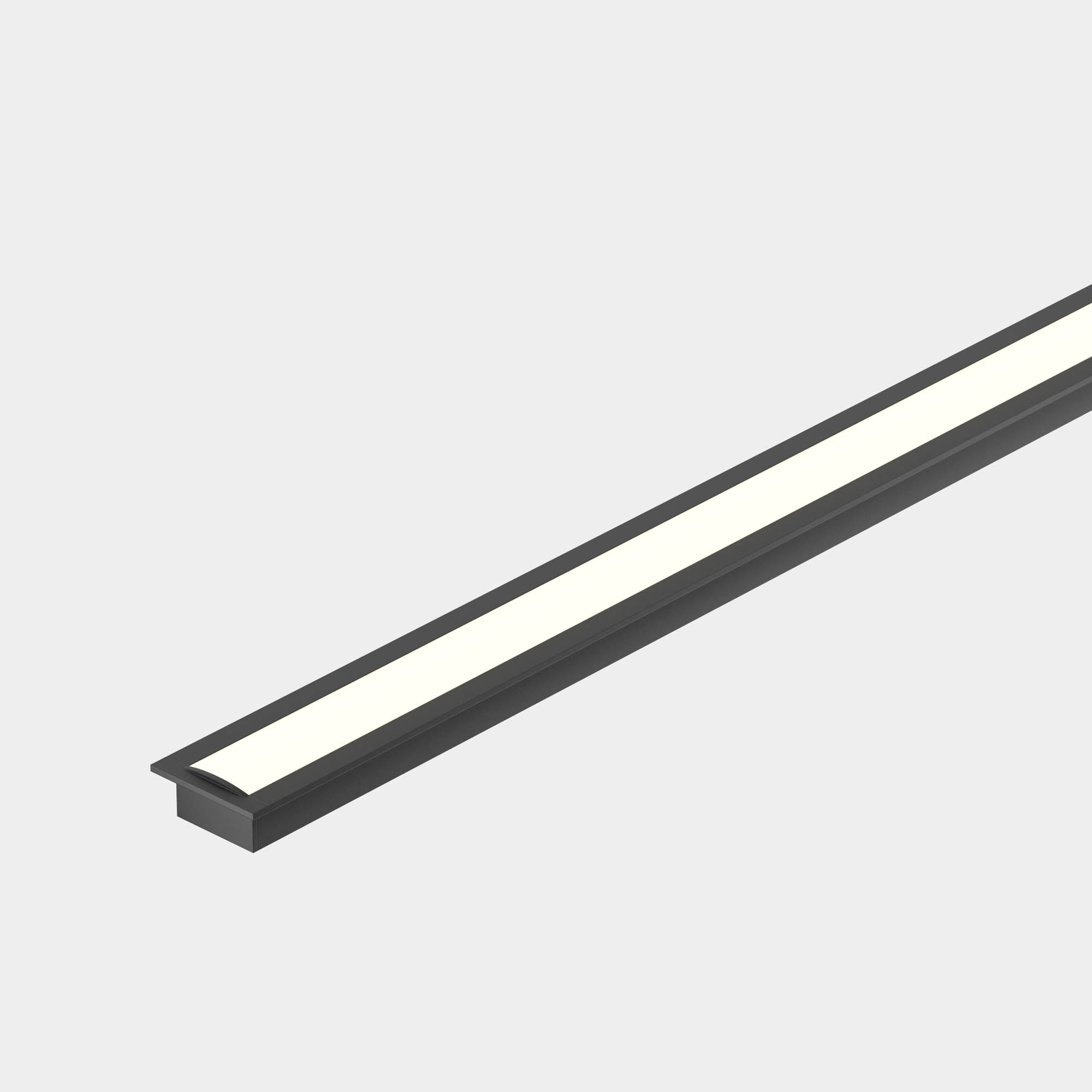

Kendo S Recessed - Static White

Kendo S Recessed – Static White

Recessed Linear 24V System

Overview

Specifications

24VDC Class 2 fixtures made to order up to 144 inches. Fixtures can be linked up to 35 feet depending on output
Suitable for undercabinet, millwork ground recessed, and ceiling recessed applications
Approved for closet/storage space installation per NEC 410.16(A)(3) and 410.16(C)(5)
Dot free even illumination achievable in SOHD & VHO with frosted lens
Vibrant colors with R9 values up to 98
Single micro binned LEDs +/- 30 CCT
Dims with minimal color shift
Class 2 listed for damp locations
Proprietary strong bond solder method handles up to 50lbs of torque on wire leads and connectors

CCT: 1900K, 2200K, 2400K, 2500K, 2700K, 3000K, 3500K, 4000K, 4100K
CRI: 98
Output / ft: 228 lm/ft, 234 lm/ft, 316 lm/ft, 381 lm/ft, 422 lm/ft, 463 lm/ft, 677 lm/ft, 857 lm/ft
Mounting: Surface
Input Voltage: Line Voltage
Color: Static White
Wattage / ft: 1.9 W/ft, 2.8 W/ft, 3.5 W/ft, 4.8 W/ft, 6.0 W/ft, 6.5 W/ft, 7.5 W/ft
Lens Aperture: 0.47 inch
Operating Temperature: 104 F, 113 F, 122 F, 95 F
Sustainability: Declare, JA8/Title 24, RoHS/Reach
Made In: Made in America
Warranty: 5 Years
Product Number: KRS
