Factory Bendable Linear

iLight Plexineon Rings Catenary Static Color

Factory Bendable Catenary Mount Ring 24V System

Static White, Monochrome

Static White, Monochrome

IP67
Overview
Specifications

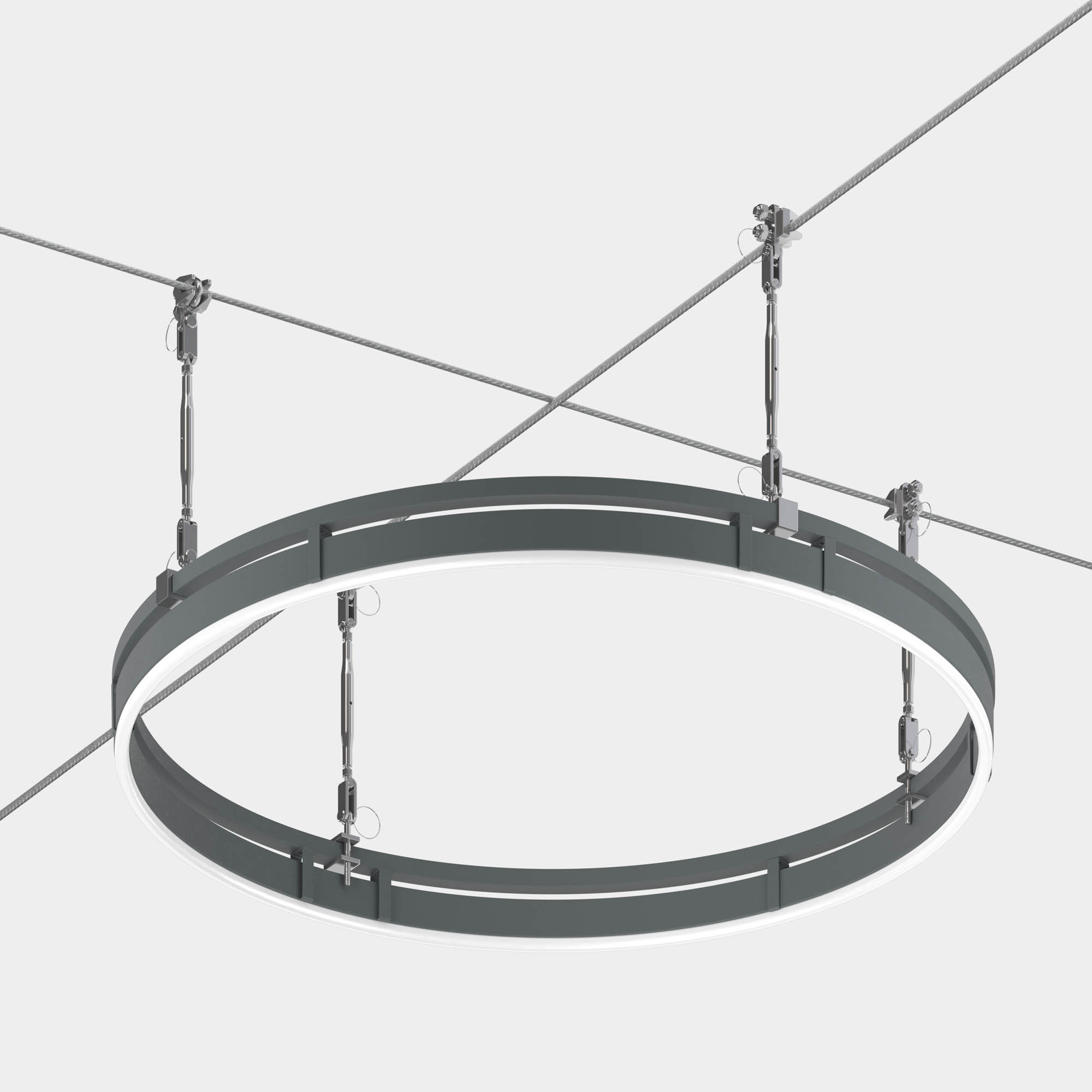

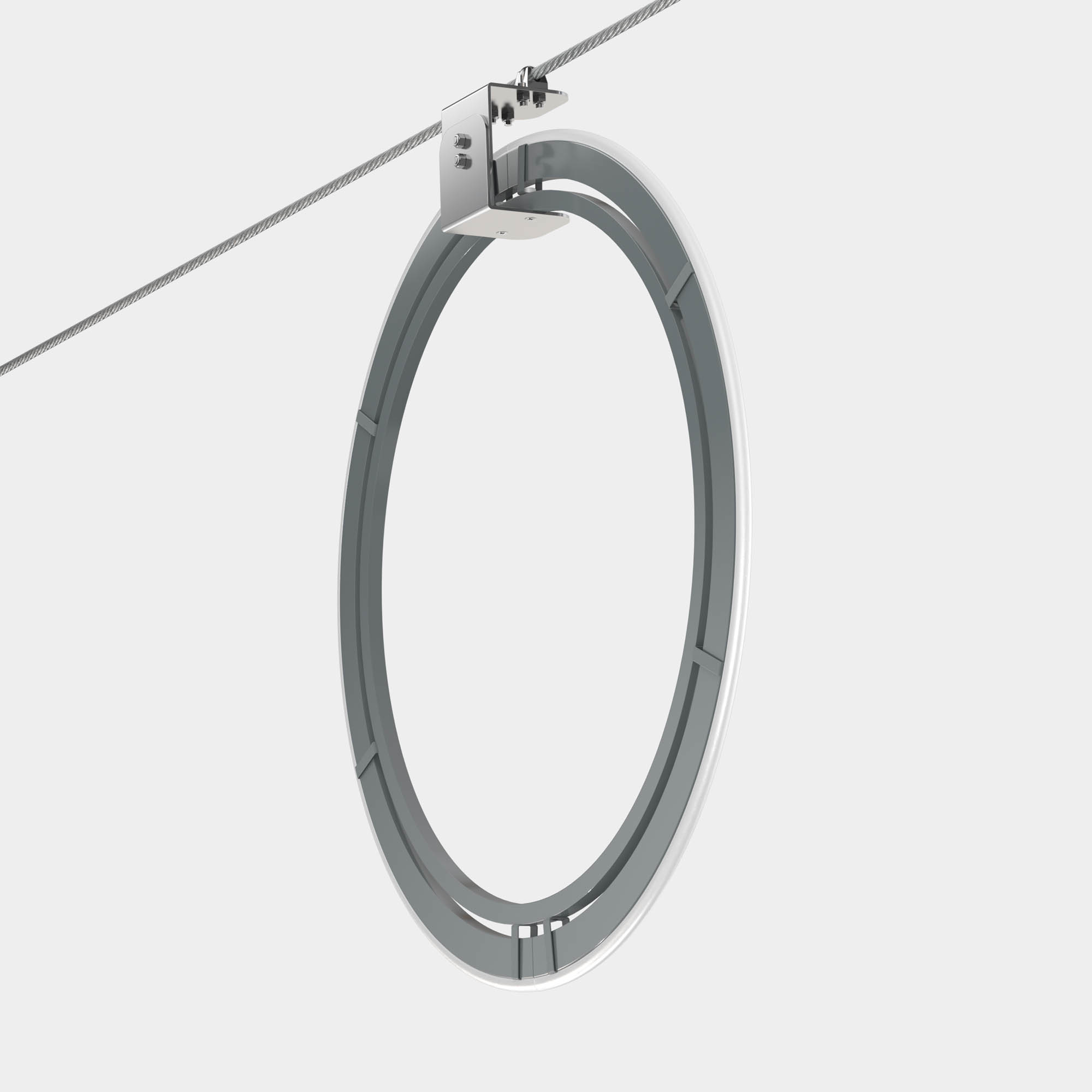

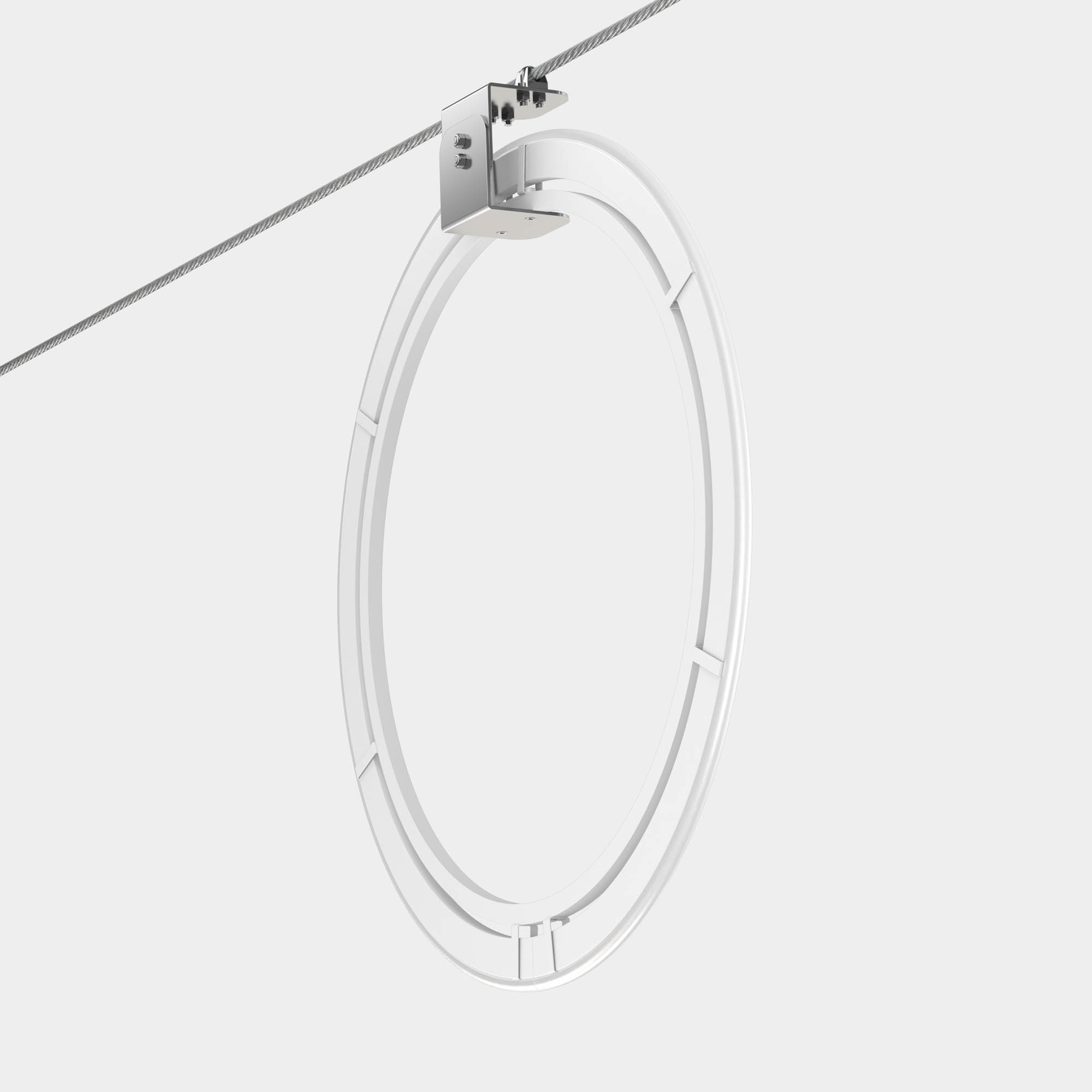

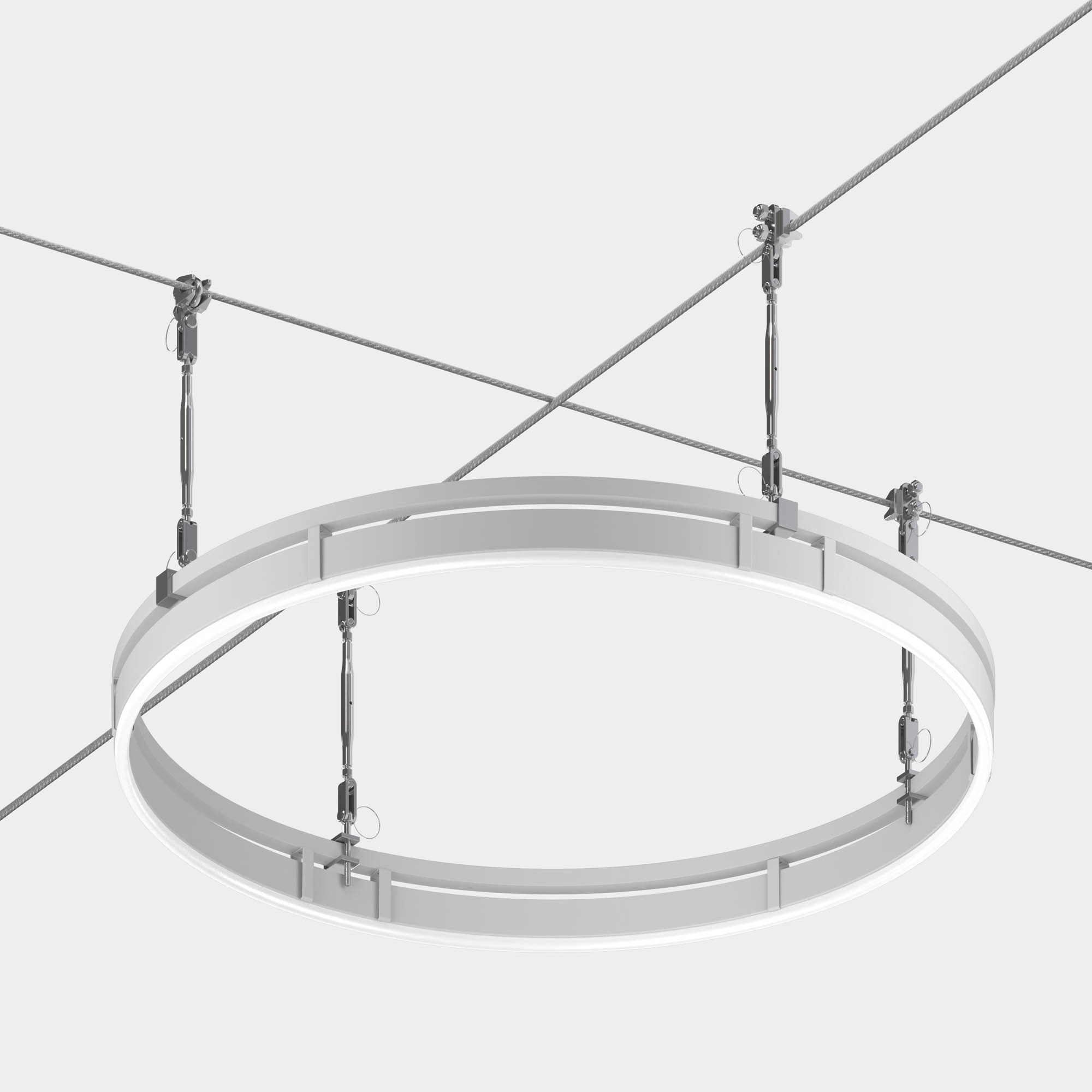

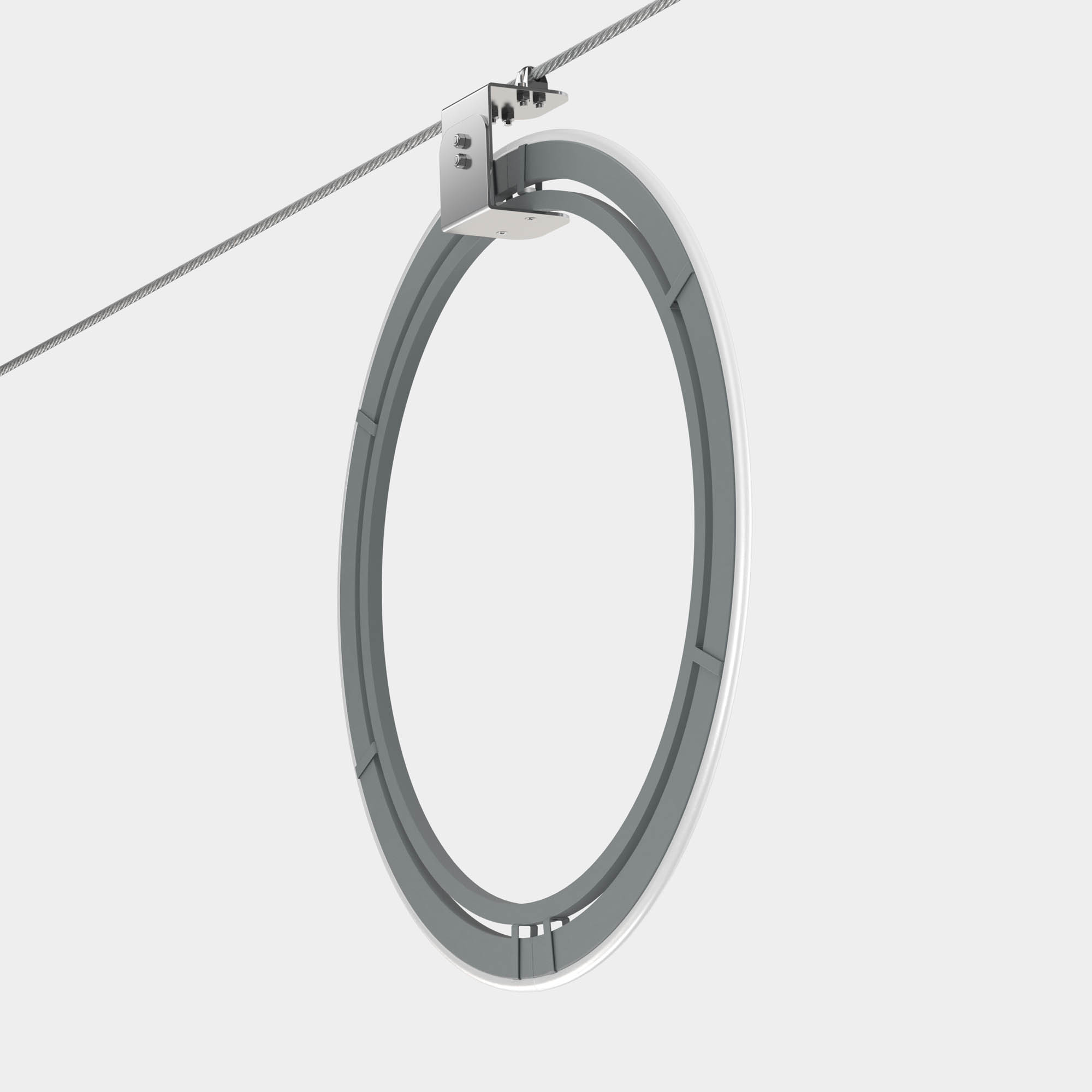

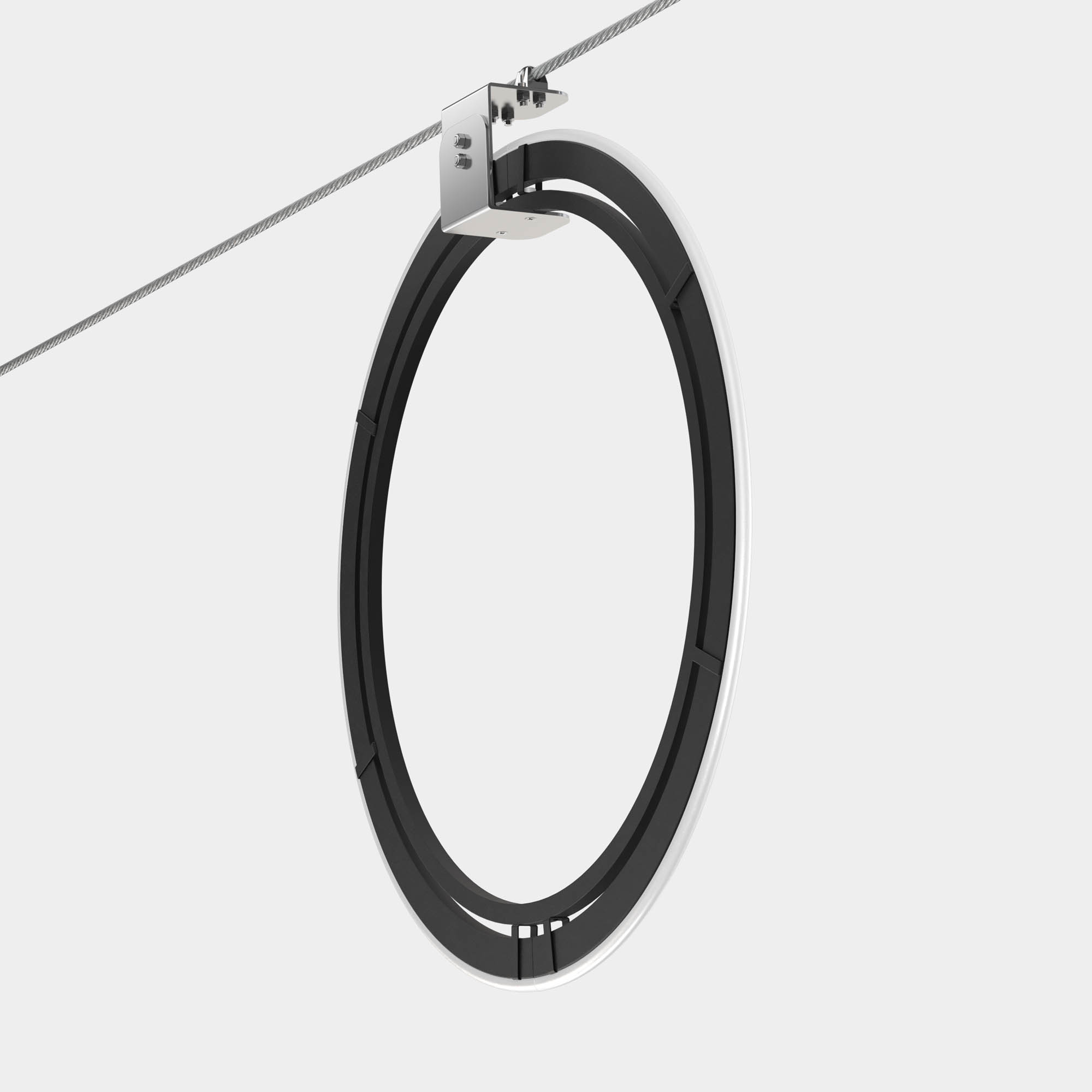

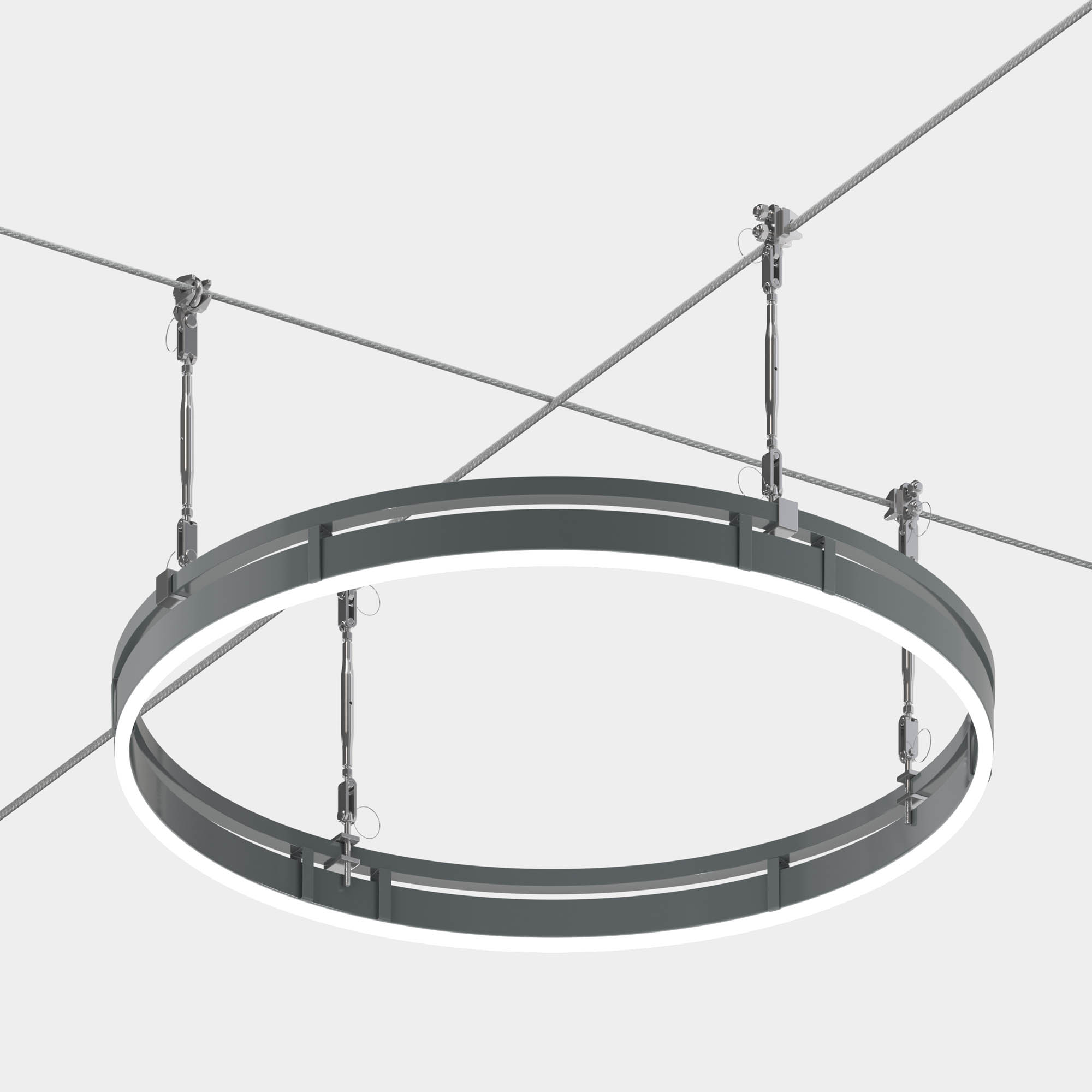

Plexineon Ring Catenary Static Color is an architectural-grade rigid ring mount luminaire offering an unparalleled alternative to neon lighting. Our customizable, made-to-order products adapt to complex applications and come in horizontal and vertical ring orientations, as well as many finishes. The versatile catenary mounting system suspends light gracefully above open spaces. This frees you from traditional mounting limitations, enabling bold, floating lines of illumination that turn plazas, streetscapes, and atriums into captivating visual experiences. Static Color provides vivid, static single-color illumination in a durable, weather-resistant housing for outdoor and open-air environments. Dot-free output, 24VDC.

  • Finishes: Black, Gloss Grey, Matt Grey, White
  • CCT: 2700K, 3000K, 3500K, 4000K
  • CRI: 90+
  • Output: 104 lm, 1056 lm, 1131 lm, 1159 lm, 1169 lm, 132 lm, 1810 lm, 1885 lm, 207 lm, 226 lm, 2262 lm, 2318 lm, 2337 lm, 264 lm, 3770 lm, 415 lm, 452 lm, 4524 lm, 4637 lm, 4675 lm, 471 lm, 528 lm, 565 lm, 584 lm, 829 lm, 905 lm, 9274 lm, 942 lm
  • Mounting: Catenary
  • Type: Bendable
  • Bend Type: Ring
  • Color: Monochrome, Static White
  • Wattage: 101.8 W, 105.6 W, 109.3 W, 11.3 W, 113.1 W, 120.6 W, 13.2 W, 14.1 W, 196 W, 218.7 W, 22.6 W, 24.5 W, 241.3 W, 25.4 W, 26.4 W, 27.3 W, 28.3 W, 30.2 W, 45.2 W, 49 W, 50.9 W, 52.8 W, 54.7 W, 56.5 W, 60.3 W, 90.5 W, 98 W
  • Rating: IP67
  • Lens Aperture: 10.2 mm 0.40 inch
  • Size: 10.2 mm 0.40 in
  • Height: 36.576 mm 1.44 in
  • Lens: Frosted
  • Operating Temperature: 40-60 C -40°F to 140°F
  • Sustainability: RoHS/Reach
  • Manufacturing Details: Made in America
  • Warranty: 3 Years
  • Product Number: PX
Specsheets
Install Guides
Plexineon Catenary Ring Static Mono Specsheet
PDF
Plexineon Catenary Static Color Install Guide
PDF
