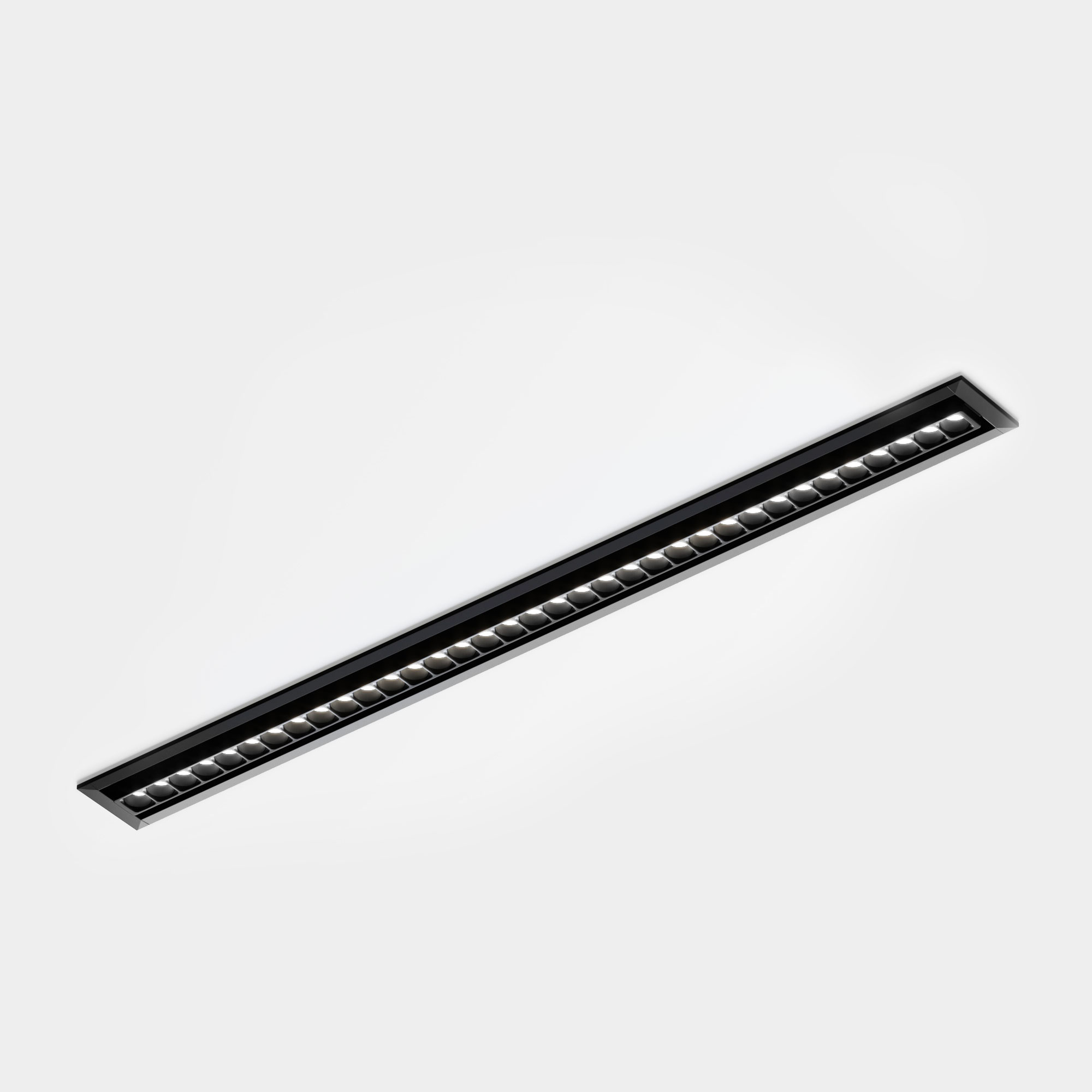

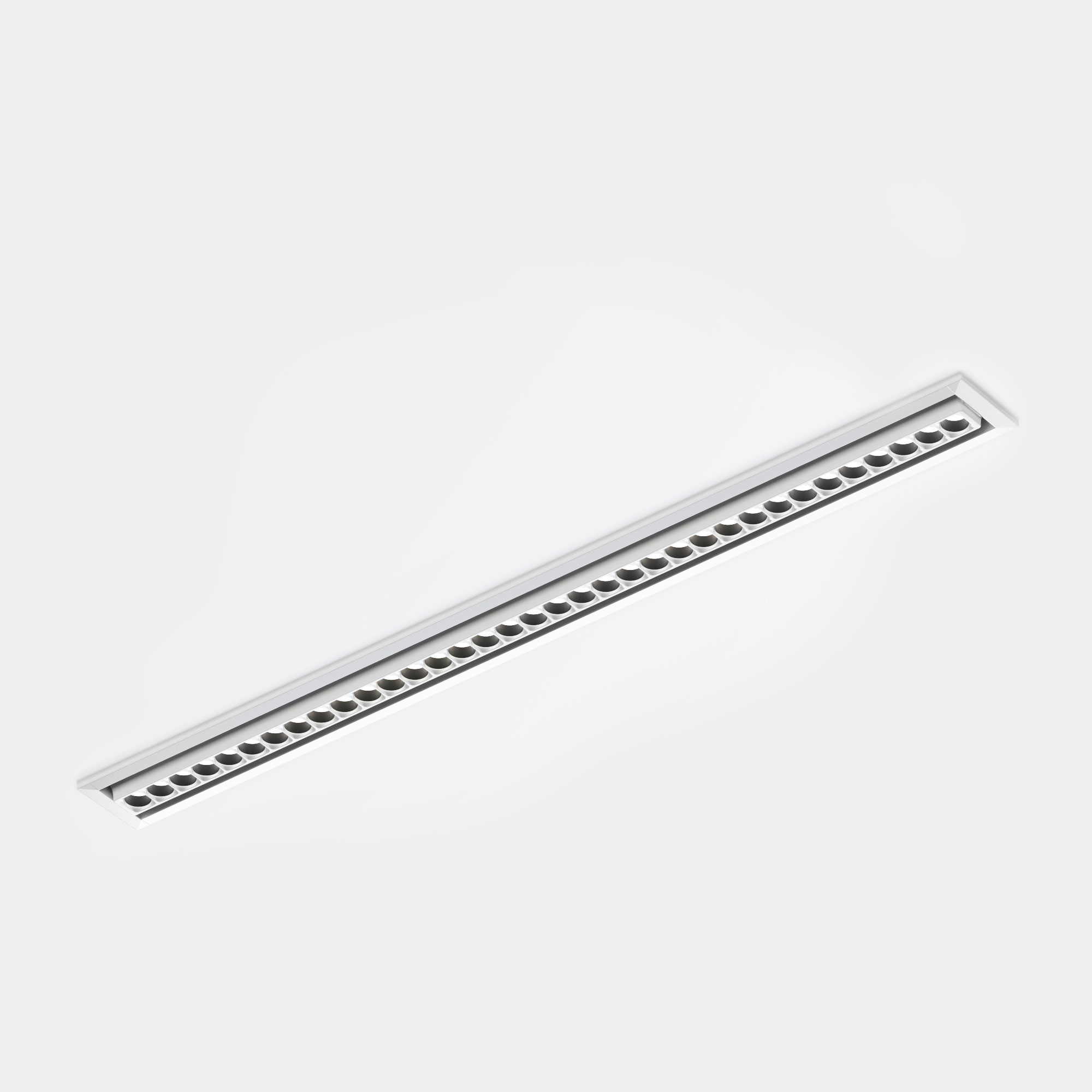

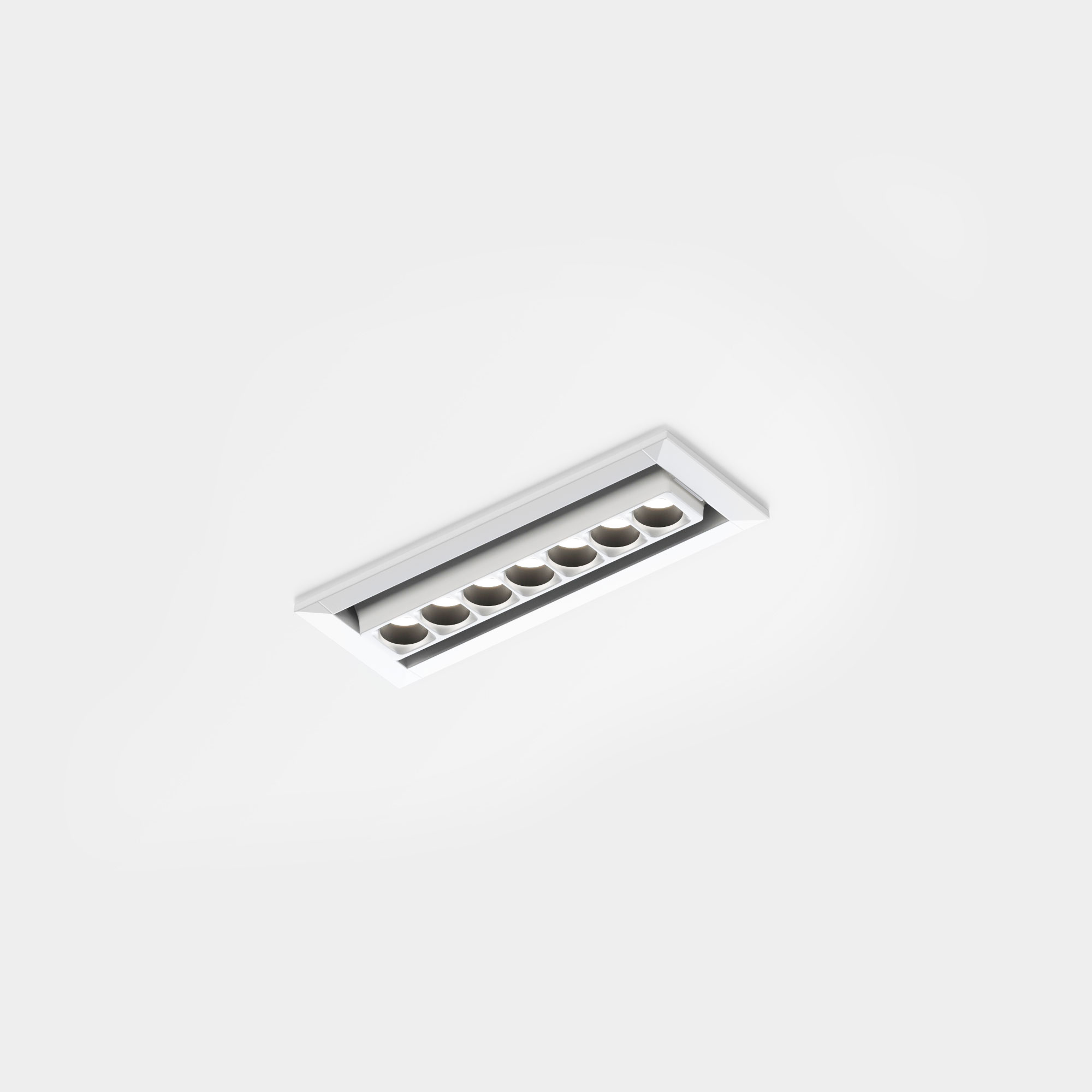

STENOS 12 Inch Linear Trimmed

Recessed Micro Optic

Overview
Specifications

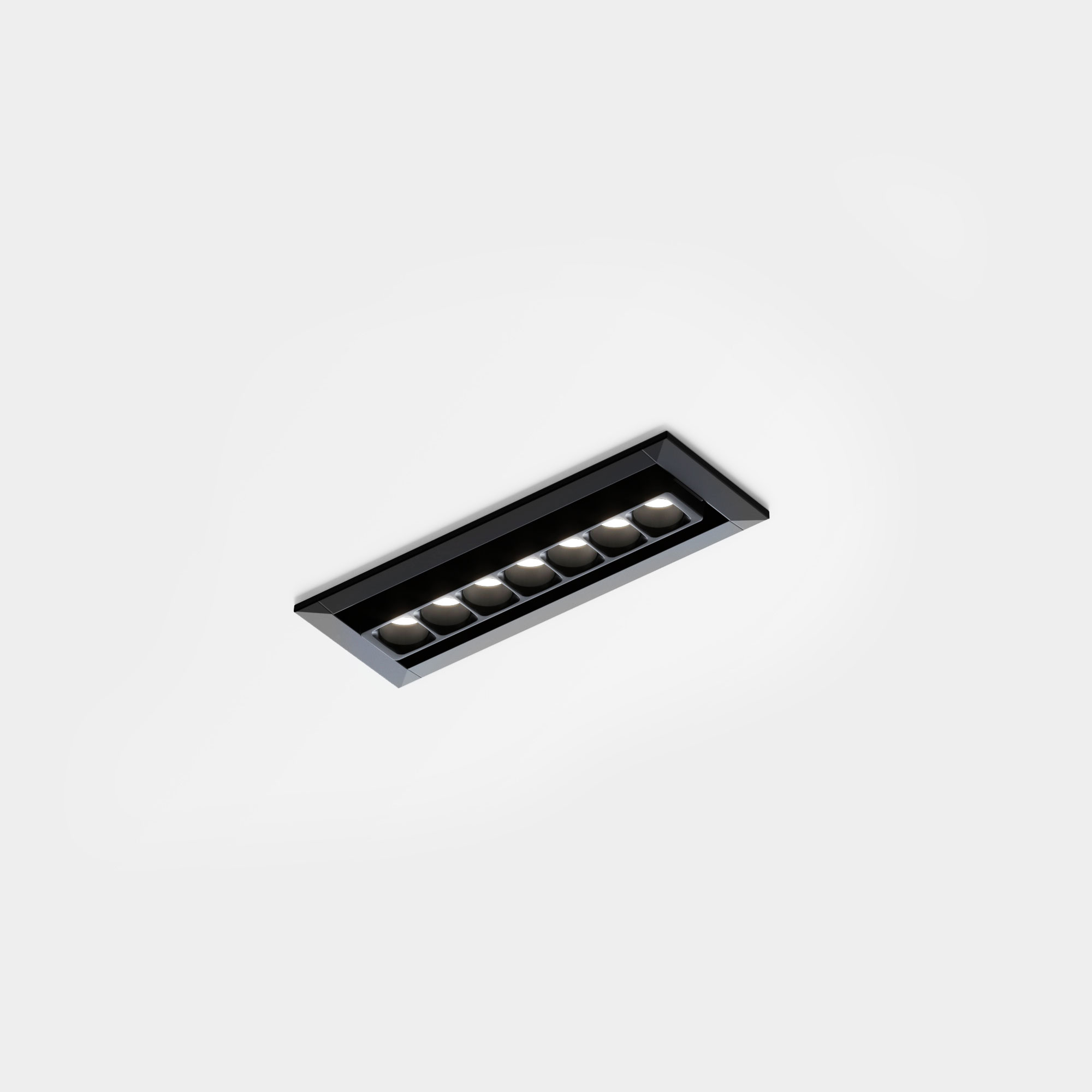

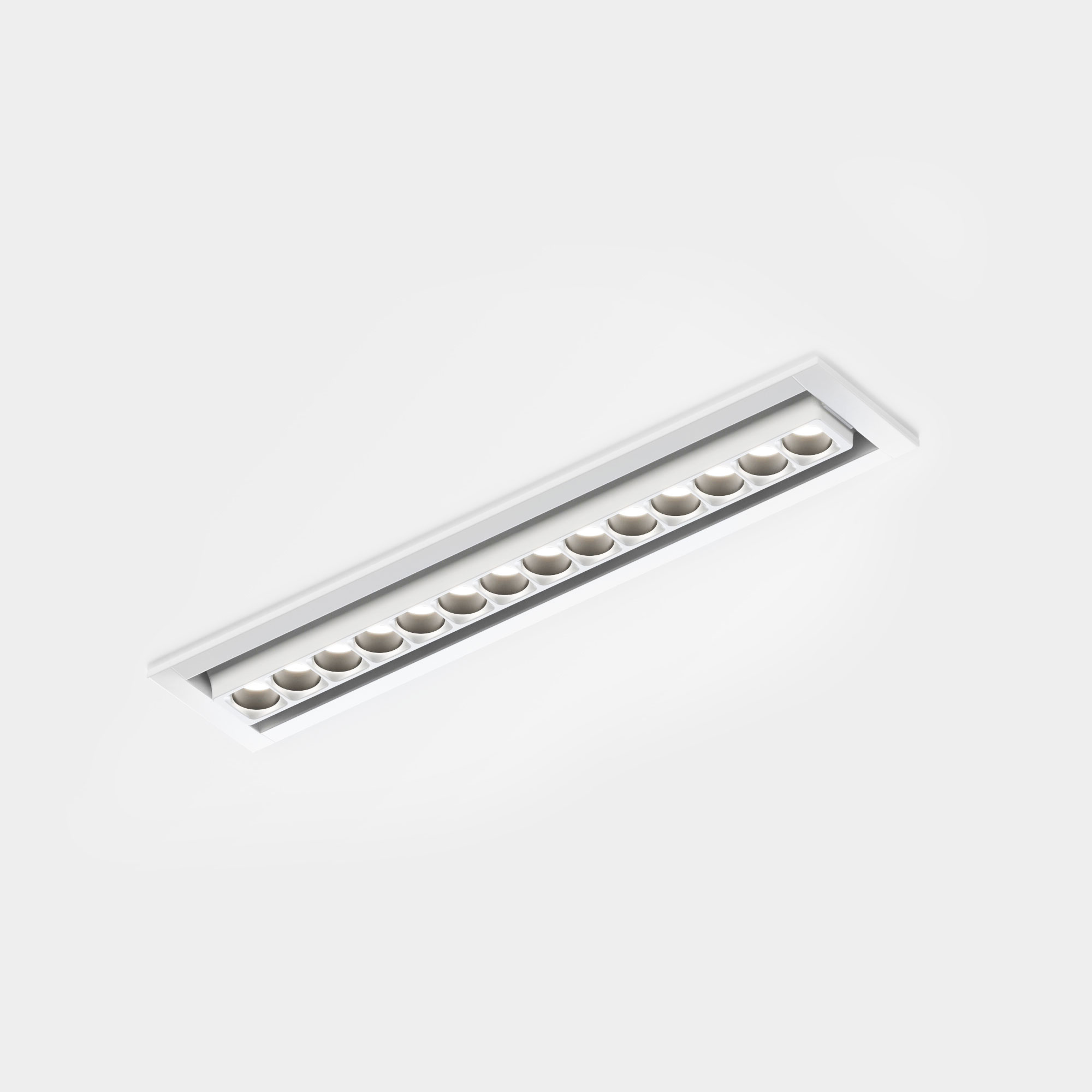

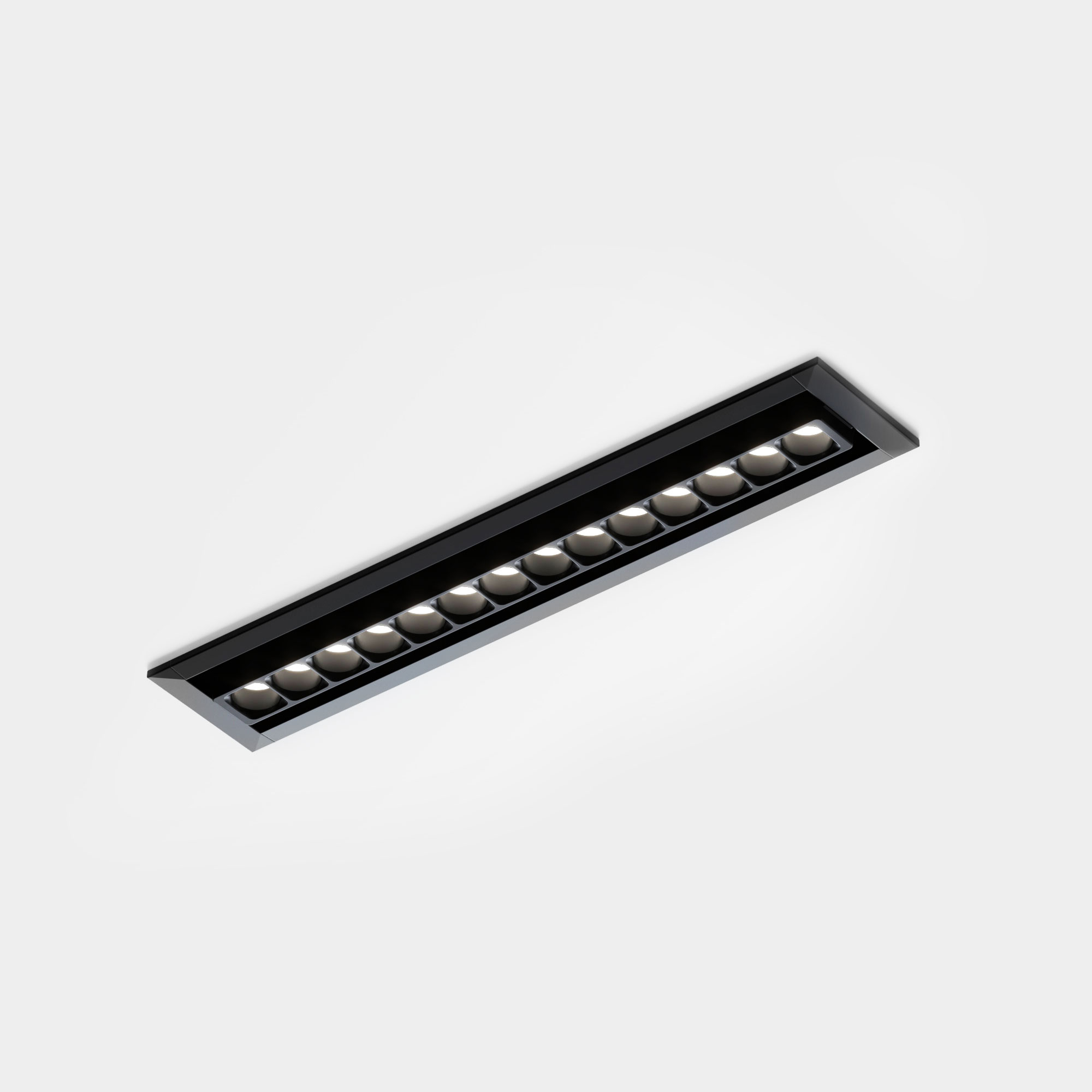

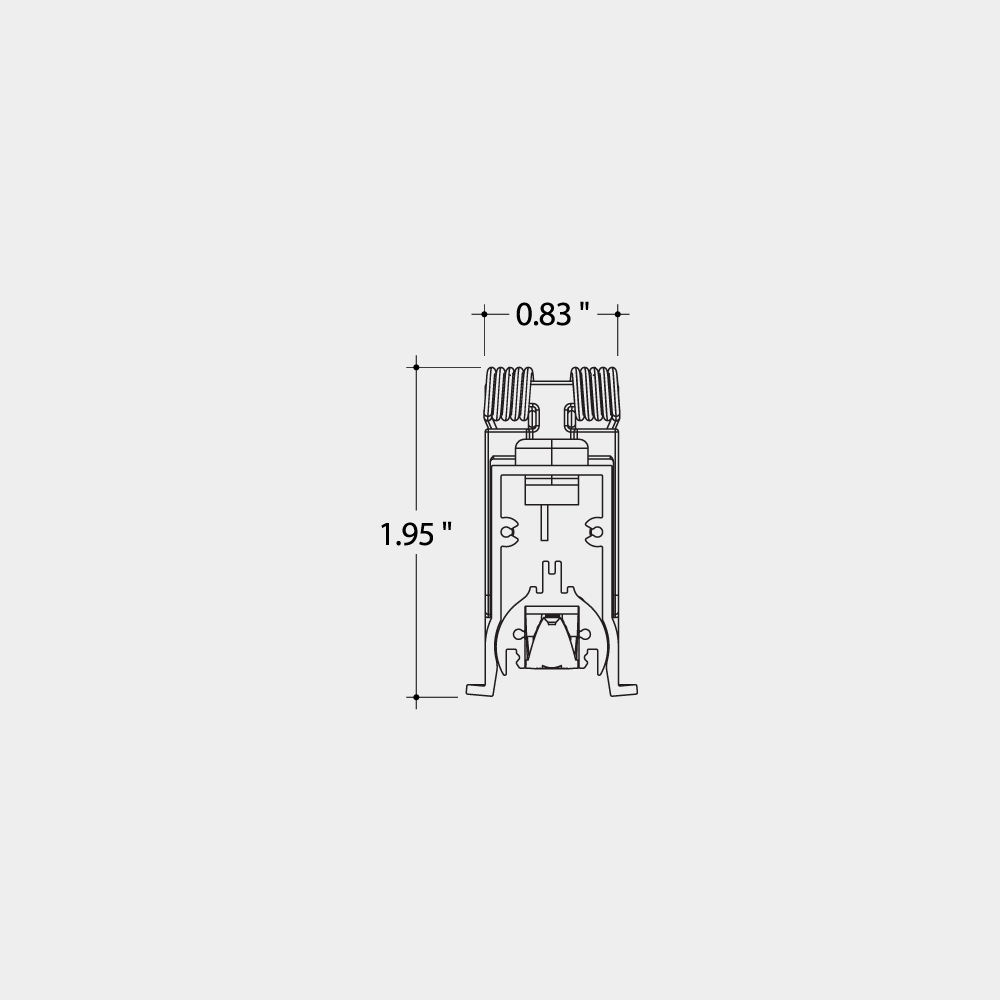

Design beautiful environments with the STENOS Trimmed Linear Downlight system. The small yet mighty family of downlight fixtures delivers flawless beam quality from a unique and architecturally designed form factor. The STENOS architecturally designed linear downlight portfolio is uniquely small, consisting of three (3”, 5”, 12”) * discrete linear downlight options just over an inch wide (1.05”) and under two inches tall, producing an output range of 250-1260 lumens.

All options feature perfect beam quality featuring a +/- 30° aimable tilt and beam shaping accessories providing a wide range of flexibility for any project. STENOS downlights feature a constant voltage design that enables multiple fixtures to operate from a single power supply, resulting in a simplified installation and overall cost savings. Further customize beam shape with optional beam shaping and widening STENOS Easy Snap lenses and louvers, available in multiple highly flexible size options.

  • CCT: 2700K, 3000K, 3500K, 4000K
  • CRI: 90+
  • Output: 1324 lm, 275 lm, 546 lm, 583 lm
  • Function: Adjustable
  • Type: Downlight
  • Shape: Rectangular
  • Color: Static White
  • Wattage: 13.0 W, 2.6 W, 5.4 W
  • Accessories: Louver
  • Aperture Size: 0.5 inch
  • Trim: Trimmed

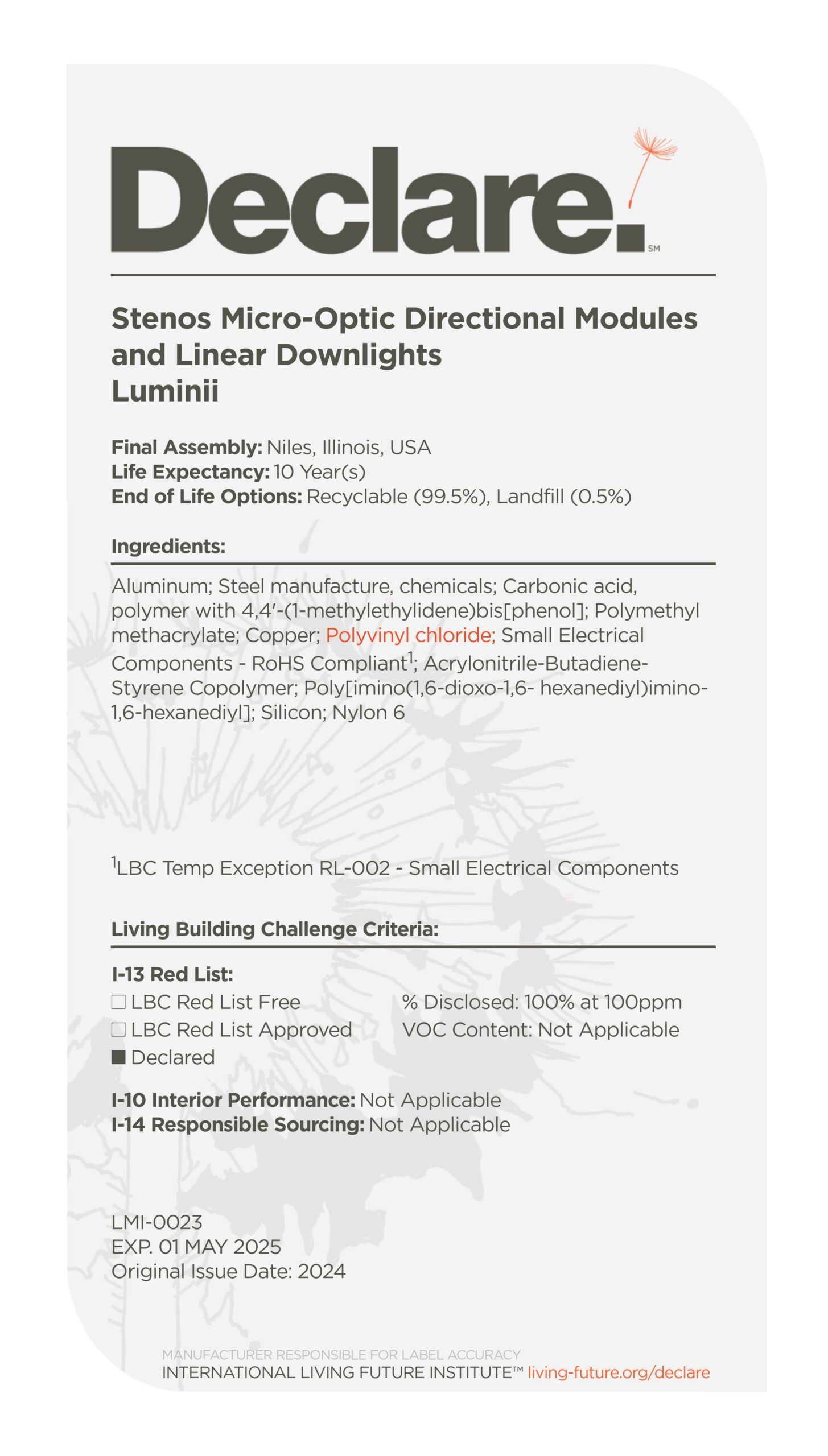

  • Sustainability: JA8/Title 24, RoHS/Reach
  • Warranty: 5 Years
  • Product Number: SD
