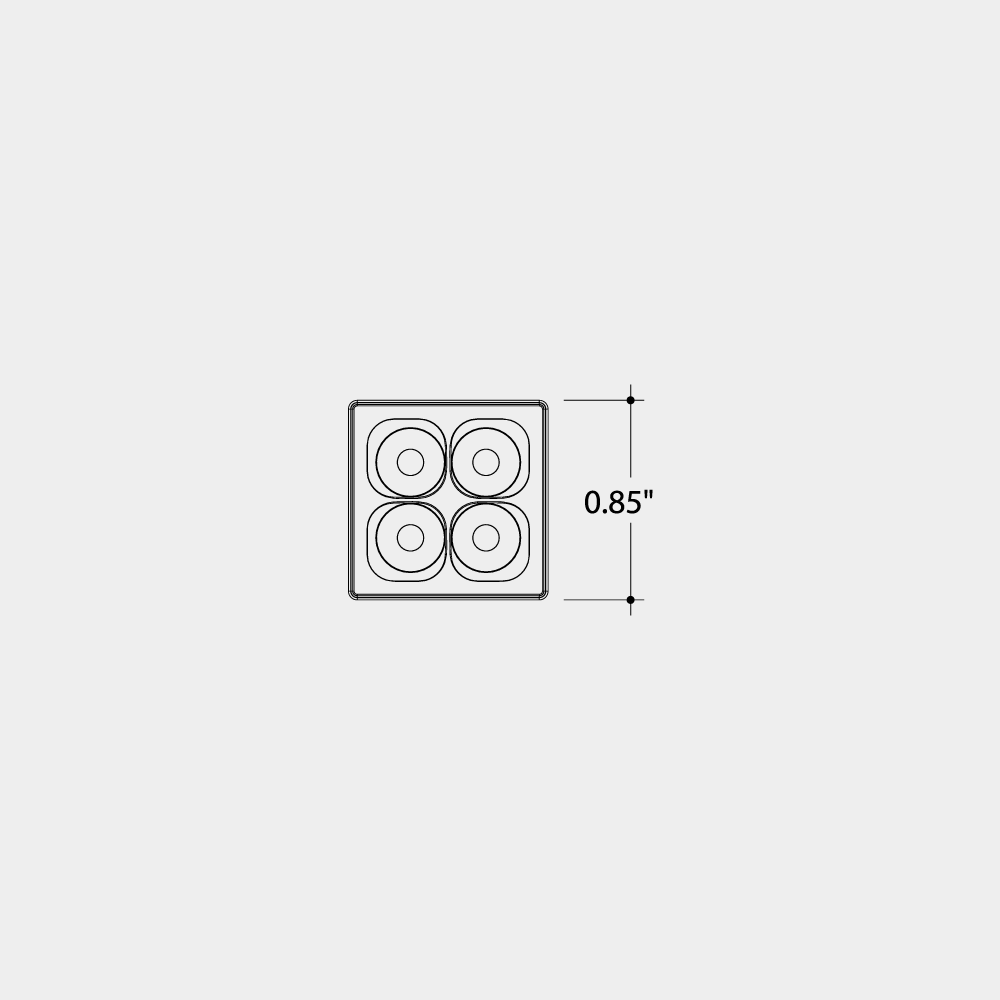

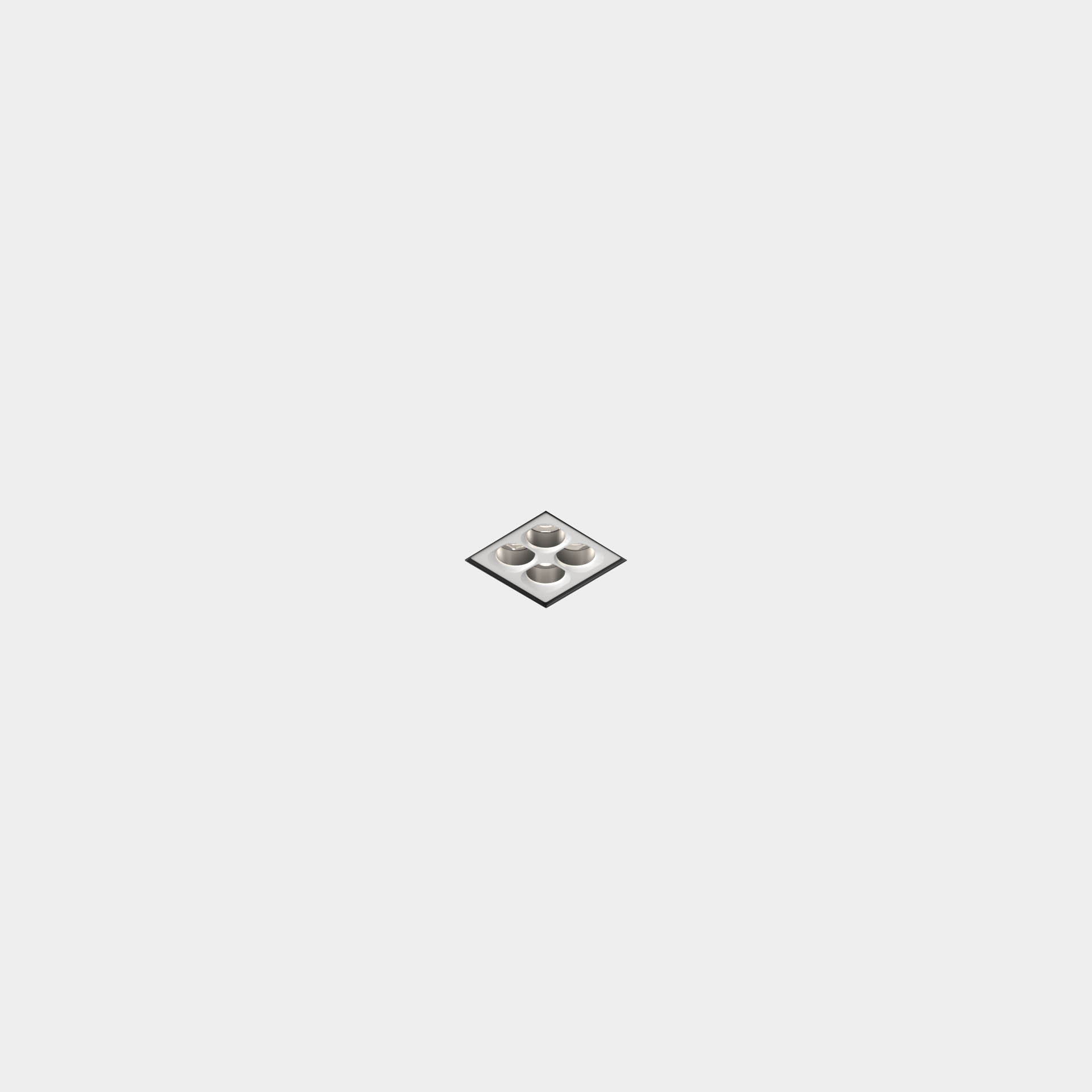

STENOS 1 inch Square Trimless

Recessed Micro Optic

  • Micro OpticMicro Optic
  • 15 Deg Optic15 Deg Optic
  • 30 Deg Louver30 Deg Louver
  • 60 Deg Louver60 Deg Louver
  • 1% Dimming1% Dimming
  • Wet RatedWet Rated
  • JA8JA8
  • ULUL
  • Single BinSingle Bin
  • RoHSRoHS
  • DimmableDimmable
  • Title 24Title 24

Fast Facts

  • Discreet, minimal, and field flexible micro-optic track systems
  • Trimmed and Trimless options in Recessed, Deep Recessed, Surface Mount, and Suspended profiles
  • Works in tandem with STENOS directional (tilt +/- 30°) and ambient modules
  • Control glare and beam spread with STENOS 15°, 30°, 60° optical accessories.
  • 24VDC, Class 2 power track simplifies and speeds up installation
  • Illuminate vertical services with the STENOS Wall Wash accessory
  • Snap-in STENOS modules anywhere along track systems with freedom to adjust anytime
  • Up to 1260 Lumens per ft, CCTs include 2700, 3000, 3500, 4000K
  • System shape options include an L and Wall to Ceiling connector for in plane or other 90° turns
  • Two channel track enables simple setup of two, separately controllable zones, and easy switching of modules from zone to zone
  • Title 24/JA8 Compliant
  • life: 50,000 hours L90
  • finishes: Black and White painted

ACCESSORIES

All STENOS Track Systems are supported by optional** interchangeable optics and louvers giving you control over beam shape and light distribution even after installation. Options include a 15°, 30° and 60° degree louver to support illuminating vertical surfaces. **Only one optical accessory can be used at a time

  • 15 deg reflector

  • 30 deg reflector

  • 60 deg reflector
