Stacko Aim

Variable Optic Spotlight

Overview
Specifications

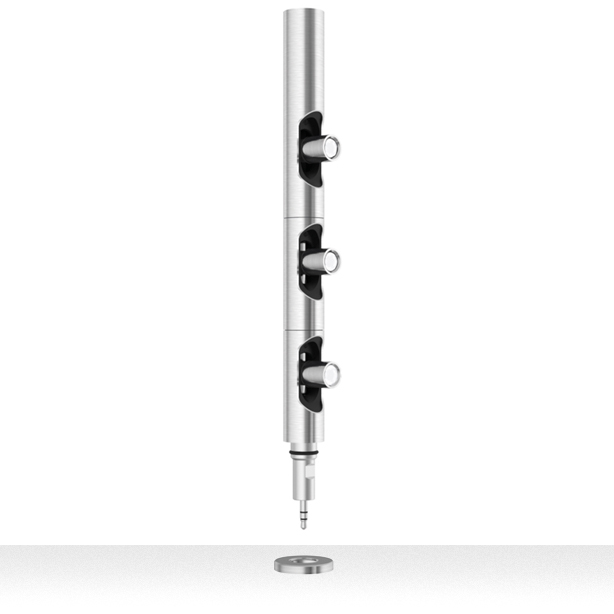

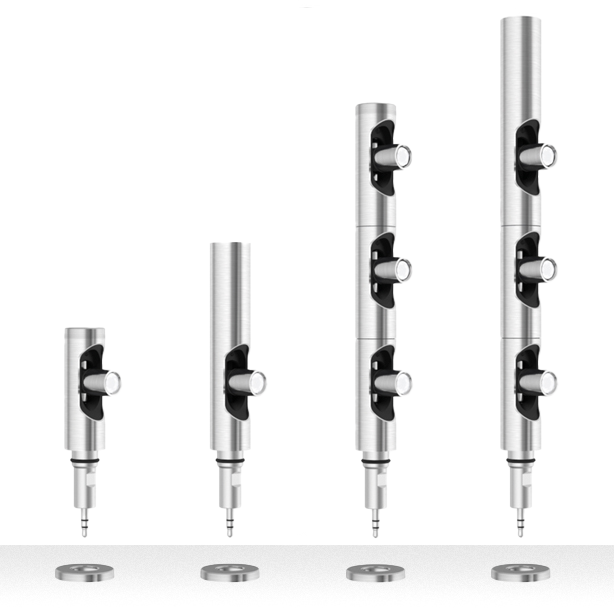

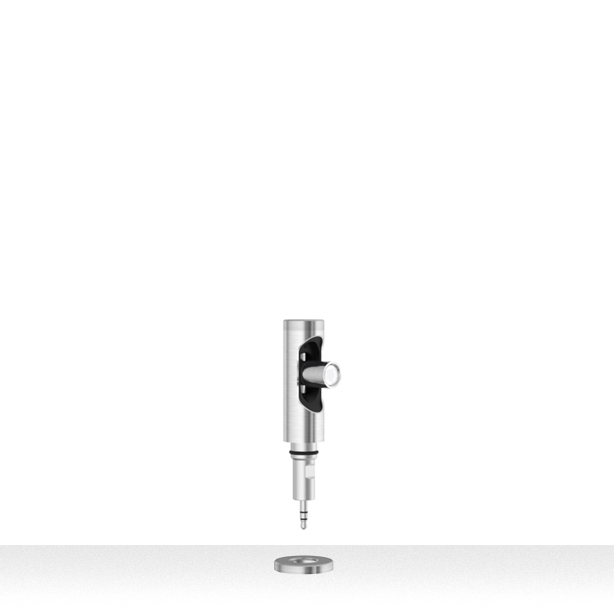

Stacko Aim is a Constant Current miniature display lighting product. It has four beam distributions and is a part of the modular Stacko Collection allowing users to ‘stack’ products together to create unique lighting set-ups that comes as standard in white,black and brushed aluminium. There is 1 light engine totalling 102lm | 1.12W.. This ‘End’ module closes the circuit and does not accept further modules. There can only be a maximum of 10 light engines per Stacko circuit or driver.The luminaire is compatible with our Minipoint system that enables a plug and play setup where luminaires can be swapped to suit changing lighting requirements.

Power: 1.12W
Accessories: Snoots
Dimming: DALI | 0-10V | 1-10V | Casambi
Light Engines: Standard
Delivered Output: Up to 94lm

  • CCT: 2700K, 3000K
  • CRI: 95+
  • Market: Education, Hospitality, Hotel, Museum, Residential, Restaurant, Retail
  • Aperture Size: 0.72 inch
  • Optics: 16°
  • Wattage: 1.12 W
  • Warranty: 5 Years
  • Product Number: 1011-E
