Leto 8

Adjustable recessed downlight

Overview
Specifications

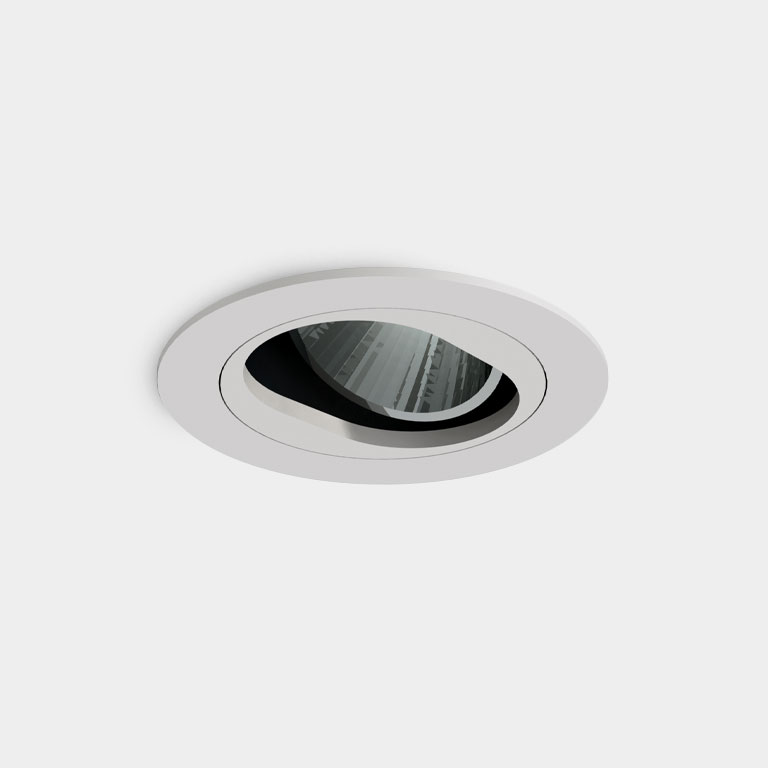

LETO 8 is a round, recessed, directional LED fixture that features a directional aperture fully adjustable to 30° and creates a classy, scalloping feature with the right application.

  • CCT: 2500K, 2700K, 3000K, 3500K, 4000K, 6500K
  • CRI: 90+
  • Output: 1000 lm, 1500 lm, 2000 lm, 3000 lm, 700 lm
  • Function: Adjustable
  • Aperture Size: 3 inch
  • Shape: Round
  • Optics: 18°, 30°, 45°, 60°
  • Wattage: 8.2 W, 11.2 W, 18.2 W, 24.9 W, 36.8 W
  • Dimming Protocol: 0-10 V, DALI, DMX, Phase
  • Trim: Trimmed
  • Sustainability: RoHS/Reach
  • Made In: Made in Canada
  • Warranty: 5 Years
  • Product Number: 680
Specsheets
Install Guides
IES Files
Leto 8 Specsheet
339.77 KB
PDF
Leto 8 Installation
762.01 KB
PDF
680-A90-645-35-07.ies
97.64 KB
IES
680-A90-618-35-10.ies
98.1 KB
IES
680-A90-630-35-13.ies
98.37 KB
IES
680-A90-618-35-15.ies
99.06 KB
IES
680-A90-660-35-15.ies
100.17 KB
IES
680-A90-630-35-07.ies
97.11 KB
IES
680-A90-660-35-20.ies
101.09 KB
IES
680-A90-630-35-10.ies
97.95 KB
IES
680-A90-630-35-30.ies
100.37 KB
IES
680-A90-618-35-07.ies
98 KB
IES
680-A90-660-35-13.ies
100.18 KB
IES
680-A90-645-35-30.ies
101.45 KB
IES
680-A90-660-35-30.ies
101.65 KB
IES
680-A90-660-35-07.ies
98.75 KB
IES
680-A90-630-35-15.ies
99.02 KB
IES
680-A90-645-35-13.ies
98.62 KB
IES
680-A90-645-35-10.ies
98.49 KB
IES
680-A90-645-35-15.ies
99.78 KB
IES
680-A90-645-35-20.ies
100.64 KB
IES
680-A90-618-35-20.ies
100.59 KB
IES
680-A90-618-35-13.ies
98.18 KB
IES
680-A90-630-35-20.ies
99.96 KB
IES
680-A90-660-35-10.ies
99.59 KB
IES
680-A90-618-35-30.ies
100.9 KB
IES
