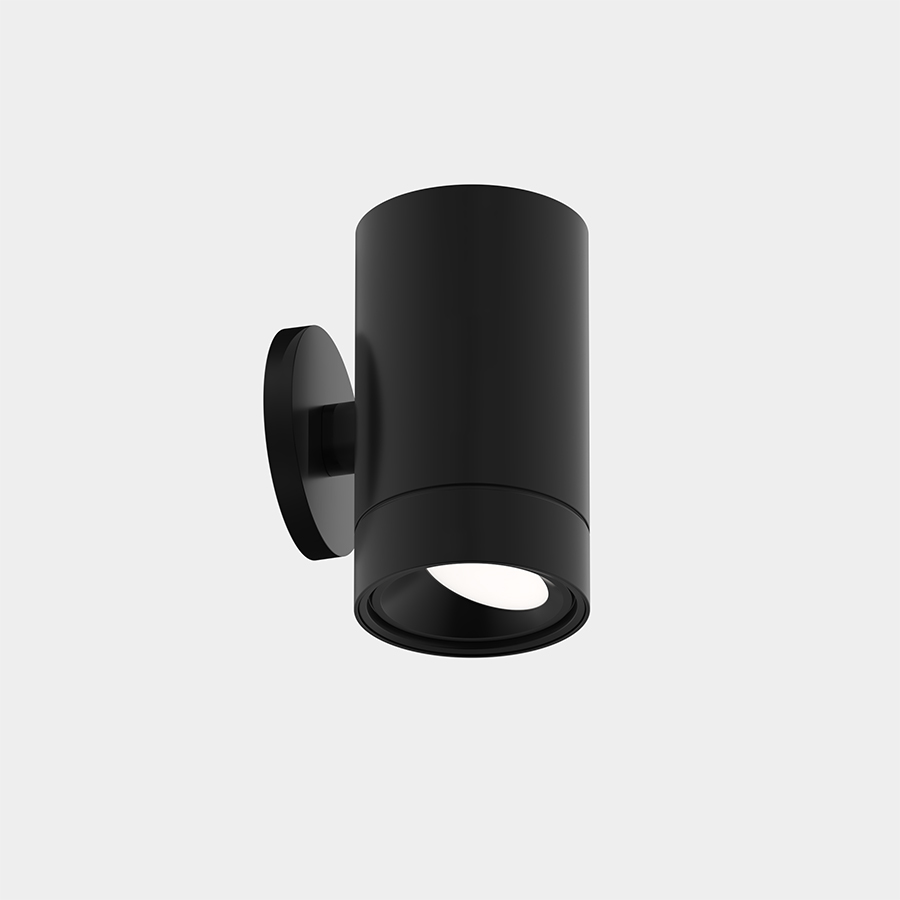

Leto 11 Wall Mount Asymmetric

Wall Wash Wall Mounted Cylinder

Warm DimTunable White
Overview
Specifications
  • Nine drivers selections available to cover wide range of applications.
  • Three output options available up to 1300 lumens.
  • 5 year warranty.
  • CCT: 2500K, 2700K, 3000K, 3500K, 4000K, 6500K
  • Market: Education, Healthcare, Hospitality, Hotel, Museum, Museums Heritage & Culture, Office, Places of Worship, Residential, Restaurant, Retail, Showrooms
  • Output: 1000 lm, 1300 lm, 700 lm
  • CRI: 90+
  • Function: Fixed, Wall Wash
  • Mounting: Wall Mount
  • Shape: Round
  • Color: Static White, Tunable White, Warm Dim
  • Wattage: 11.16 W, 14 W, 16.06 W, 16.41 W, 6.1 W, 8.51 W, 9.1 W
  • Dimming Protocol: 0-10 V, DALI, DMX, Phase
  • Height: 8.66 inch
  • Sustainability: Declare, JA8/Title 24, RoHS/Reach
  • Made In: Made in Canada
  • Warranty: 5 Years
  • Product Number: LET11
Learn more
Specsheets
Install Guides
IES Files
Cross Reference Guide
Leto 11 Wall ASM Spec
1.64 MB
PDF
Leto 11 Wall ASM TW WD Spec
1.54 MB
PDF
Leto 11 11 5 Wall Mount Install Guide
484.42 KB
PDF
LET11-WD1830-07-ASM-DL.ies
125.59 KB
IES
LET11-35K-07-ASM-DL.ies
99.54 KB
IES
LET11-WD1830-13-ASM-DL.ies
125.59 KB
IES
LET11-35K-10-ASM-DL.ies
100.27 KB
IES
LET11-35K-13-ASM-DL.ies
101.28 KB
IES
LET11-TW2765-13-ASM-DL.ies
125.41 KB
IES
LET11-WD1830-10-ASM-DL.ies
125.59 KB
IES
Senso Part Number Reference
90.86 KB
PDF
