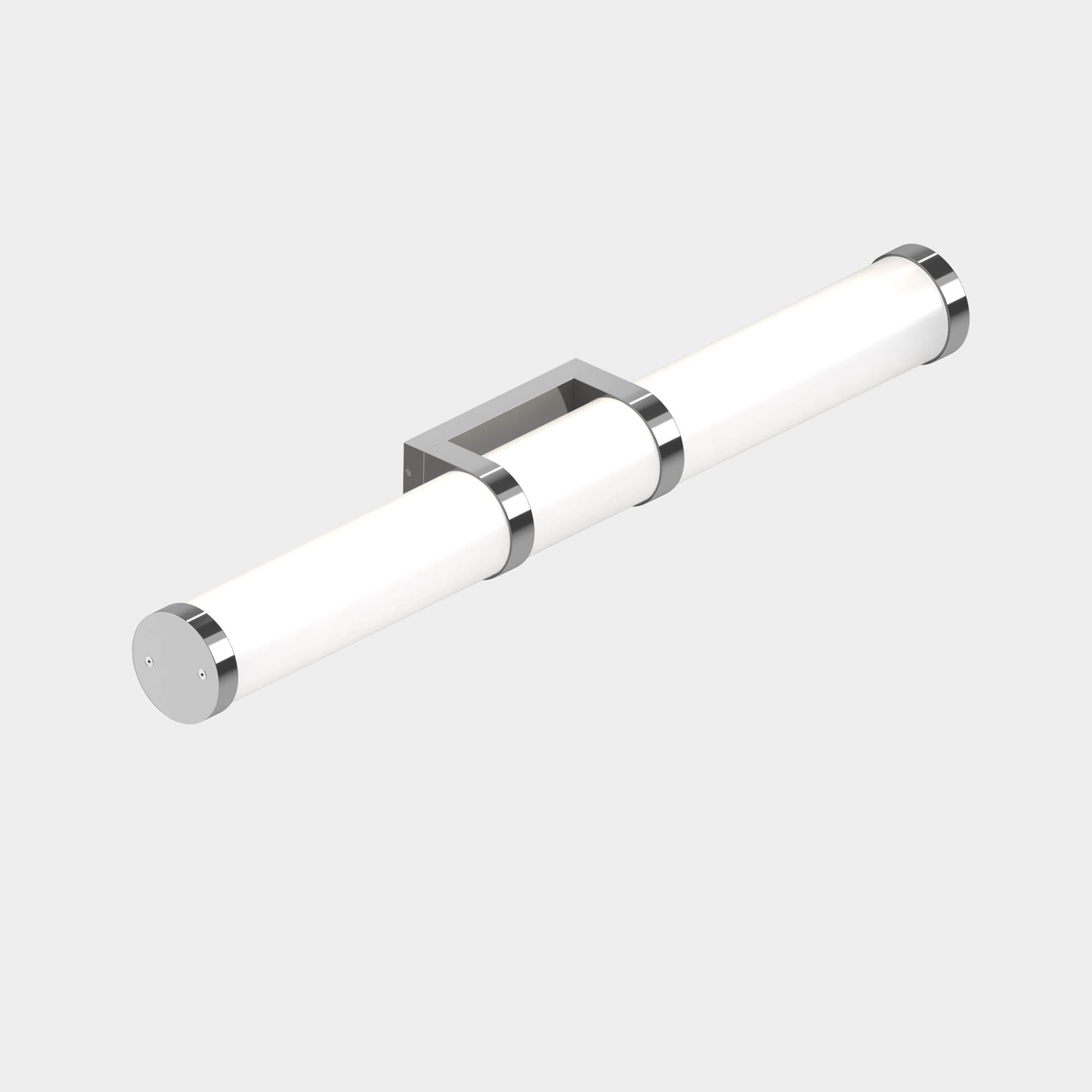

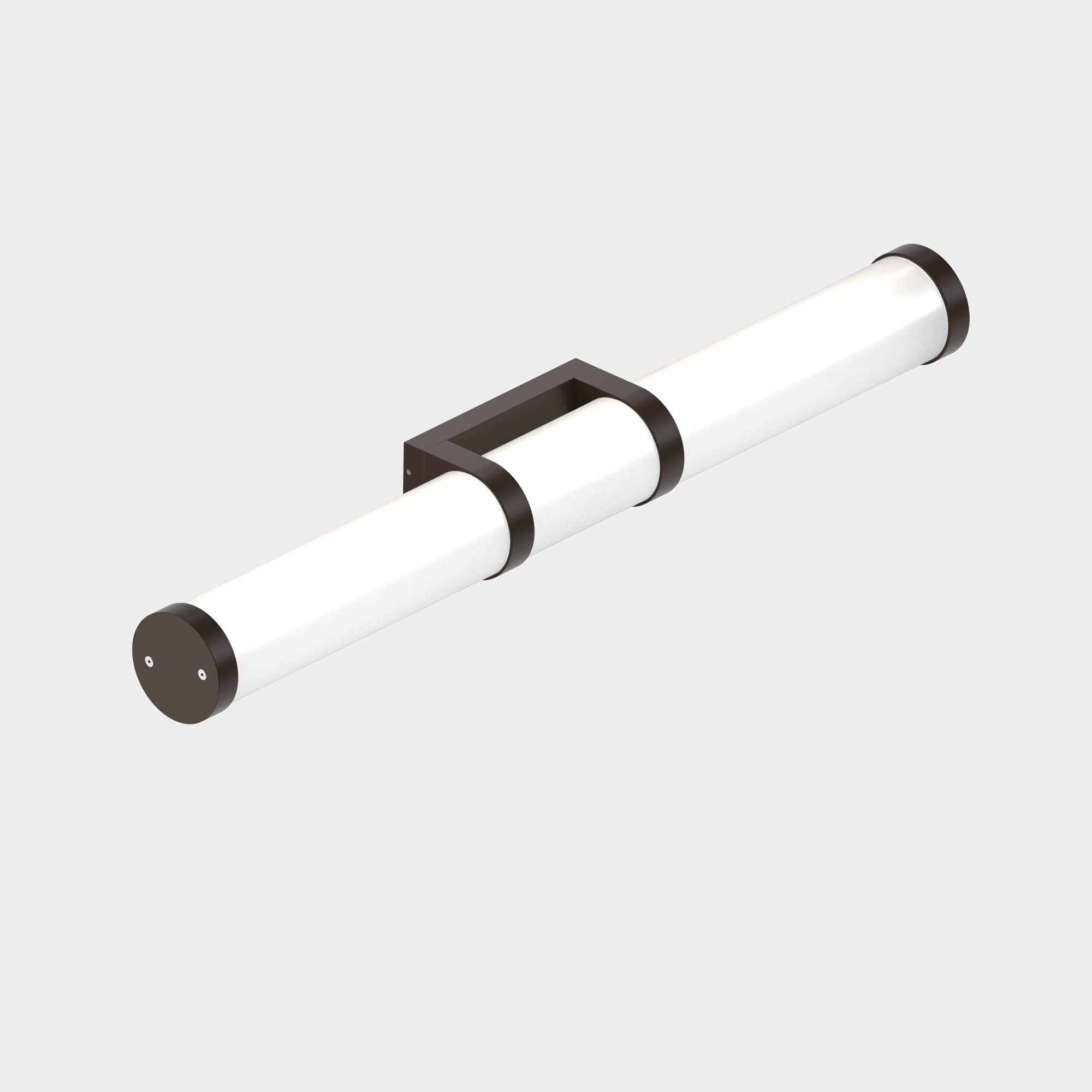

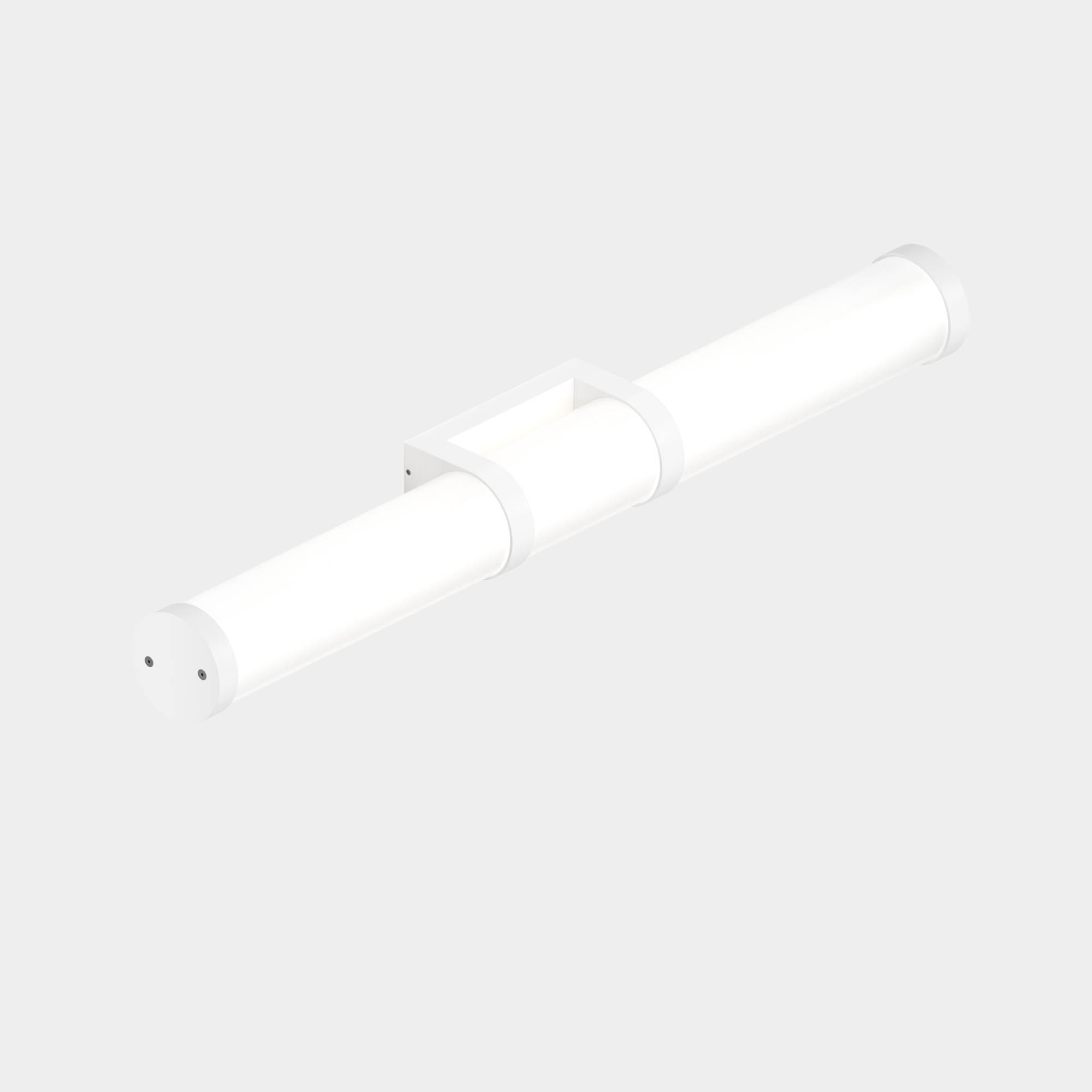

Explorer Vanity – Static White

Wall Mount Linear Fixture

Damp
Overview
Specifications

Explorer Vanity is an architectural-grade linear LED Strip designed for mirror and vanity lighting. It delivers soft, even illumination with options for static white, tunable white, RGBW, and Warm Dim. Sleek surface-mounted profile with various lengths, high CRI, and glare-free diffusion. 24VDC, damp location rated, 5-year warranty.

  • CCT: 1900K, 2200K, 2400K, 2500K, 2700K, 3000K, 3500K, 4000K, 4100K
  • CRI: 98
  • Output / ft: 534 lm/ft, 548 lm/ft, 740 lm/ft, 891 lm/ft, 988 lm/ft
  • Mounting: Wall
  • Type: Linear Fixture
  • Input Voltage: Low Voltage
  • Color: Static White
  • Wattage / ft: 10.5 W/ft, 14.4 W/ft, 5.7 W/ft, 8.4 W/ft
  • Rating: Damp
  • Lens Aperture: 3.20 inch
  • Size: 3.20 in
  • Height: 4.00 in
  • Lens: Frosted
  • Operating Temperature: -5°F to 125°F
  • Sustainability: JA8/Title 24, RoHS/Reach
  • Made In: Made in America
  • Warranty: 7 years
  • Product Number: EXPV
Specsheets
Install Guides
Cross Reference Guide
DWG CAD
IES Files
Explorer Vanity Static White Specsheet
2.58 MB
PDF
Explorer Vanity Install Guide
311.16 KB
PDF
Luminii Cross Reference Luminii Optic Arts
PDF
Explorer Vanity.dwg
81.48 KB
DWG
EXPV-48-72HO-30K-F.ies
3.73 KB
IES
