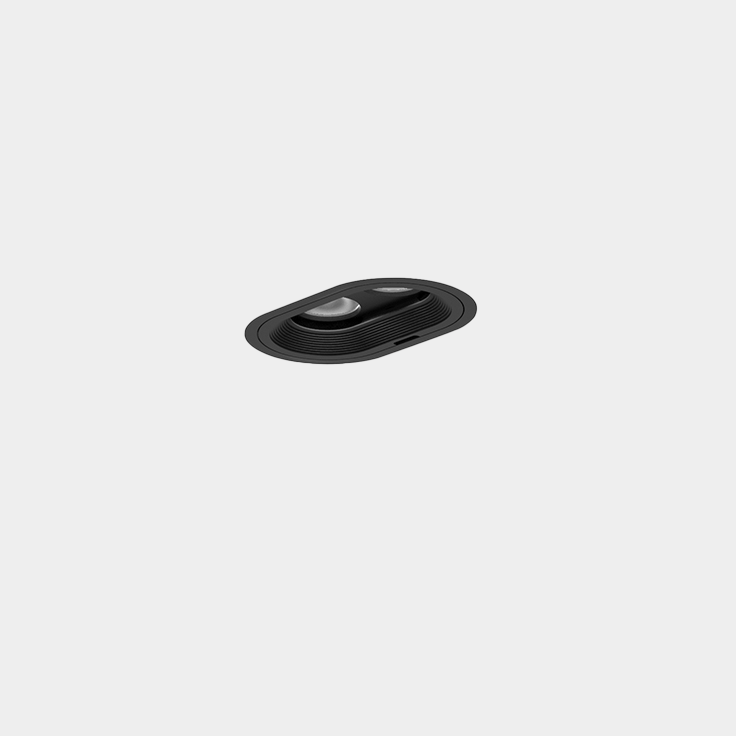

Domino 2 Recessed
Narrow
Domino 2 Recessed is a Constant Current multi source LED spotlight that is machined from aerospace grade aluminium 6063-T6 and comes as standard in white, black and brushed aluminium. It has five site-changeable beam distributions including elliptical beams. The narrow beam in our 4.48W 360lm module has a peak intensity of 3132cd.
TECHNICAL
IP RATING: IP20
MATERIAL: Machined AL 6063-T6
FINISH: Brushed Aluminium | Black RAL 9005 | White RAL 9010
MOUNTING: Recessed
CUT OUT: ø44mm x 22mm (1.73″ x 0.86″)
CEILING THICKNESS: 5-25mm (0.20-0.98″)
MIN CEILING VOID: 20mm (0.79″) clearance above
WEIGHT: 104g | 0.23lb
WATTAGE: 4.48W
FORWARD VOLTAGE: 6.4V
DRIVE CURRENT: 700mA
SUPPLY TYPE: Constant Current
DRIVER LOCATION: Remote
DIMMING: DALI | 0-10V | 1-10V
WARRANTY: 5 Years
LISTING CONFORMITY: ETL USA & Canada, UKCA, CE Europe
OPTICAL
NOMINAL LUMEN OUTPUT:360lm
DELIVERED LUMEN OUTPUT:328lm
COLOUR TEMPERATURE: 2700K | 3000K
CRI: 95 TYP
TM-30: RF: 93 RG: 99
BEAM ANGLES: 12 | 30 | 60 | Ellipse | Vertical Ellipse
North America Documentation
International Documentation
Finishes
-
White
