Luminii

Downlights

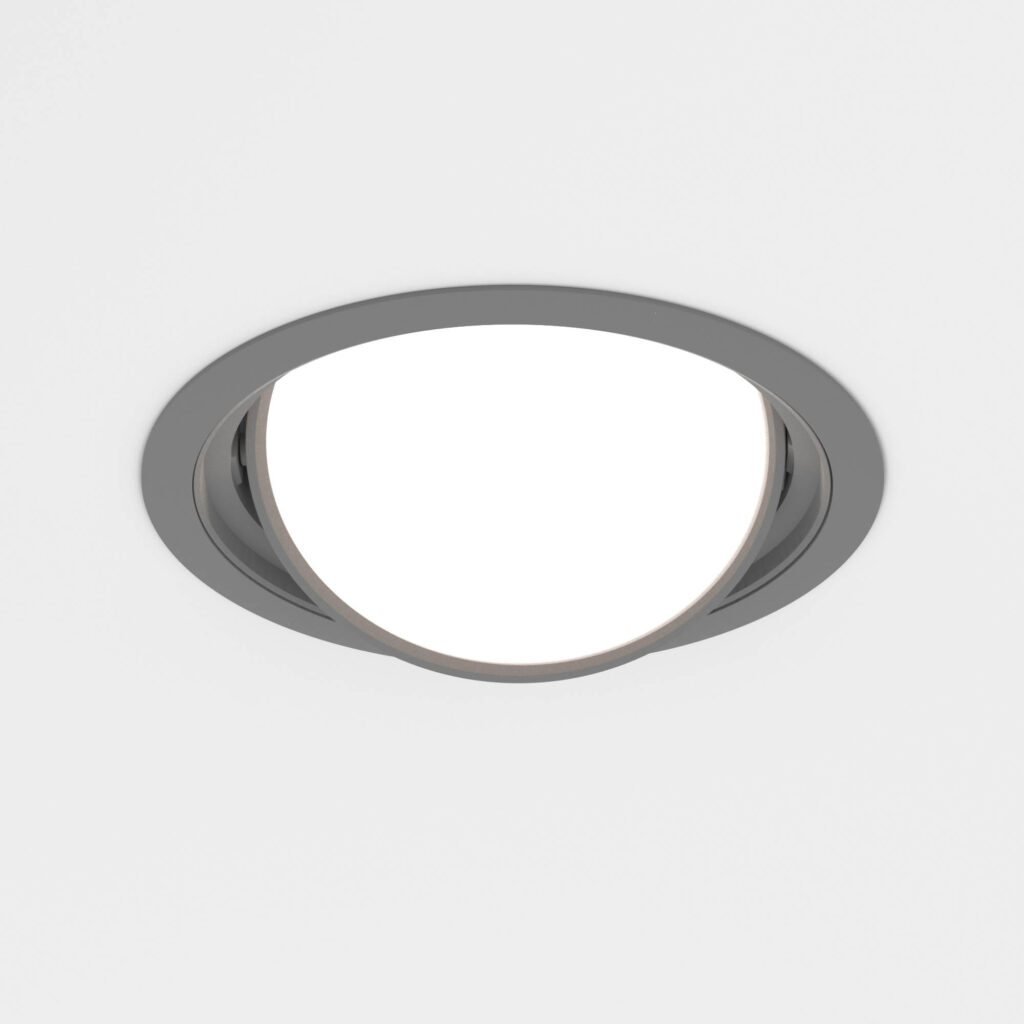

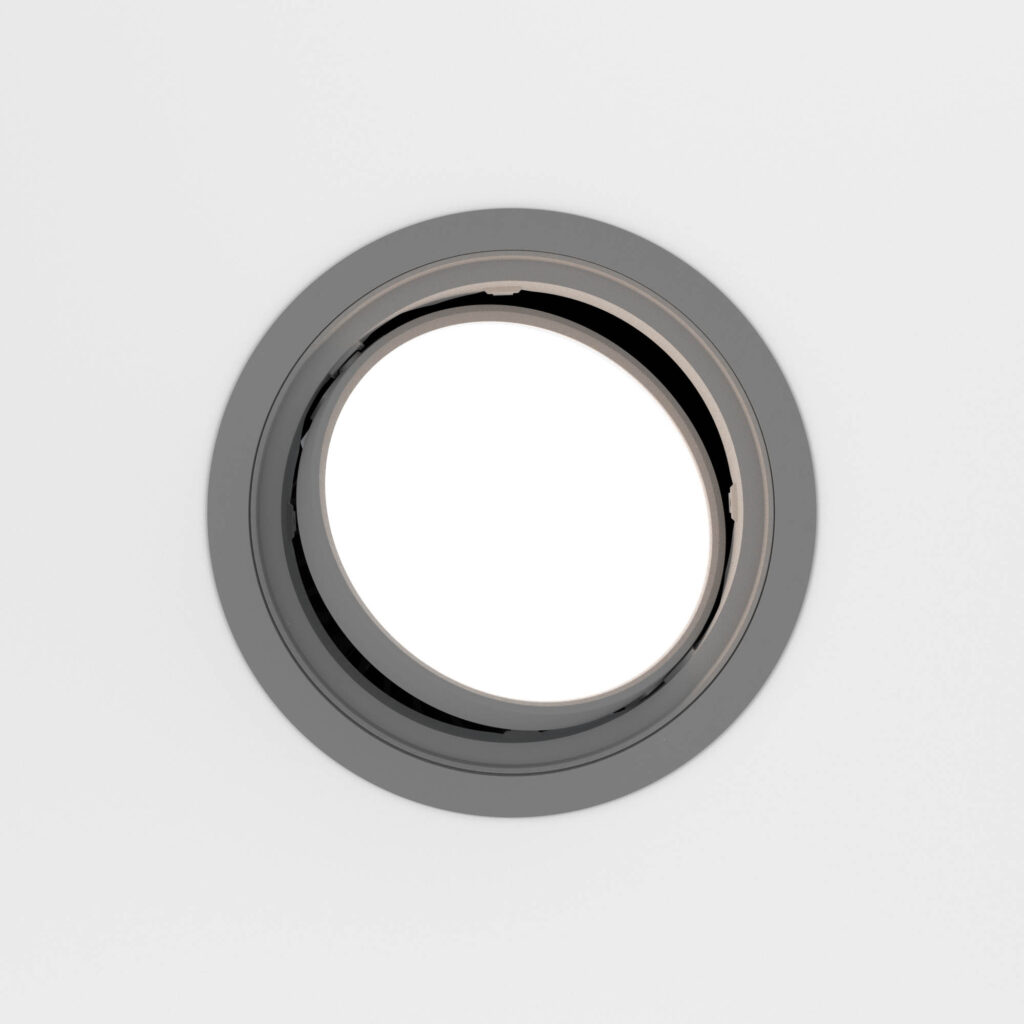

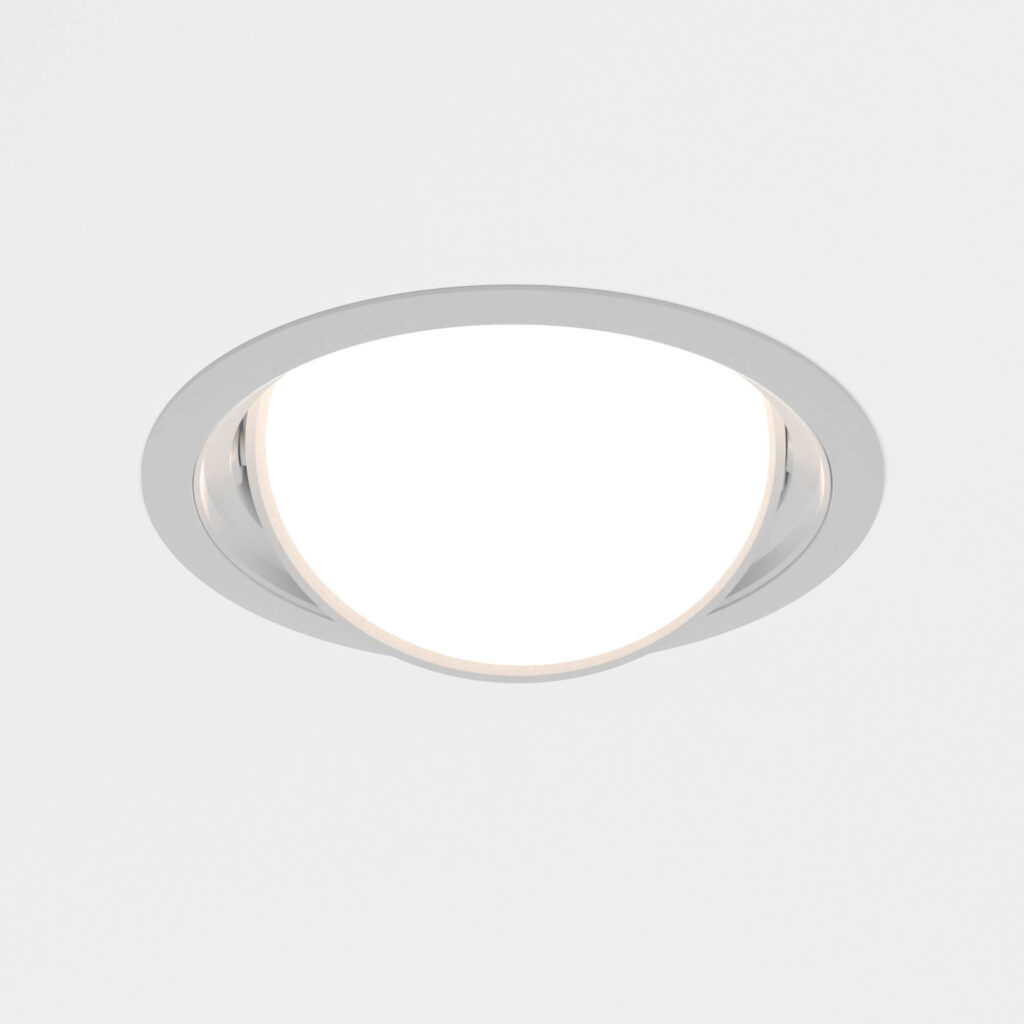

Artemis 5

Downlight - Adjustable - Wall Wash

Warm DimTunable White
Overview
Specifications
  • Available as a fixed downlight, a wall washer, and an adjustable fixture with 360 ̊ rotation and up to 30 ̊ angle adjustment.
  • Faceted metal reflectors provide beam spreads between 10° to 60°.
  • Nine drivers selections available to cover wide range of applications.
  • Six output options available up to 6000 lumens.
  • L70 > 50000 hours
  • Five year warranty.
  • CCT: 2500K, 2700K, 3000K, 3500K, 4000K, 6500K
  • CRI: 95+
  • Output: 1000 lm, 1500 lm, 2000 lm, 3000 lm, 4000 lm, 5000 lm, 6000 lm
  • Function: Adjustable, Fixed, Wall Wash
  • Aperture Size: 5 inch
  • Shape: Round
  • Color: Static White, Tunable White, Warm Dim
  • Optics: 10°, 18°, 30°, 45°, 60°
  • Wattage: 13.7 W, 19 W, 26.8 W, 37.2 W, 50.2 W, 66.6 W
  • Dimming Protocol: 0-10 V, DALI, DMX, Phase
  • Accessories: Louver
  • Trim: Trimless, Trimmed
  • Sustainability: Declare, JA8/Title 24, RoHS/Reach
  • Made In: Made in Canada
  • Warranty: 5 Years
  • Product Number: ART5
Learn more
Specsheets
Install Guides
Cross Reference Guide
IES Files
Artemis 5 Specsheet
NAN
PDF
Artemis 5 TW WD Specsheet
NAN
PDF
Artemis 5 Installation Guide
731.39 KB
PDF
Artemis 5 Trimless Installation Guide
782.15 KB
PDF
ART5-D-30-WD-F18-NA.ies
99.65 KB
IES
Senso Part Number Reference Guide
518.95 KB
PDF
ART5-D-60-35K-F10-NA.ies
101.82 KB
IES
ART5-D-60-35K-F18-NA.ies
100.69 KB
IES
ART5-D-60-35K-F30-NA.ies
99.49 KB
IES
ART5-D-60-35K-F45-NA.ies
100.88 KB
IES
ART5-D-60-35K-F60-NA.ies
100.45 KB
IES
ART5-W-30-35K-F18-DL.ies
99.48 KB
IES
ART5-D-30-WD-F10-NA.ies
100.69 KB
IES
ART5-D-30-WD-F30-NA.ies
103.53 KB
IES
ART5-D-30-WD-F45-NA.ies
99.92 KB
IES
ART5-D-30-WD-F60-NA.ies
103.28 KB
IES
ART5-W-30-WD-F18-DL.ies
103.36 KB
IES
