Now introducing VintageDim® 2 Refined Tunable Lighting

VintageDim® 2

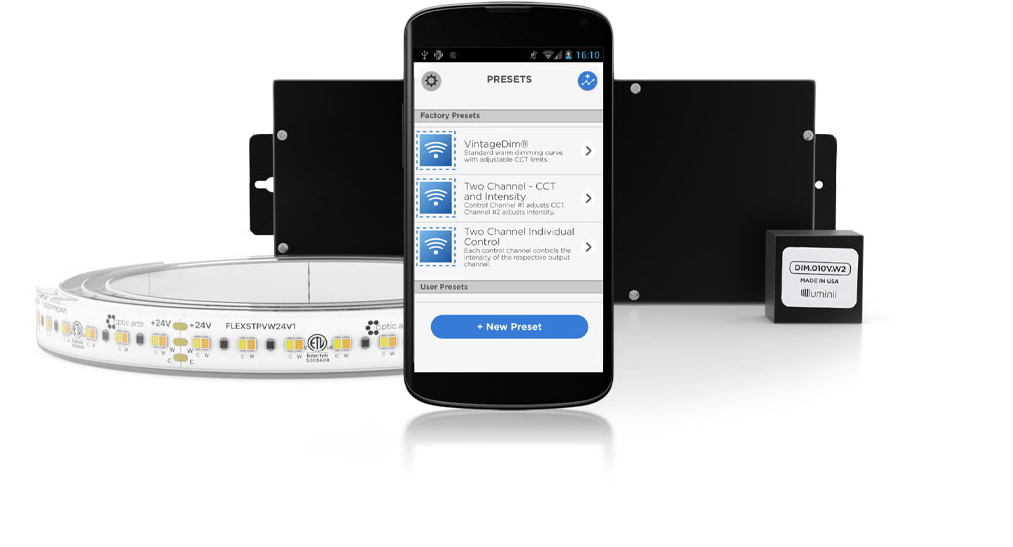

VintageDim is a dim-to-warm and variable white system that enables true dim-to-warm functionality with custom curves on one 0-10V control circuit, or CCT and Intensity control on two 0-10V control circuits. All modes and features are factory or field programmable using the accompanying smart phone application. Programming is achieved via Near-field communication (NFC) wireless technology.

Cut Sheet
User Guide
Wiring Diagram
License Agreement
Compatible Products

Variable White Mode

See Colors As They Were Meant To Be Seen

The quality and quantity of natural and artificial lighting can have an effect on our health, productivity, alertness, comfort, and overall well-being. Furthermore, the color temperature in a space can affect the way we experience our surroundings and the objects within.

Since the vast majority of us spend most of our time indoors, it is important that artificial light sources attempt to closely mimic light found in nature. VintageDim® 2 Variable White supports this by providing unique custom color options and intensity control allowing you to create natural lighting settings for indoor environments for every application. Our simple two channel control makes it easy to create stunning, dynamic spaces with virtually any control system- from wall box dimmers to panel based systems.

Variable White Mode

See Colors As They Were Meant To Be Seen

The quality and quantity of natural and artificial lighting can have an effect on our health, productivity, alertness, comfort, and overall well-being. Furthermore, the color temperature in a space can affect the way we experience our surroundings and the objects within.

Since the vast majority of us spend most of our time indoors, it is important that artificial light sources attempt to closely mimic light found in nature. VintageDim® 2 Variable White supports this by providing unique custom color options and intensity control allowing you to create natural lighting settings for indoor environments for every application. Our simple two channel control makes it easy to create stunning, dynamic spaces with virtually any control system- from wall box dimmers to panel based systems.

Selection of Compatible Products

  • LineLED 91STP-WET

    LineLED 91STP-WET

    • Power Consumption: 2.65W/ft.
    • CCT: 2200K, 2400K, 3000K, 3500K, 4100K.
    • Lumen: 170.10 lm/ft for 2W/ft or 315.00 lm/ft for 4W/ft..
    View Product
  • Knife Edge

    Knife Edge

    • Power Consumption: 2.65W/ft.
    • CCT: 2200K, 2400K, 3000K, 3500K, 4100K.
    • Lumen: 3000lm/ft..
    View Product
  • Slot

    Slot

    • Power Consumption: 2.65W/ft.
    • CCT: 2200K, 2400K, 3000K, 3500K, 4100K.
    • Lumen: 3000lm/ft..
    View Product
  • Arm

    Arm

    • Power Consumption: 2.65W/ft.
    • CCT: 2200K, 2400K, 3000K, 3500K, 4100K.
    • Lumen: 3000lm/ft..
    View Product
  • LineLED Flex 18

    LineLED Flex 18

    • Power Consumption: 2.65W/ft.
    • CCT: 2200K, 2400K, 3000K, 3500K, 4100K.
    • Lumen: 3000lm/ft..
    View Product
  • LineLED 91 STP

    LineLED 91 STP

    • Power Consumption: 2W/ft, 4W/ft, 7W/ft.
    • CCT: 1800K, 2350K, 2750K, 2930K, 3550K, 4100K.
    • Lumen: 189.00 lm/ft for 2W/ft, 350.00 lm/ft for 4W/ft, or 567.00 lm/ft for 7W/ft..
    View Product

Custom Curve Control

  • Make commissioning and controlling your lighting scenes easier and quicker
  • Control Dim to Warm on one 0-10V circuit
  • Control CCT and Wattage on two 0-10V circuits
  • NFC Wireless Control for security and project scalability
  • Factory or onsite programmable
