Leto 1 Double

Flanged Double Adjustable Downlight

Overview
Specifications

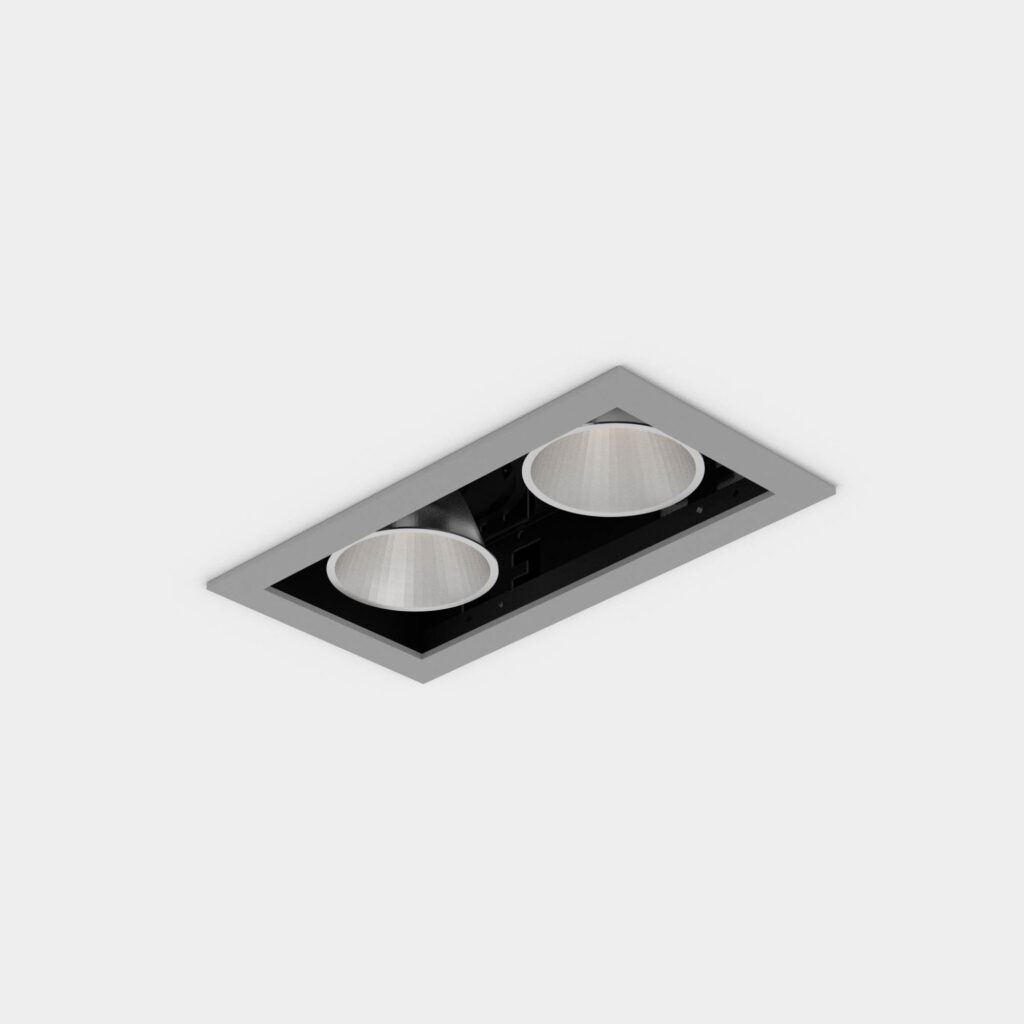

The LETO 1 Double is a 2 light version of the LETO 1 Single recessed LED fixture. Designed to be architecturally pleasing, it is fully adjustable to 30°. It can be used as a general light application, or to highlight specific design areas while maintaining consistency with LETO 1 Single and Triple.

  • CCT: 2500K, 2700K, 3000K, 3500K, 4000K, 6500K
  • CRI: 90+
  • Output: 1000 lm, 1500 lm, 2000 lm, 3000 lm, 700 lm
  • Function: Adjustable
  • Aperture Size: 3.7 inch
  • Shape: Rectangular
  • Multiples: Two
  • Optics: 18°, 30°, 45°, 60°
  • Wattage: 12.1 W, 16.4 W, 24.9 W, 31.8 W, 8.2 W
  • Dimming Protocol: 0-10 V, DALI, DMX, Phase
  • Trim: Trimmed
  • Sustainability: RoHS/Reach
  • Made In: Made in Canada, Made in Canada with Imported Parts
  • Warranty: 5 Years
  • Product Number: 671
Specsheets
Install Guides
IES Files
Leto 1 Double Specsheet
776.88 KB
PDF
Leto 1 Double Installation
691.33 KB
PDF
671-A90-630-35-20-00.ies
98.37 KB
IES
671-A90-618-35-13-00.ies
97.72 KB
IES
671-A90-660-35-20-00.ies
101.55 KB
IES
671-A90-645-35-10-00.ies
97.82 KB
IES
671-A90-618-35-10-00.ies
97.31 KB
IES
671-A90-660-35-30-00.ies
103.88 KB
IES
671-A90-660-35-07-00.ies
102.39 KB
IES
671-A90-630-35-07-00.ies
96.91 KB
IES
671-A90-645-35-30-00.ies
99.66 KB
IES
671-A90-618-35-07-00.ies
96.42 KB
IES
671-A90-630-35-30-00.ies
101.48 KB
IES
671-A90-630-35-13-00.ies
104.65 KB
IES
671-A90-618-35-30-00.ies
97.48 KB
IES
671-A90-618-35-20-00.ies
98.49 KB
IES
671-A90-645-35-13-00.ies
98.62 KB
IES
671-A90-660-35-13-00.ies
105.93 KB
IES
671-A90-645-35-20-00.ies
101.14 KB
IES
671-A90-660-35-10-00.ies
102.19 KB
IES
671-A90-630-35-10-00.ies
97.47 KB
IES
671-A90-645-35-07-00.ies
97.4 KB
IES
