Myka 45 - Static White

Myka 45 – Static White

Surface Mount Linear 24V System

Overview

Specifications

24VDC Class 2 fixtures made to order up to 144”. Fixtures can be linked up to 48’ depending on output
Suitable for undercabinet, millwork, direct view, grazer, vanity, architectural reveals, accent lighting and surface mount applications
Approved for closet/storage space installation per NEC 410.16(A) (3) and 410.16(C)(5) on outputs 5.7 W/ft or less
Dot free even illumination with frosted lens and high color outputs
Class 2 listed for damp locations
High Color Quality options offer premium quality and vibrant colors with R9 values up to 97
High Efficacy options offer best in class output and efficacy with over 570 lm/ft and up to 103 lm/W
Proprietary strong bond solder method handles up to 50 lbs of pull force on wire leads and connectors
Average Life (L70): 50,000hrs
7 Year warranty

CCT: 1900K, 2200K, 2400K, 2500K, 2700K, 3000K, 3500K, 4000K, 4100K
CRI: 98
Output / ft: 195 lm/ft, 201 lm/ft, 271 lm/ft, 326 lm/ft, 361 lm/ft, 396 lm/ft, 579 lm/ft
Mounting: Surface
Type: Linear Fixture
Input Voltage: Low Voltage
Color: Static White
Wattage / ft: 1.9 W/ft, 2.8 W/ft, 3.5 W/ft, 4.8 W/ft, 6.0 W/ft, 6.5 W/ft
Rating: Damp
Lens Aperture: 0.44 inch
Size: 0.56 in
Height: 0.64 in

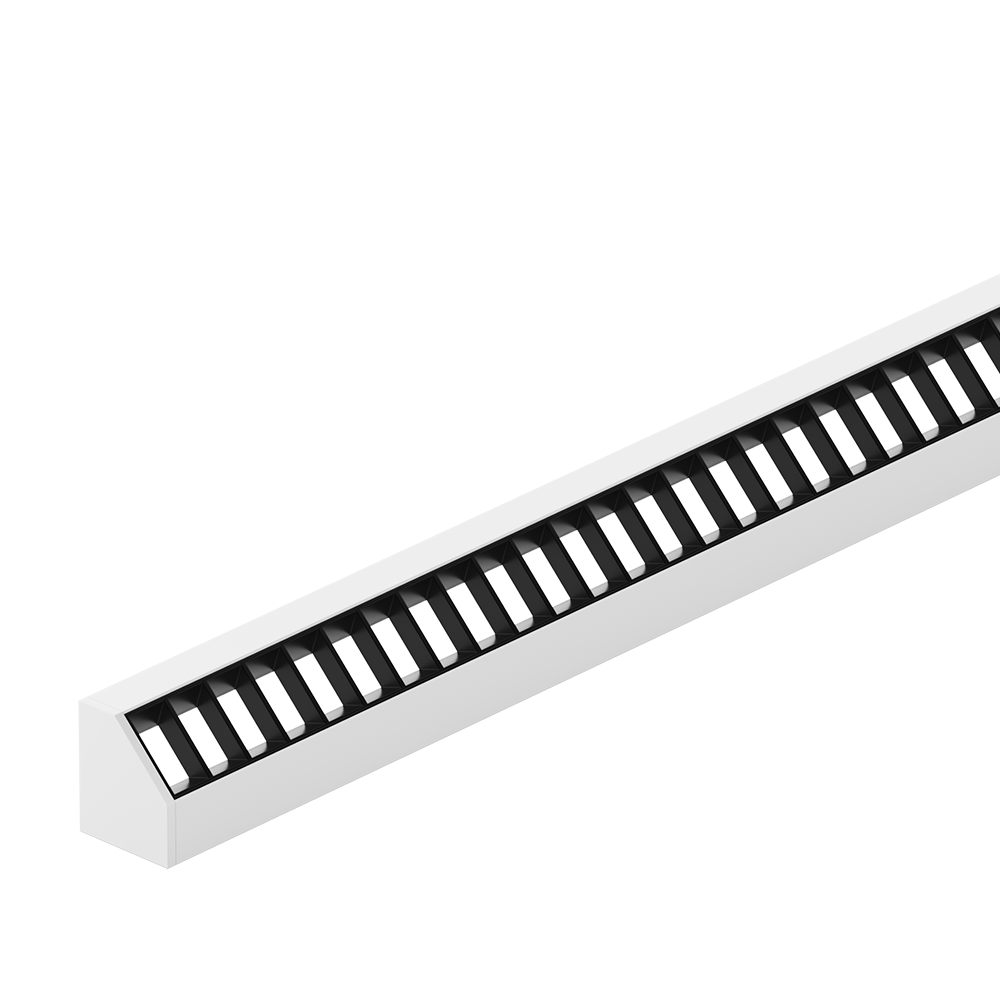

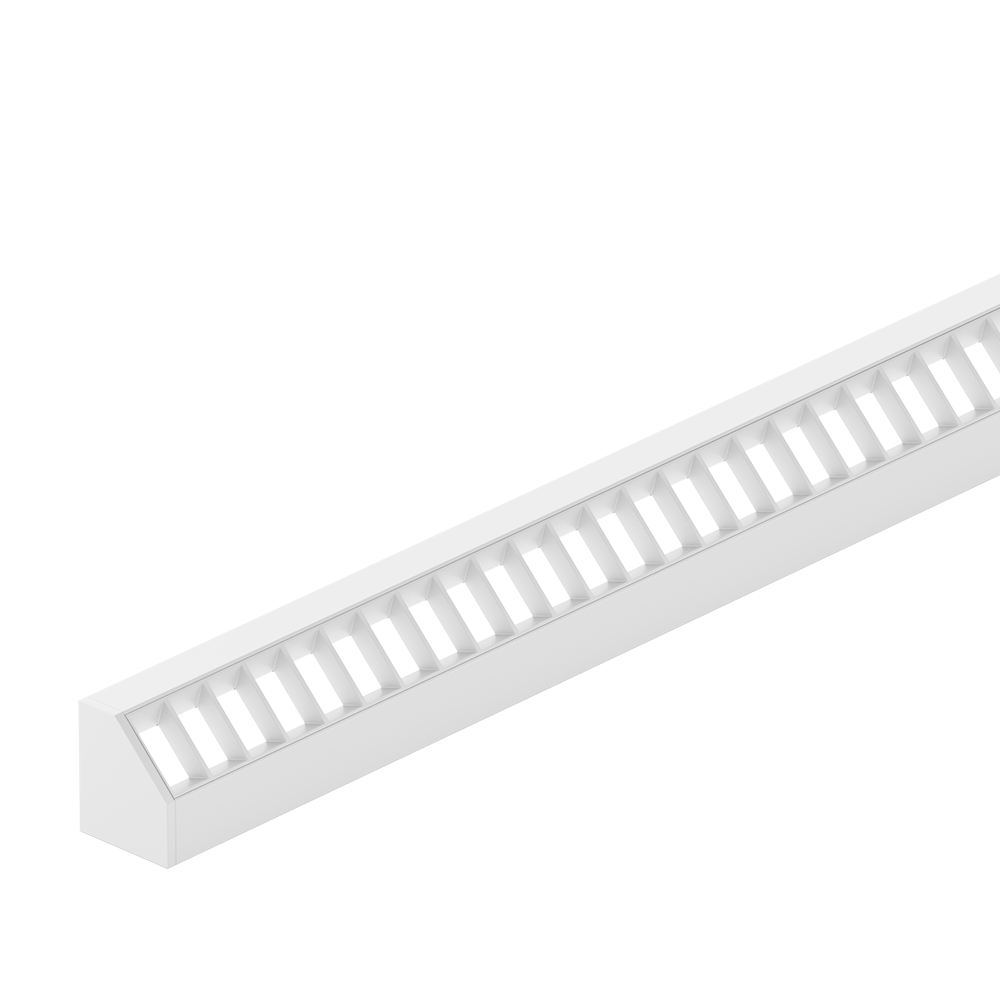

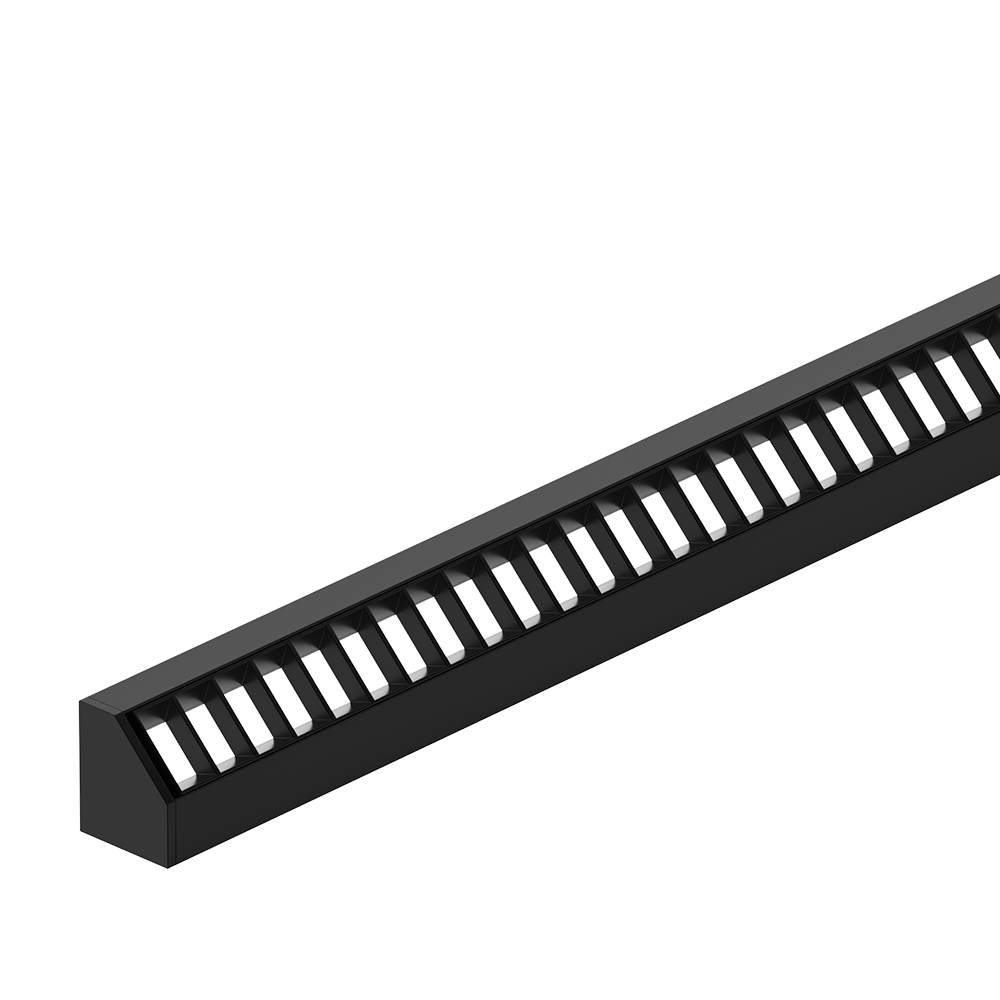

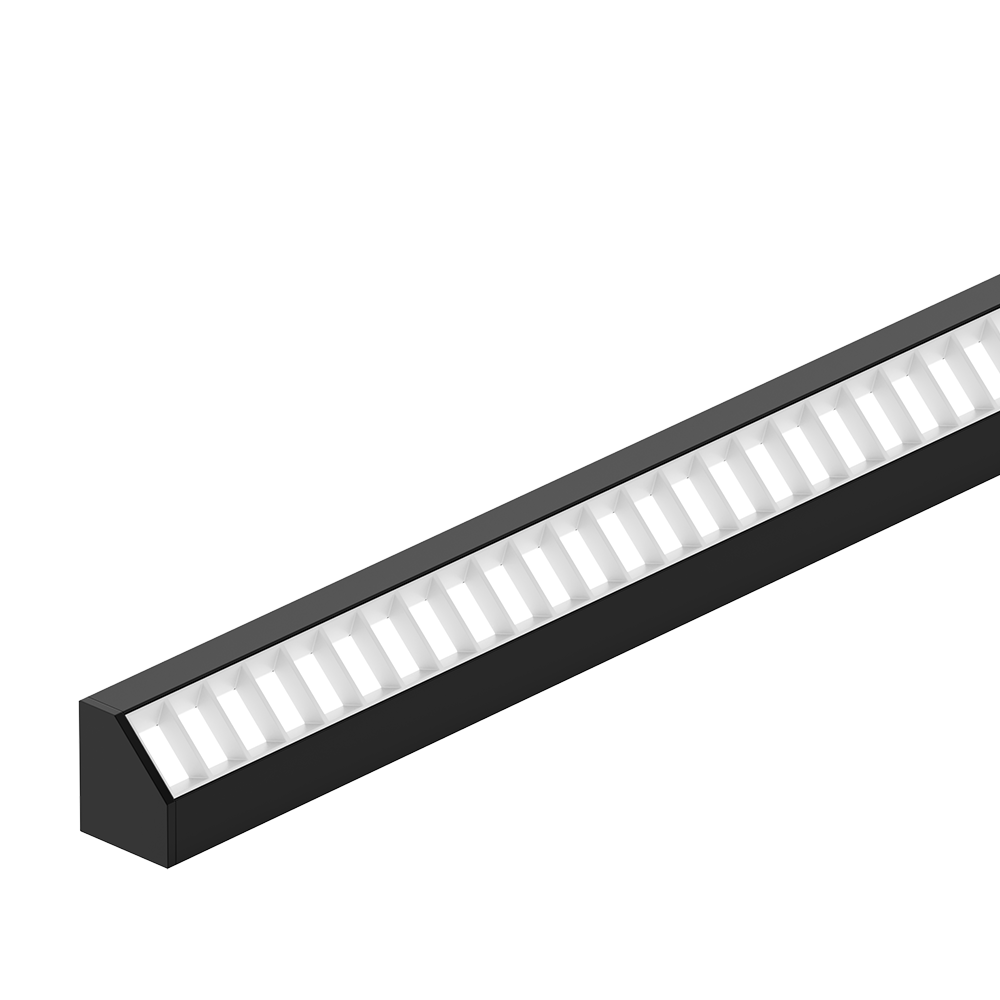

Lens: Blade Louver, Clear, Frosted, Half Frosted, Matte Frosted
Operating Temperature: -5°F to 125°F

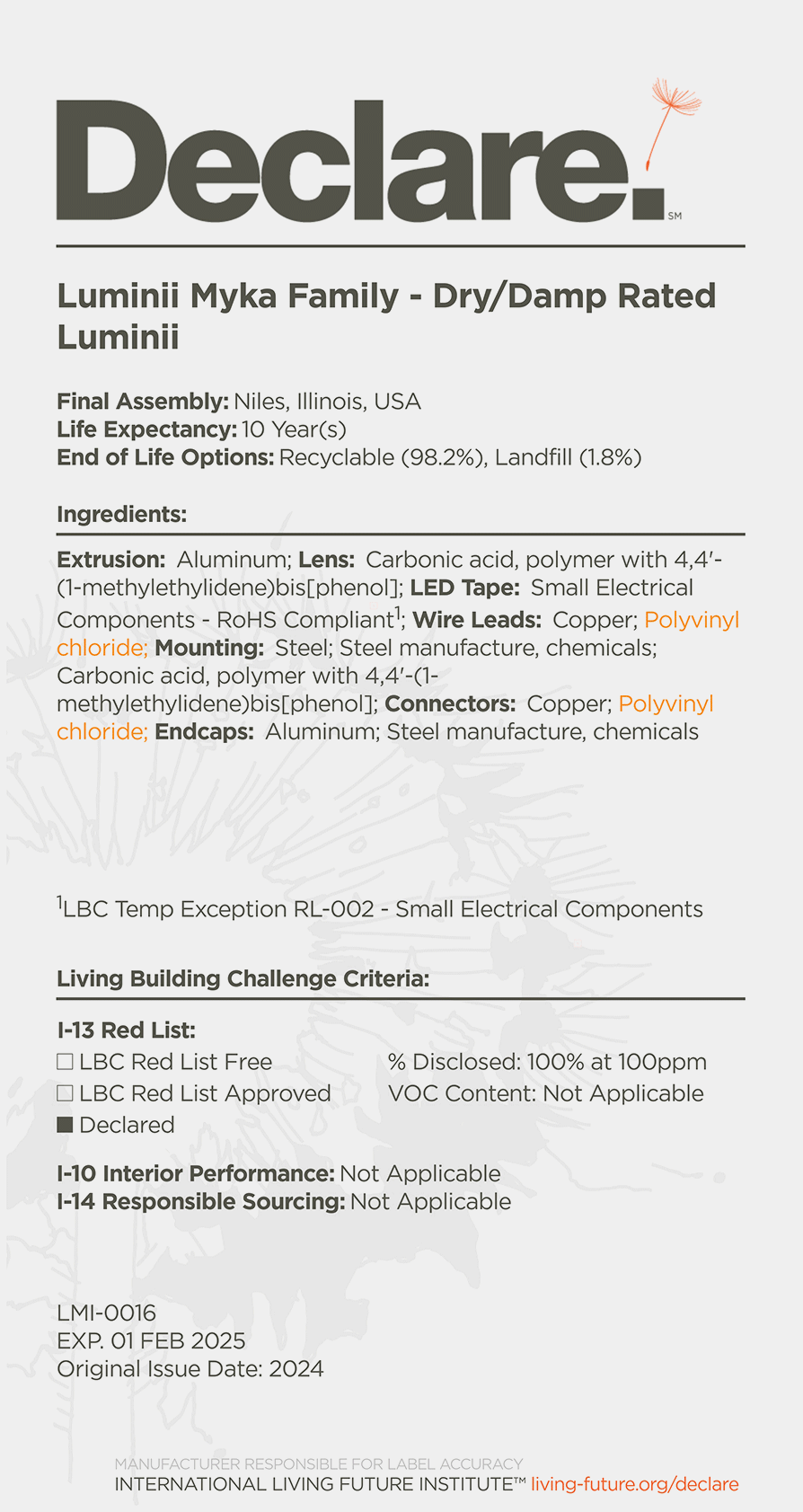

Sustainability: Declare, JA8/Title 24, RoHS/Reach
Made In: Made in America
Warranty: 7 years
Product Number: MK45V
