Kilo Graze-Wash - Static White

Kilo Graze-Wash – Static White

Surface Mount Linear 24V System

Overview

Specifications

24VDC Class 2 fixtures made to order up to 116”. Fixtures can be linked up to 48’ depending on output
Suitable for wall wash applications
Approved for closet/storage space installation per NEC 410.16(A) (3) and 410.16(C)(5) on outputs 5.7 W/ft or less
Class 2 listed for damp locations
Dot free even illumination with wash lens
Average Life (L70): 50,000hrs
High Color Quality options offer premium quality and vibrant colors with R9 values up to 97
High Efficacy options offer best in class output and efficacy with over 486 lm/ft and up to 68 lm/W
Proprietary strong bond solder method handles up to 50 lbs of pull force on wire leads and connectors
7 year warranty

CCT: 1900K, 2200K, 2400K, 2500K, 2700K, 3000K, 3500K, 4000K, 4100K
CRI: 98
Output / ft: 112 lm/ft, 115 lm/ft, 155 lm/ft, 187 lm/ft, 207 lm/ft, 227 lm/ft, 332 lm/ft, 420 lm/ft
Mounting: Surface, Wall Mount
Type: Linear Fixture
Input Voltage: Low Voltage
Color: Static White
Wattage / ft: 1.9 W/ft, 2.8 W/ft, 3.5 W/ft, 4.8 W/ft, 6.0 W/ft, 6.5 W/ft, 7.5 W/ft
Lens Aperture: 1.22 inch
Size: 1.38 in
Height: 1.38 in
Lens: Clear, Frosted
Operating Temperature: -5°F to 125°F

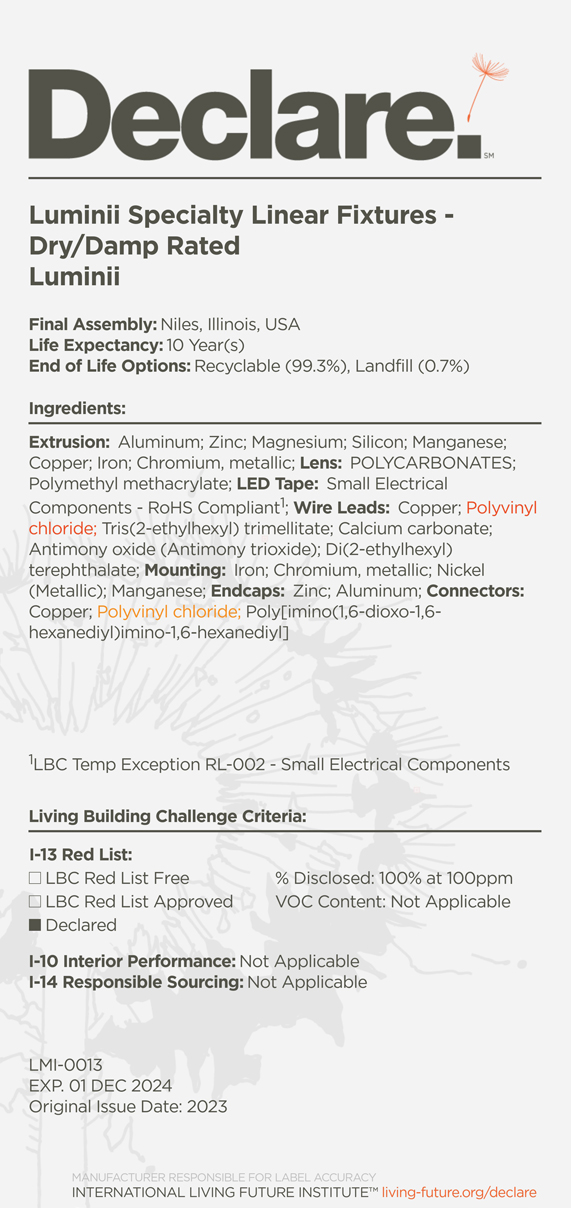

Sustainability: Declare, JA8/Title 24, RoHS/Reach
Made In: Made in America
Warranty: 7 years
Product Number: KGW
