Bosca Static White
Filters
Bosca Static White
Linear Illumination System
24VDC Class 2 fixtures made to order up to 144 inch. Fixtures can be linked up to 35 feet depending on output
Suitable for undercabinet, millwork recessed and surface mount applications
Approved for closet/storage space installation per NEC 410.16(A)(3) and 410.16(C)(5)
Dot free even illumination achievable with frosted & raised lens with certain outputs
Vibrant colors with R9 values up to 98 Single micro binned LEDs +/- 30 CCT
Dims with minimal color shift
Class 2 listed for damp locations
Proprietary strong bond solder method handles up to 50lbs of torque on wire leads and connectors
Specsheets
Install Guides
IES Files
ZIP All
BOS-48-30K-LL72VHO-NO LENS.IES
BOS-48-30K-LL72VHO-SI.IES
BOS-48-30K-LL72VHO-R.IES
BOS-48-30K-LL72VHO-G.IES
BOS-48-30K-LL72VHO-F.IES
Linear Luminaires
Surface Mount
Configurator
Configurator
1
-
2
-
3
-
4
-
5
-
6
-
7
-
8
-
9
1 - Model
BOS .
Bosca Static White
0
2 - Length
XX .
Custom
3 - Output
72SO .
Standard
72HO .
High
72VHO .
Very High
HE48LO .
Low
HE48SO .
Standard
HE48MO .
Medium
HE48HO .
High
HE64VHO .
Very High
4 - CCT
19K .
1900K
22K .
2200K
24K .
2400K
27K .
2700K
30K .
3000K
35K .
3500K
40K .
4000K
41K .
4100K
5 - Lens
F .
Frosted
SI .
Satin Ice
G .
Graze
R .
Raised
6 - Mounting
C .
Clip-in
SC .
Screw-in
M .
Magnetic
AH .
Adjustable Hinge Mounting
7 - Finish
BK .

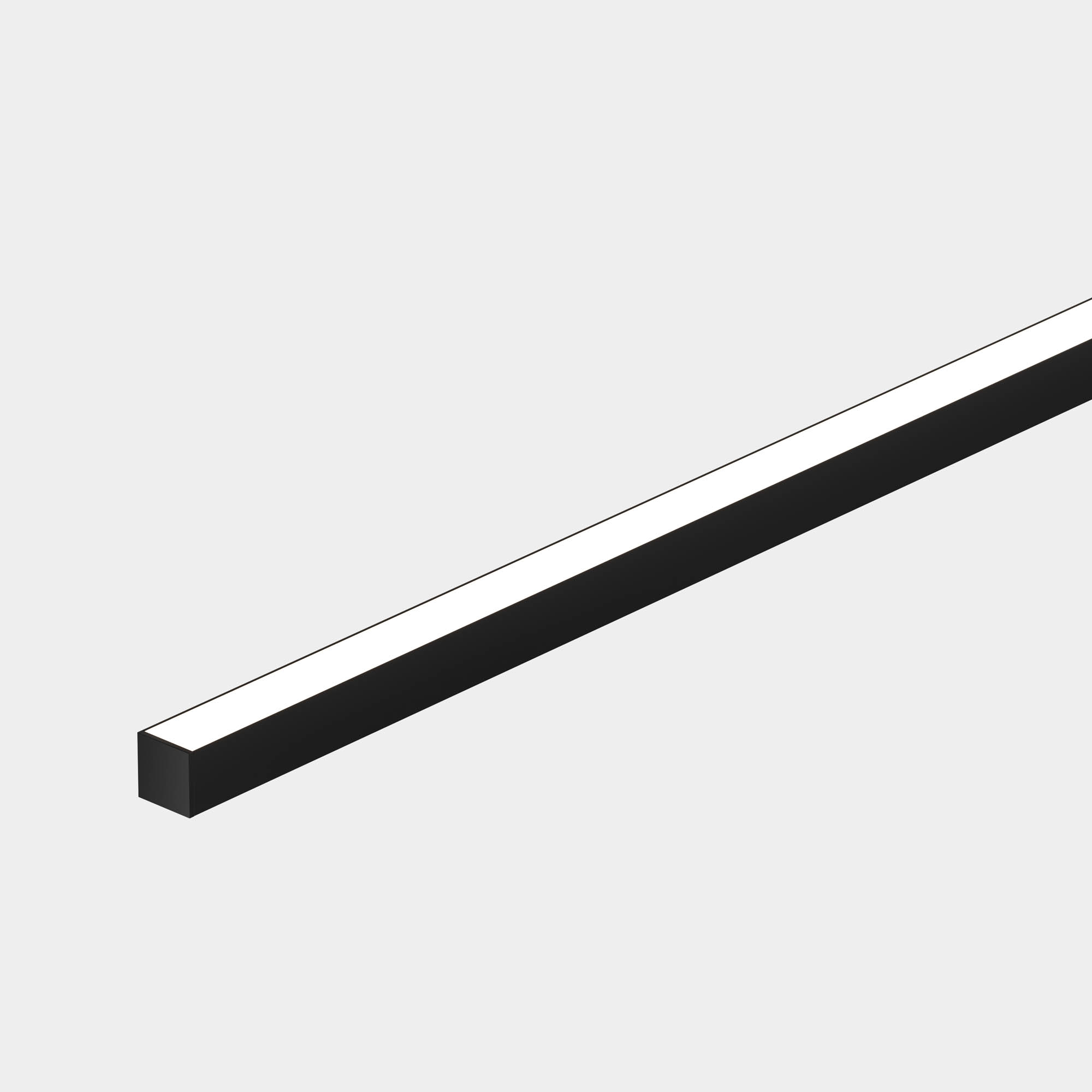

Matte Black
SA .

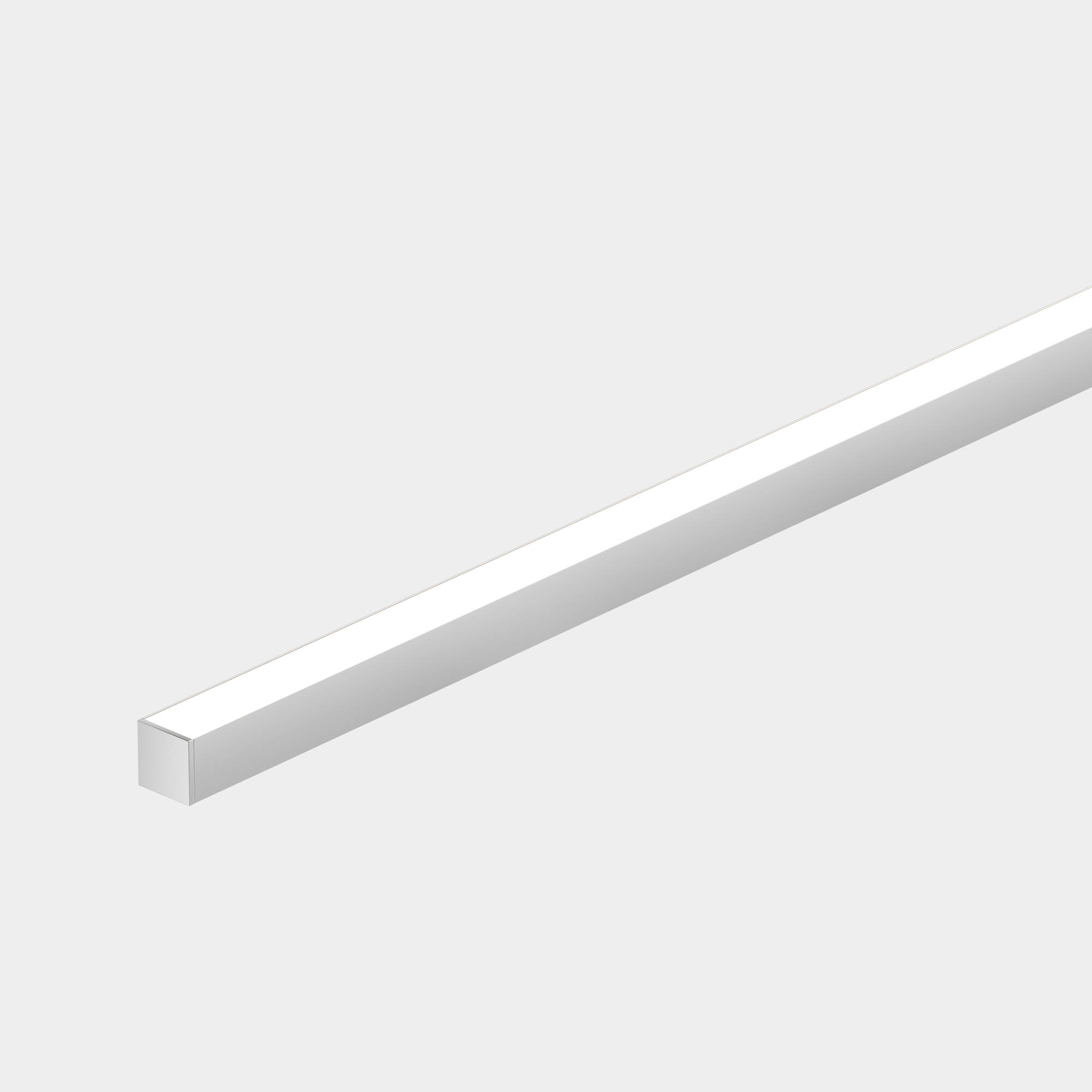

Silver
BK .
Black

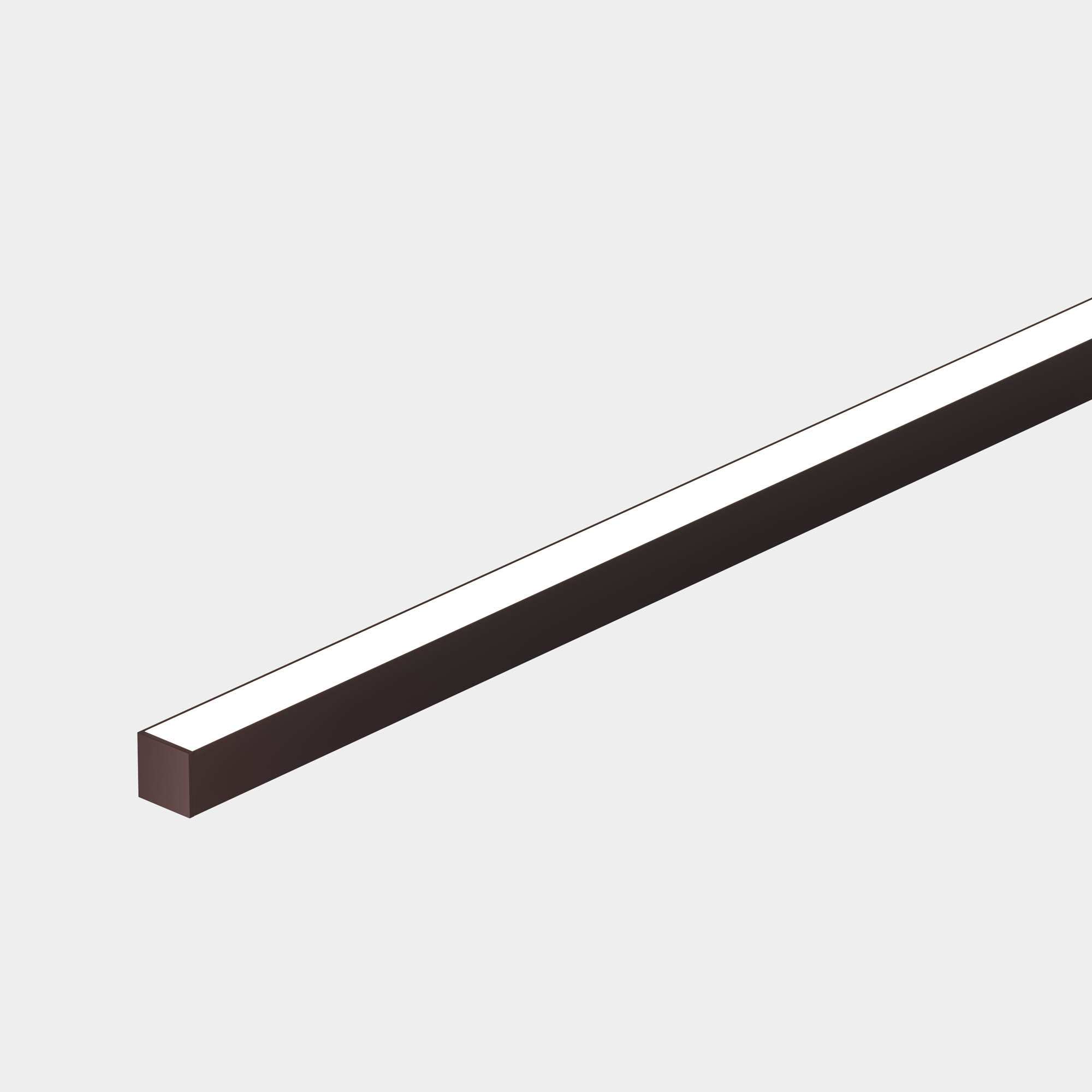

BZ .

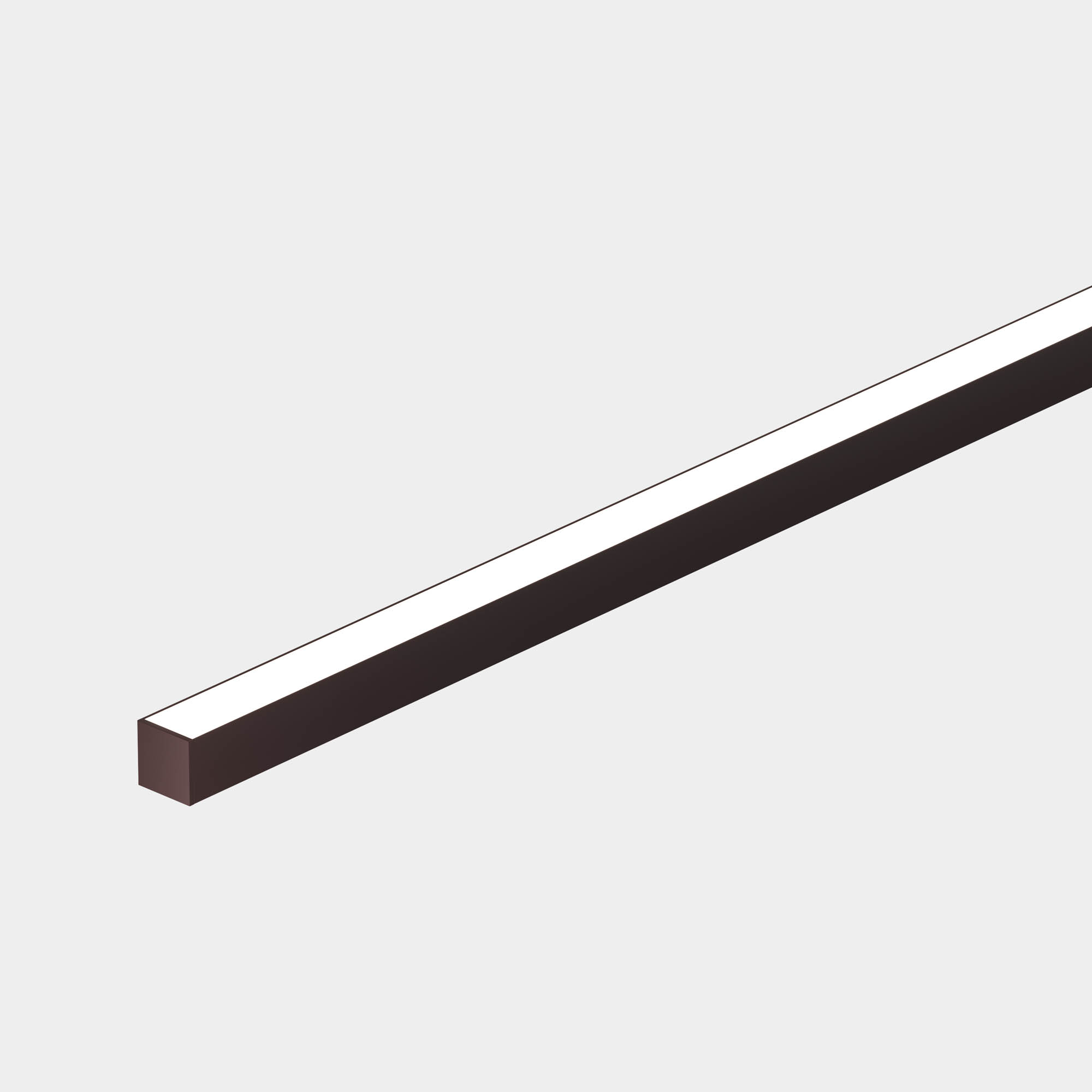

Bronze
WH .

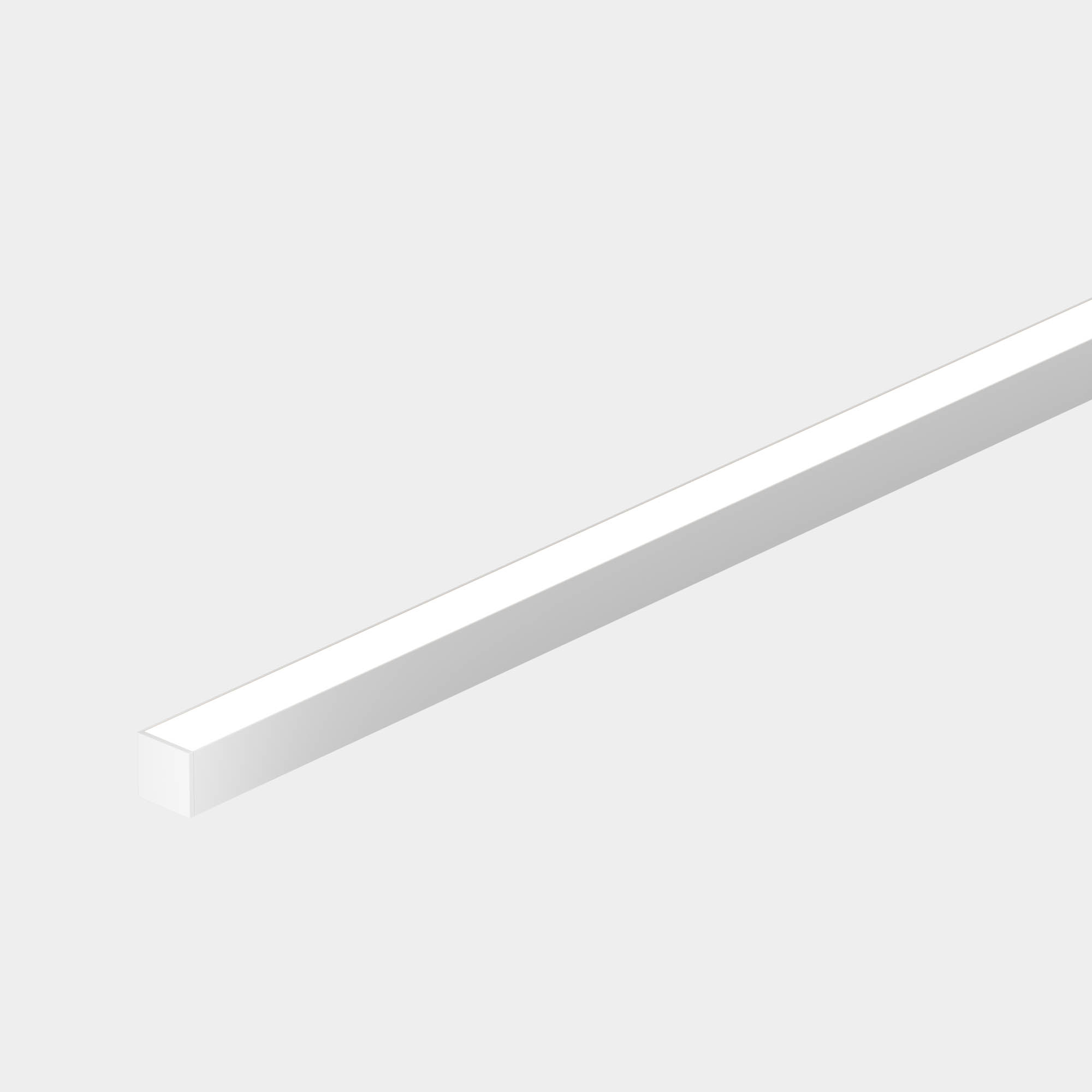

White

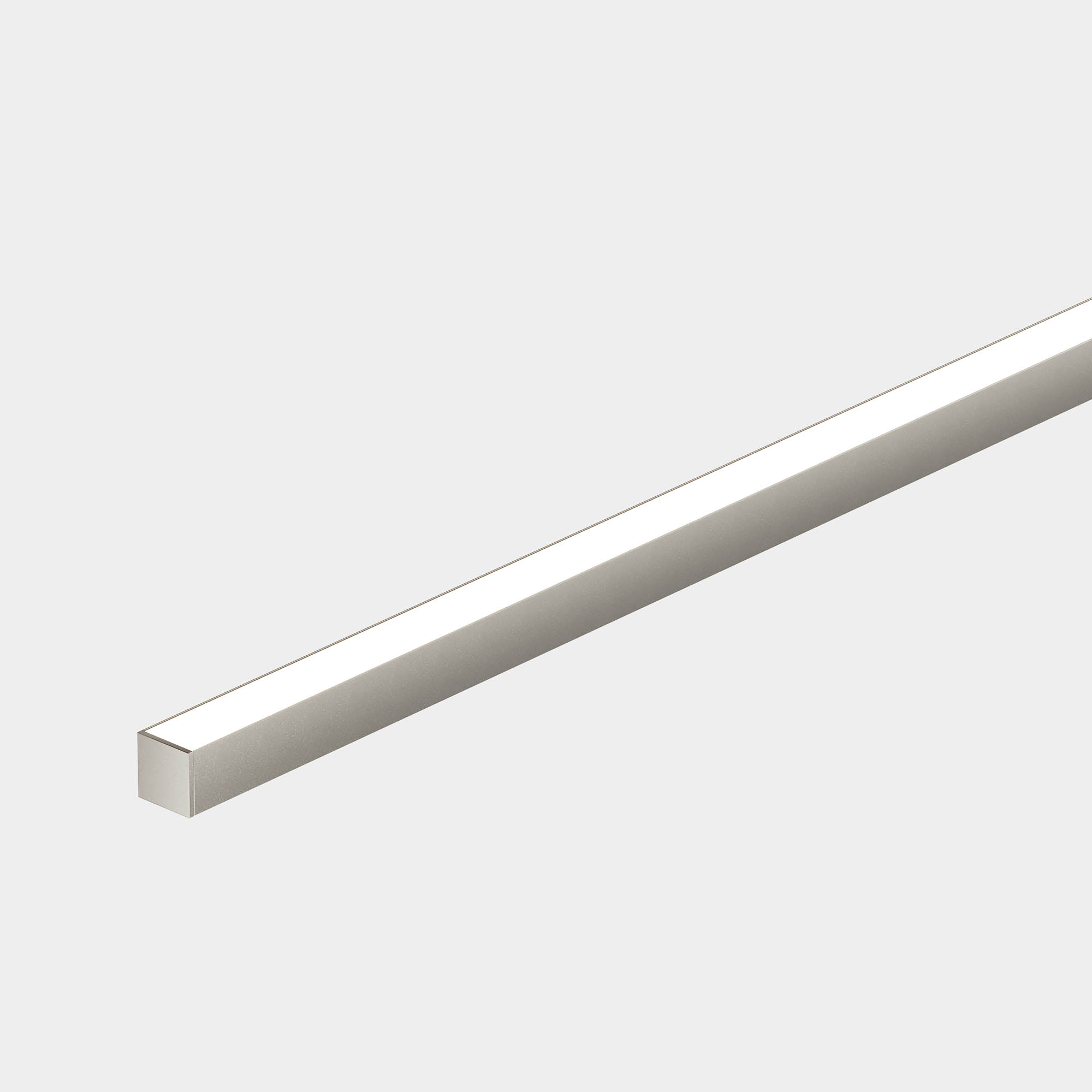

WN .
Warm Nickel
AB .

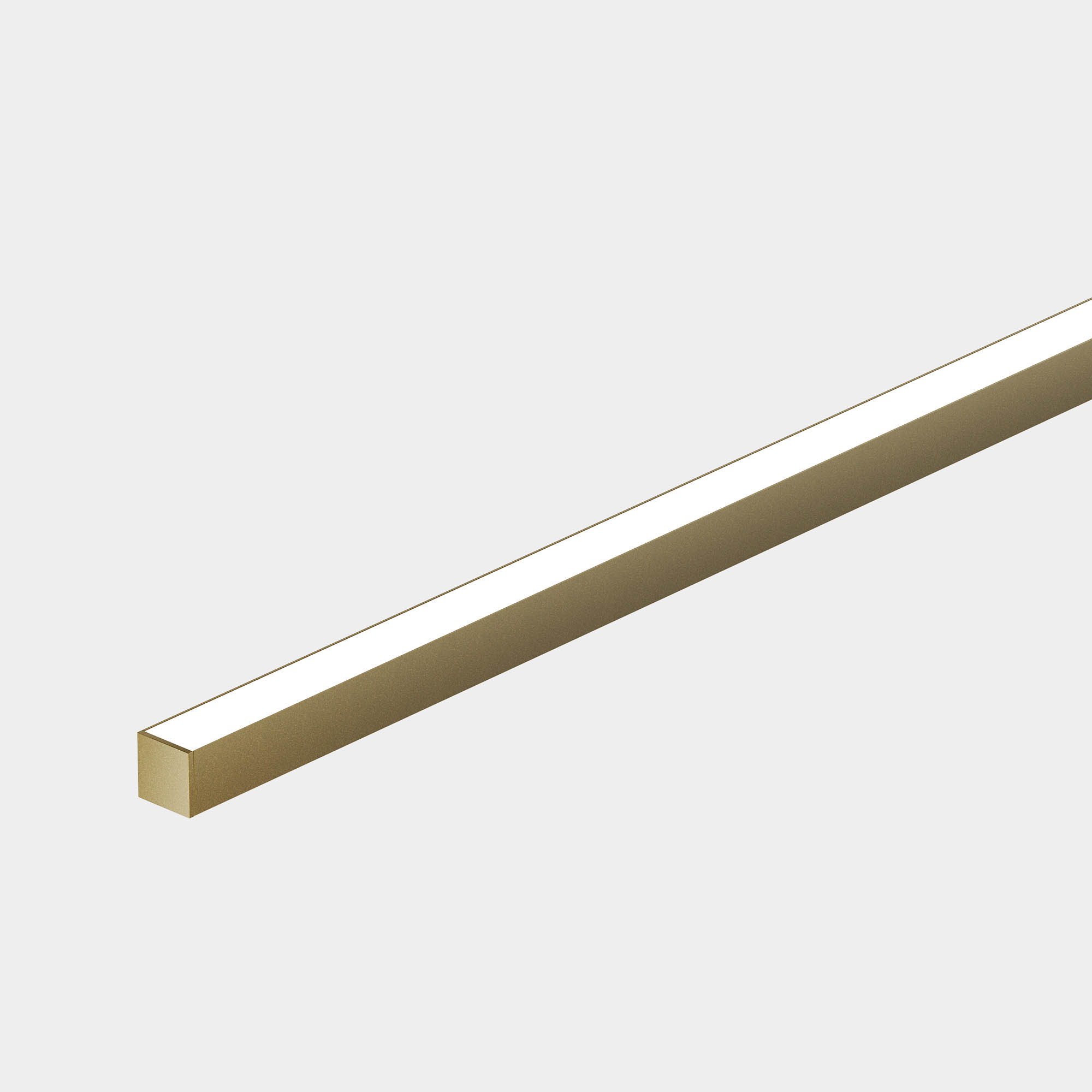

Aged Bronze
PG .

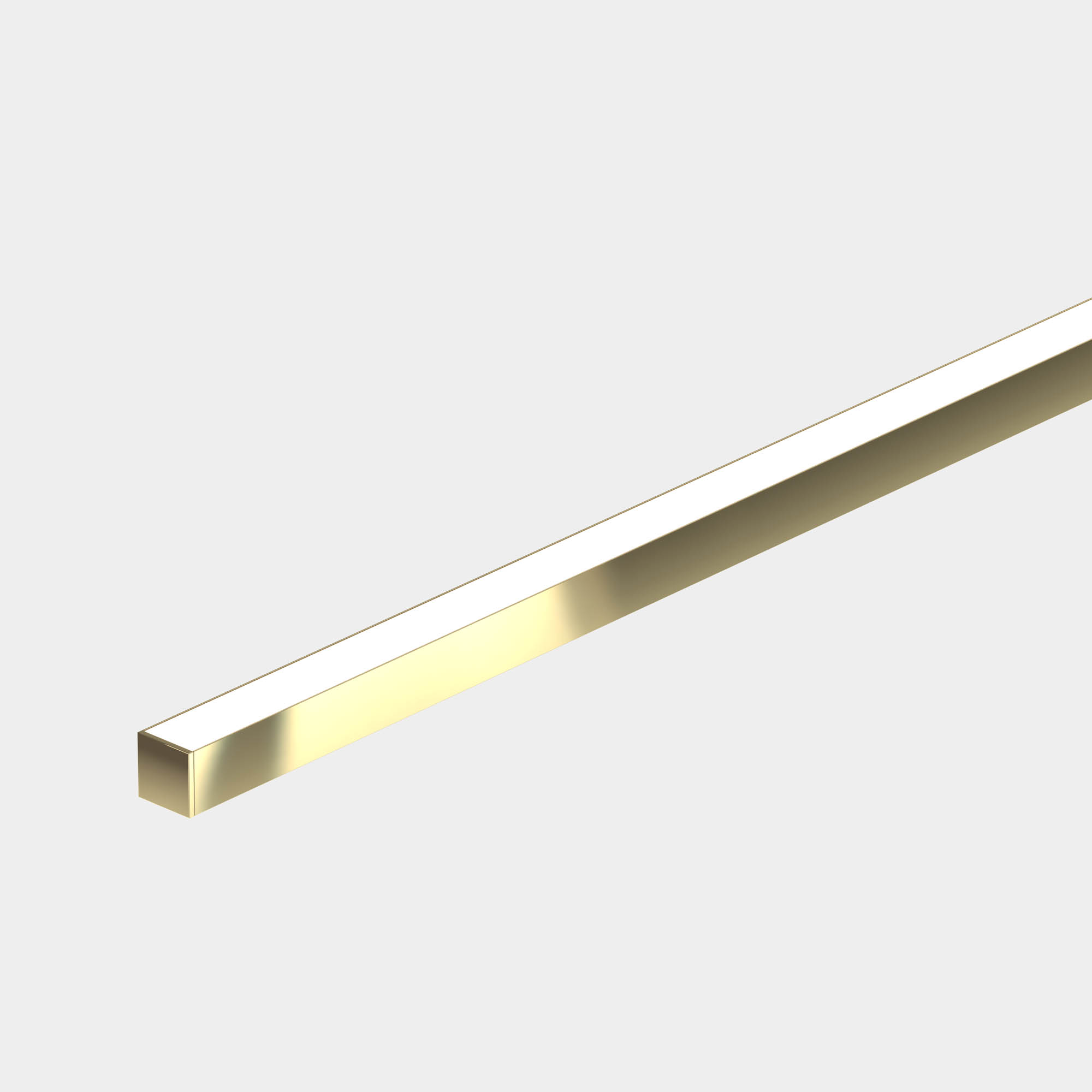

Polished Gold
CH .

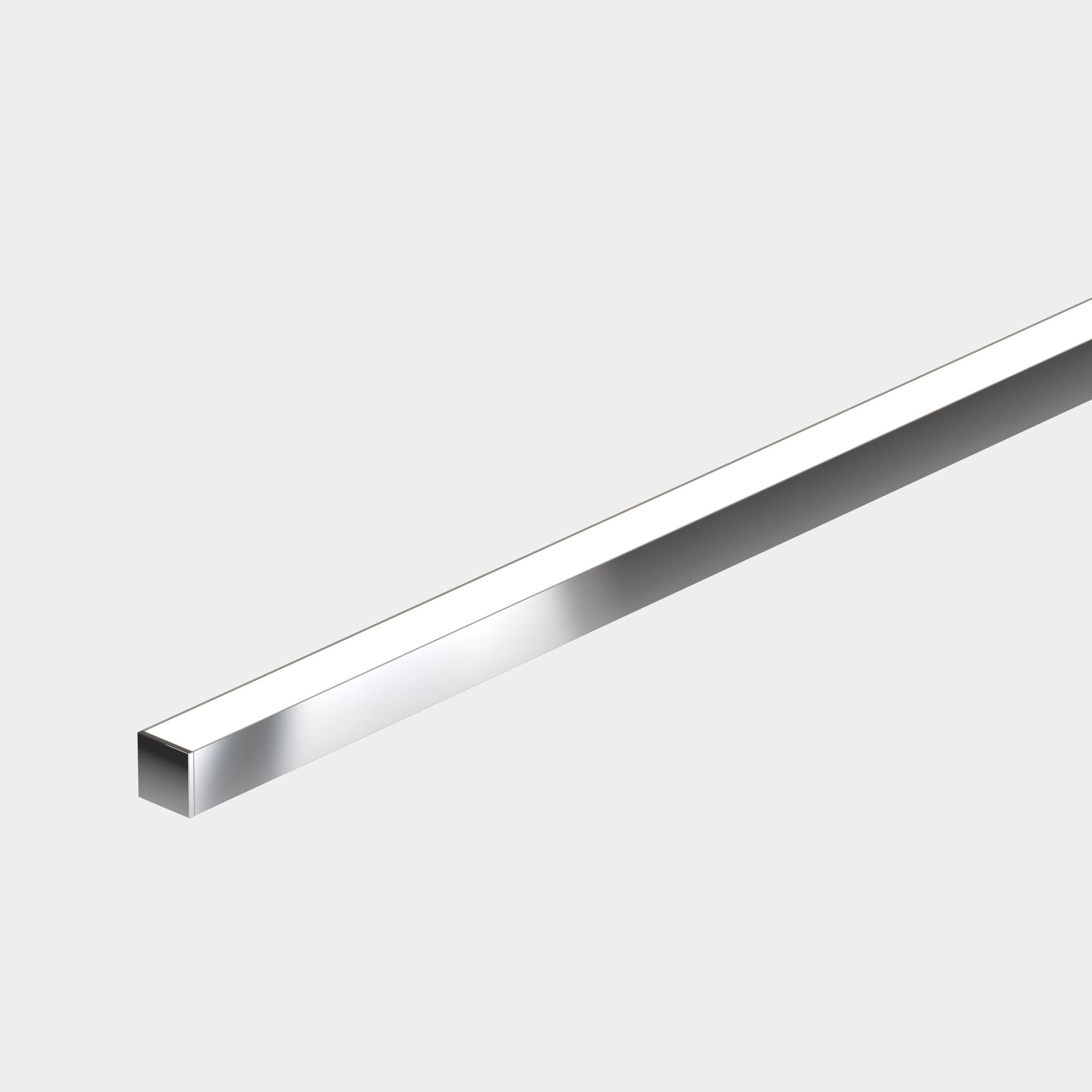

Chrome
8 - Feed Position
E .
End
B .
Back
S .
Side
9 - Power Feed
1 .
72" wire leads
1X2 .
72" wire leads at both ends
2 .
72" wire leads at one end and quick connect at other
3 .
Single quick connect
4 .
Dual quick connect
Quantity:
Download Specsheet
Please complete the configurator to download, or
download standard specsheet
.
